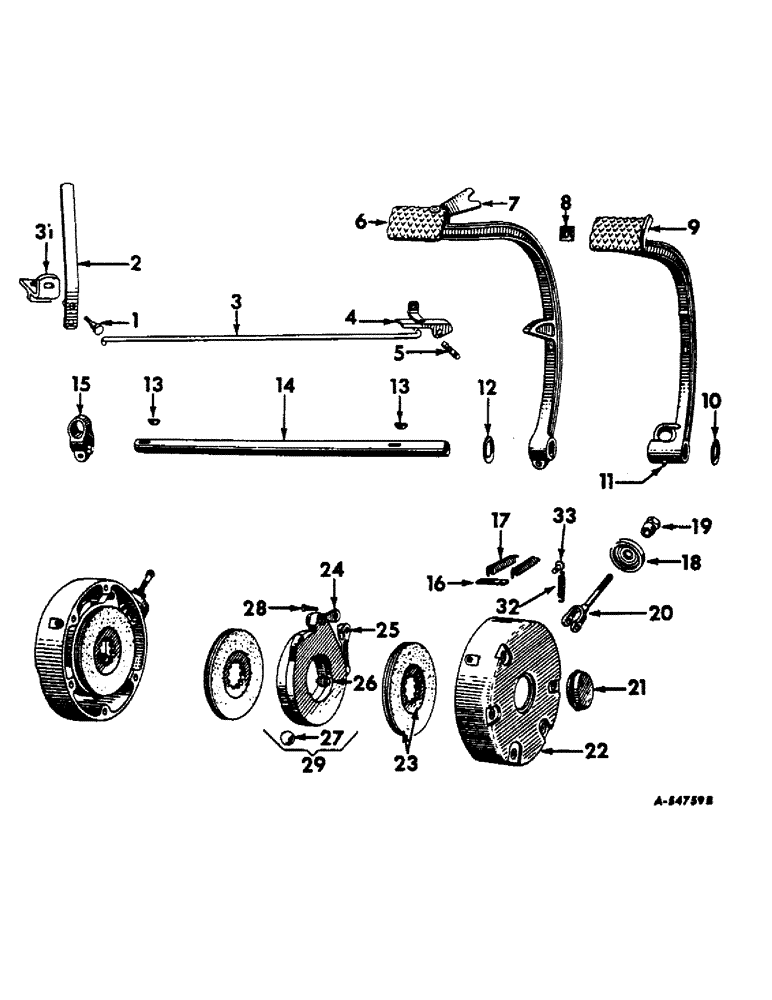

Запчасти Case IH 560 (216) - BRAKES, BRAKES AND CONNECTIONS, INTERNATIONAL 560 AND 660 SERIES (5.1) - BRAKES

1

361911R1

BOLT, pawl actuating lever pivot

1шт.

NUT, 1/4 NF

1шт.

WASHER, 1/4" lock

1шт.

WASHER, 17/64 x 5/8 x 18 ga.

2шт.

2

361601R11

LEVER ASSEMBLY, brake pedal pawl actuating

1шт.

3

361600R1

ROD, brake pedal pawl actuating (for tractors without swinging seat suspension)

1шт.

3

367783R1

ROD, brake pedal pawl actuating (for tractors with swinging seat suspension)

1шт.

PIN, 1/16 x 1/2" cotter

2шт.

4

361598R91

PAWL, brake pedal

1шт.

5

49209D

SHAFT

brake pedal pawl

1шт.

PIN, 1/8 x 1-1/4" cotter

1шт.

6

357352R11

PEDAL ASSEMBLY, LH brake composed of, (1) pedal 357352R1 (NSS), (1) plate 43751DB, (1) rivet 104087, (1) spring 51293D

1шт.

NUT, 7/16"

1шт.

SCREW, 7/16 x 2-1/4" hex-hd. cap

1шт.

WASHER, 7/16" lock

1шт.

7

43751DB

LATCH, PEDALS

PLATE, brake pedal lock

1шт.

RIVET, 1/4 x 1-1/4" rd-hd.

1шт.

8

51293D

SPRING

brake pedal lock plate tension

1шт.

9

370910R1

PEDAL, RH brake

1шт.

10

40435D

WASHER, brake pedal shaft

1шт.

11

273354

SHEAVE

FITTING, 3/16" straight drive type lubrication (optional with 443566)

1шт.

11

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16" straight drive type lubrication (optional with 273354)

1шт.

12

48983D

THRUST WASHER

brake pedal shaft thrust

2шт.

13

124552

SCREW

no. 13 ni-stl. Woodruff

2шт.

14

374850R1

SHAFT

brake pedal

1шт.

PIN, 3/16 x 1-1/2" cotter

1шт.

361784R1

SPACER, brake shaft (for tractors with hand operated over-center clutch)

1шт.

15

370874R1

LEVER

brake shaft

1шт.

NUT, 7/16"

1шт.

SCREW, 7/16 x 2-1/4" hex-hd. cap

1шт.

WASHER, 7/16" lock

1шт.

16

357045R1

ANCHOR

brake pedal return spring

1шт.

SCREW, 3/8 x 3/4" hex-hd. cap

1шт.

WASHER, 3/8" lock

1шт.

17

357164R1

SPRING

brake pedal return

2шт.

18

368299R1

INSULATOR

BOOT, enclosure

2шт.

19

368298R1

BALL

brake operating rod

2шт.

20

369066R1

ROD ASSY.

ROD, brake operating

2шт.

NUT, 3/8 NF

2шт.

PIN, 1/8 x 3/4" cotter

2шт.

103498

CLEVIS PIN,1/2" x 1.360"

PIN, 1/2 x 1-27/64" rod end

2шт.

21

357101R1

PLUG

brake housing cup International 560 series 501 to 2580 International 660 series, Serial Range: 501-2954

1шт.

21

172603

PLUG,Exp, 2 7/8"

brake housing (2-7/8" dia. expansion) International 560 series 2581 up International 660 series 2955 up

1шт.

22

369065R2

HOUSING, brake

2шт.

SCREW, 7/16 x 3-1/2" hex-hd. cap

10шт.

23

369079R92

PLATE

DISC ASSEMBLY, middle

4шт.

24

369237R1

LINK

actuating (plain)

2шт.

25

369236R91

LINK

actuating yoke

2шт.

26

357116R1

SPRING

extension

6шт.

27

16028R1

BALL

7/8" dia.

10шт.

28

369238R1

BOLT,3/8" - 24 x 1 3/8", HT

STUD, actuating disc

4шт.

NUT, 3/8 NF jam

4шт.

29

369080R91

DISC

ASSEMBLY, actuating composed of, (5) ball 16028R1, (2) disc (NSS), (1) link 369237R1, (1) link 369236R91, (2) nut 114494, (3) spring 357116R1, (2) stud 369238R1

2шт.

31

367781R11

BRACKET ASSEMBLY, release lever pivot (for tractors with swinging seat suspension)

1шт.

SCREW, 5/8 x 2-1/4" hex-hd. cap

1шт.

WASHER, 5/8" lock

1шт.

32

375676R1

SPRING

brake positioning

2шт.

33

375584R1

ANCHOR

brake positioning spring

2шт.
