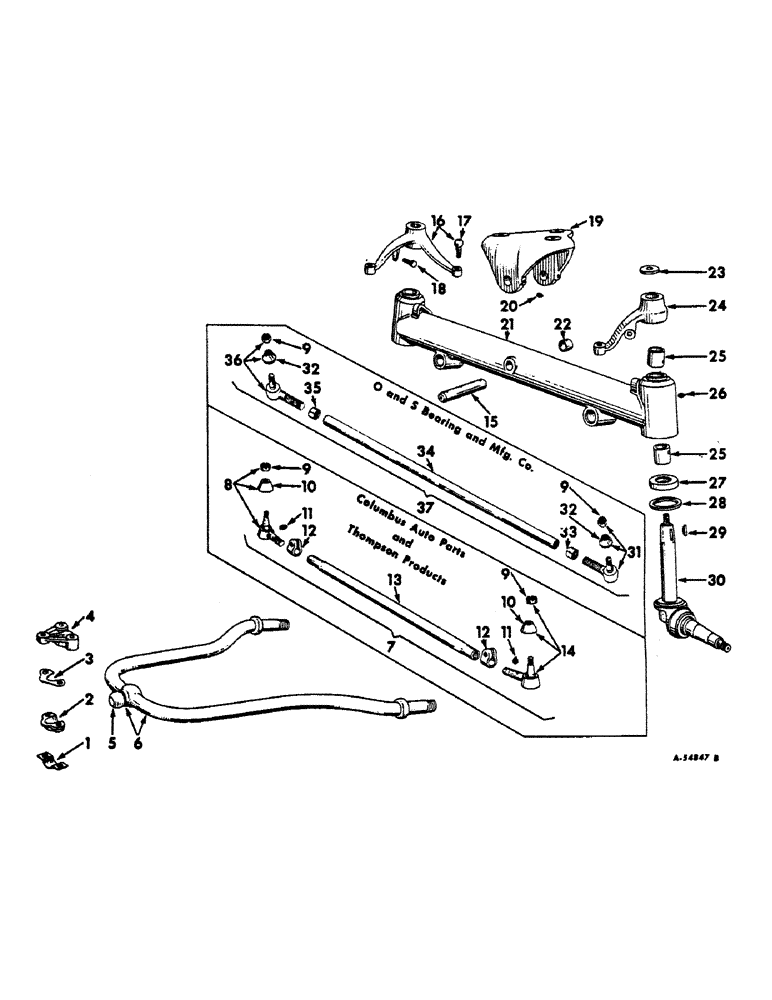

Запчасти Case IH 560 (186) - FRONT AXLE, FRONT AXLE AND STEERING CONNECTIONS, INTERNATIONAL 560 & 660 SERIES (04) - FRONT AXLE

1

365458R1

CLAMP

PLATE, stay rod ball socket cap lock

1шт.

2

365458R1

CLAMP

CAP, stay rod ball socket

1шт.

SCREW, 5/8 x 3" hex-hd. cap

2шт.

3

365457R1

SHIM

stay rod ball socket cap

1шт.

4

365459R1

SOCKET

stay rod ball

1шт.

SCREW, 5/8 x 1-5/8" hex-hd. cap

1шт.

WASHER, 5/8" lock

1шт.

5

10546D

BALL

stay rod

1шт.

6

370369R11

STAY ROD, w/two nuts, 427546 assembly

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8" jam

2шт.

7

363180R91

TIE ROD ASSEMBLY, (Thompson products) (optional with 363181R91) composed of, (2) clamp 358981R1, (1) end 360678R91, (1) end 361150R91, (2) nut 103028, (2) screw 181435, (1) tube 363182R1, (2) washer 114608

1шт.

7

363181R91

TIE ROD ASSEMBLY, (Columbus auto parts) (optional with 360180R91) composed of, (2) clamp 359985R1, (1) end 359981R91, (1) end 361147R91, (2) nut 103028, (2) screw 181435, (1) tube 363183R1, (2) washer 114608

1шт.

8

360678R91

END

ASSEMBLY, tie rod (RH thread) (Thompson products)

1шт.

8

359981R91

END

ASSEMBLY, tie rod (RH thread) (Columbus auto parts)

1шт.

9

358901R1

SLOTTED NUT

tie rod end (Thompson products) (see note)

2шт.

9

359983R1

NUT

tie rod end (Columbus auto parts) (see note)

2шт.

9

374548R1

SLOTTED NUT

tie rod end (IH) (see note)

2шт.

9

374701R1

NUT

tie rod end (O and S bearing and mfg. co.) (see note)

2шт.

PIN, 1/8 x 1-1/4" cotter

2шт.

10

358900R1

SEAL

COVER, tie rod end dust (Thompson products)

2шт.

10

359982R1

COVER

tie rod end dust (Columbus auto parts)

2шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Optional with 138322H) 1/8"-27 x .66 lg

2шт.

11

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, (Optional with 109461) 1/8"-27 x .66 lg

2шт.

12

358981R1

CLAMP, tie rod (threaded end) (Thompson products)

2шт.

12

359985R1

CLAMP

tie rod (threaded end) (Columbus auto parts)

2шт.

NUT, 1/2 NF

1шт.

SCREW, 1/2 NF x 2" hex-hd. cap

2шт.

WASHER, 1/2" lock

2шт.

13

363182R1

TUBE, tie rod (Thompson products)

1шт.

13

363183R1

TUBE, tie rod (Columbus auto parts)

1шт.

14

361150R91

END ASSEMBLY, tie rod (LH thread) (Thompson products)

1шт.

14

361147R91

END ASSEMBLY, tie rod (LH thread) (Columbus auto parts)

1шт.

15

363176R21

PIN, w/plug, 103883 assembly, front axle pivot

1шт.

PLUG, 1/8" slotted-hdls. pipe

1шт.

16

363276R11

ARM ASSEMBLY, steering knuckle, LH

1шт.

NUT, 3/4 NF

1шт.

WASHER, 3/4" lock

1шт.

17

54196DA

BALL

steering knuckle arm

1шт.

18

58529D

SCREW, steering knuckle arm stop

2шт.

NUT, 1/2 NF jam

2шт.

19

363215R1

BOLSTER, lower

1шт.

NUT, 3/8"

1шт.

SCREW, 3/8 x 4-1/2" hex-hd. cap

1шт.

361856R1

SCREW

5/8 x 1-3/4" hex-hd. cap

3шт.

WASHER, 3/8" lock

1шт.

WASHER, 5/8" lock

3шт.

20

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Front axle pivot) (Optional with 138322H) 1/8"-27 x .66 lg

1шт.

20

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, (Front axle pivot) (optional with 109461) 1/8"-27 x .66 lg

1шт.

21

370365R11

AXLE, w/two bushing, 48841D and four bushing, 358958R2 assembly, front (International 560 series)

1шт.

21

372209R11

AXLE, w/two bushings, 48841D and 4 bushings, 358958R2 assembly, front (International 660 series)

1шт.

22

48841D

BUSHING,31.03mm ID x 34.62mm OD x 31.75mm L

front axle pivot pin

2шт.

23

363179R1

WASHER, steering knuckle arm retaining

2шт.

24

363277R1

ARM, steering knuckle, RH

1шт.

NUT, 3/4 NF

1шт.

WASHER, 3/4" lock

1шт.

25

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

steering knuckle pivot pin

4шт.

26

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Steering knuckle pivot) (Optional with 138322H) 1/8"-27 x .66 lg

2шт.

26

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, (Steering knuckle pivot) (optional with 109461) 1/8"-27 x .66 lg

2шт.

27

369131R91

THRUST BEARING

steering knuckle pivot thrust (International 560 series)

2шт.

27

357349R91

THRUST BEARING,42.53mm ID x 81.74mm OD x 19.18mm W

steering knuckle pivot thrust (International 660 series)

2шт.

28

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle pivot felt (International 560 series)

2шт.

28

55412D

WASHER

WASHER, steering knuckle pivot felt (International 660 series)

2шт.

28

374387R1

WASHER

steering knuckle pivot felt (International 660 series tractors with steel or heavy duty wheels)

2шт.

29

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

30

370367R11

KNUCKLE ASSEMBLY, steering (International 560 series) composed of, (1) knuckle 370367R1 (NSS), (1) oil seal 370254R91, (1) pin 363178R1 (NSS), (1) shield 48701D

2шт.

30

363177R91

KNUCKLE ASSEMBLY, steering (International 660 series) composed of, (1) knuckle 358960R1 (NSS), (1) oil seal 48704DA, (1) pin 363178R1 (NSS), (1) shield 48701D, (1) spacer 51901D

2шт.

30

374386R11

KNUCKLE ASSEMLBY, steering (International 660 series tractors with steel or heavy duty wheels) composed of, (1) knuckle 374386R1 (NSS), (1) oil seal 370254R91, (1) pin 363178R1 (NSS), (1) shield 48701D

2шт.

31

374063R91

NUT

END ASSEMBLY, tie rod (LH thread)

1шт.

32

374700R1

COVER

tie rod end dust

1шт.

33

374061R1

JAM NUT

jam (LH thread)

1шт.

34

374060R1

TUBE, tie rod

1шт.

35

374062R1

JAM NUT

NUT, jam (RH thread)

1шт.

36

374064R91

END ASSEMBLY, tie rod (RH thread)

1шт.

37

374059R91

TIE ROD ASSEMBLY, (O and S bearing mfg. co.) (optional with 363180R91 and 363181R91)

1шт.
