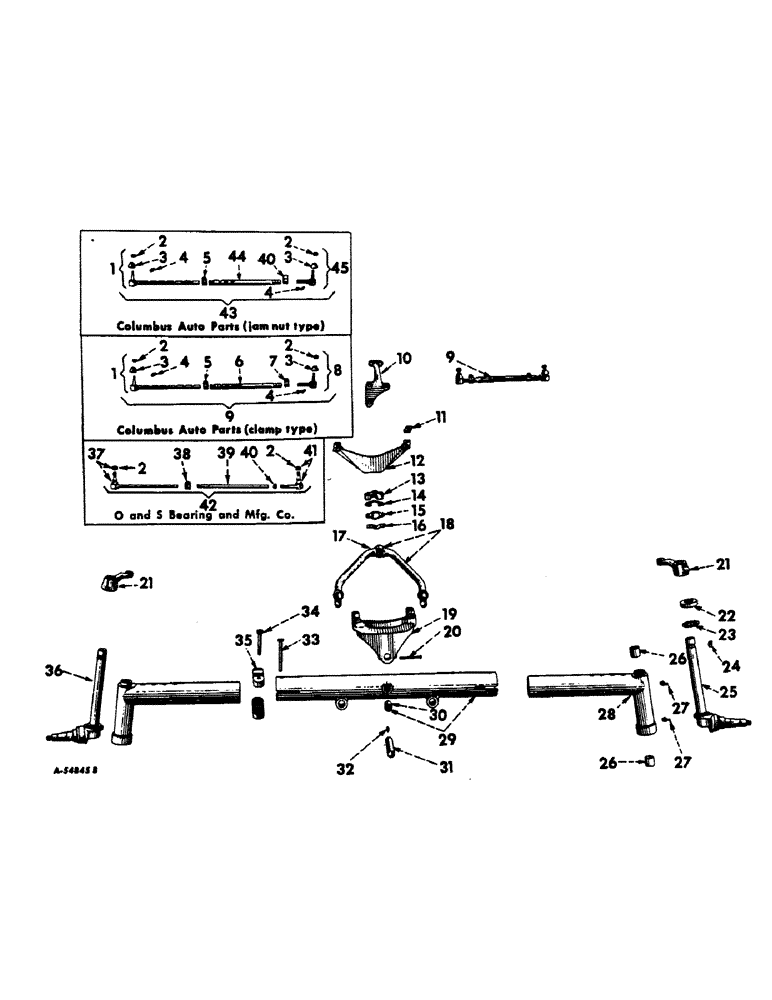

Запчасти Case IH 560 (181) - FRONT AXLE, ADJUSTABLE WIDE TREAD FRONT AXLE, FOR ALL FARMALL 560 SERIES EXCEPT HI-CLEAR MODELS (04) - FRONT AXLE

ATTACHMENT, adjustable wide tread front axle (370789R91)

1шт.

1

359984R91

ROD

TIE ROD ASSEMBLY, LH, composed of (1) cover 359982R1, (1) end (NSS), (1) nut 359983R1, (1) pin 108643

2шт.

2

374701R1

NUT

tie rod end (O and S bearing and mfg. co.) (optional with 359983R1)

4шт.

2

359983R1

NUT

tie rod end (Columbus auto parts) (optional with 374701R1)

4шт.

PIN, 5/32 x 1-3/8" cotter

4шт.

3

359982R1

COVER

tie rod end dust

4шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Optional with 138322H) 1/8"-27 x .66 lg

4шт.

4

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, (Optional with 109461) 1/8"-27 x .66 lg

4шт.

5

359986R1

CLAMP

tie rod (adjustable end)

2шт.

NUT, 1/2 NF

2шт.

SCREW, 1/2 NF x 2" hex-hd. cap

2шт.

WASHER, 1/2" external tooth lock

2шт.

6

359980R1

TUBE

tie rod

2шт.

7

359985R1

CLAMP

tie rod (threaded end)

2шт.

NUT, 1/2 NF

2шт.

SCREW, 1/2 NF x 2" hex-hd. cap

2шт.

WASHER, 1/2" external tooth lock

2шт.

8

359981R91

END

ASSEMBLY, tie rod (RH thread) composed of, (1) cover 359982R1, (1) end (NSS), (1) nut 359983R1, (1) pin 108643

2шт.

9

359569R91

TIE ROD ASSEMBLY, (Columbus auto parts) (optional with 375615R91) (order 382412R91)

2шт.

10

358970R1

ARM

steering gear

1шт.

SCREW, 3/4 NF x 2-1/4" hex-hd. cap

4шт.

11

51693D

BAR

WASHER, stay rod ball socket support bevel

4шт.

12

370692R2

SUPPORT

stay rod ball socket

1шт.

NUT, 1/2 NF

4шт.

SCREW, 1/2 NF x 2" hex-hd. cap

4шт.

13

9020D

SOCKET

stay rod ball

1шт.

SCREW, 1/2 x 2" hex-hd. cap

1шт.

14

60762D

SHIM

stay rod ball socket cap

4шт.

15

60763DB

CYLINDER END CAP

CAP, stay rod ball socket

1шт.

SCREW, 1/2 x 3" hex-hd. cap

2шт.

16

358345R1

PLATE ASSY.

PLATE, stay rod ball socket cap lock

1шт.

17

10546D

BALL

stay rod

1шт.

18

360405R11

ROD

STAY ROD ASSEMBLY

1шт.

NUT, 1-3/8 NF jam

2шт.

WASHER, 1-3/8" light lock

2шт.

19

358969R2

BOLSTER, lower

1шт.

SCREW, 3/4 x 2-1/2" hex-hd. cap

2шт.

SCREW, 3/4 x 3-1/2" hex-hd. cap

2шт.

20

Q35357

PIN, front axle pivot locking

1шт.

PIN, 1/8 x 3/4" cotter

1шт.

21

358971R1

ARM, steering knuckle

2шт.

NUT, 5/8 NF

2шт.

SCREW, 5/8 NF x 3" hex-hd. cap

2шт.

22

369131R91

THRUST BEARING

steering knuckle pivot thrust

2шт.

23

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle pivot felt

2шт.

24

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, no. 127 Woodruff (steering knuckle arm)

2шт.

25

370791R91

KNUCKLE ASSEMBLY steering RH composed of, (1) knuckle 370367R1 (NSS), (1) oil seal 370254R91, (1) pin 372409R1 (NSS), (1) shield 48701D

1шт.

26

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

steering knuckle pivot

4шт.

27

110161

FITTING, 3/16" straight drive type lubrication (steering knuckle pivot pin) (optional with 125617)

4шт.

27

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16" straight drive type lubrication (steering knuckle pivot pin) (optional with 110161)

4шт.

28

370689R11

EXTENSION

w/two bushings, 358958R2

1шт.

ASSEMBLY, front axle

2шт.

29

358976R21

FRONT AXLE

AXLE, w/two bushings, 48841D assembly, front (for service replacement of 358976R11, order pin, 358978R2 and fitting, 17048R91)

1шт.

30

48841D

BUSHING,31.03mm ID x 34.62mm OD x 31.75mm L

front axle pivot pin

2шт.

31

358978R2

AXLE PIN,31.29mm OD x 217.49mm L

PIN, front axle pivot

1шт.

32

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight (Front axle pivot pin) (Optional with 271287) 501 to 51971 1/4"-28 NPT x .54" lg

1шт.

32

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight (Front axle pivot pin) (Optional with 109454) 501 to 51971 1/4"-28 NPT x .54" lg

1шт.

32

17048R91

FITTING, 1/8" straight lubrication (front axle pivot pin) (optional with 17049R91) 51972 up

1шт.

32

17049R91

LUBE NIPPLE,67.5 Degree, 1/8"-27 NPT x 1.03" lg, Leakproof

FITTING, 1/8" straight lubrication (front axle pivot pin) (optional with 17048R91) 51972 up

1шт.

33

350557R1

PIN

front axle clamp

2шт.

PIN, 1/4 x 1-1/2" cotter

2шт.

34

350558R1

BOLT

front axle clamp

4шт.

NUT, 3/4 NF

4шт.

WASHER, 3/4" lock

4шт.

35

350556R1

CLAMP

front axle

4шт.

36

370790R91

KNUCKLE ASSEMBLY, steering LH composed of, (1) knuckle 370367R1 (NSS), (1) oil seal 370254R91, (1) pin 372409R1 (NSS), (1) shield 48701D

1шт.

37

375618R91

END ASSEMBLY, tie rod (adjustable)

2шт.

38

375620R1

CLAMP

tie rod

2шт.

NUT, 1/2 NF

2шт.

SCREW, 1/2 NF x 2-1/2" cap

2шт.

WASHER, 1/2" lock

2шт.

WASHER, 17/32 x 1-1/16" x .095 ga

2шт.

39

375619R1

TUBE, tie rod 0.948 - 1.06" ID, .333" OD, 16.75" Length

2шт.

40

374062R1

JAM NUT

NUT, jam

2шт.

41

384006R91

END

ASSEMBLY, tie rod (threaded)

2шт.

42

375615R91

TIE ROD ASSEMBLY, (O and S bearing and mfg. co.) (optional with 382412R91)

2шт.

43

382412R91

ROD

TIE ROD ASSEMBLY, (Columbus auto parts) (optional with 375615R91)

2шт.

44

382413R1

TUBE, tie rod 0.937" ID, .333" OD, 16.812" Length

2шт.

45

382414R91

END

ASSEMBLY, tie rod (RH thread) composed of, (1) cover 359982R1, (1) end (NSS), (1) nut 359983R1

2шт.

G15215

ROLLER BEARING

CONE, front wheel inner bearing (illustrated with "front wheels")

2шт.
