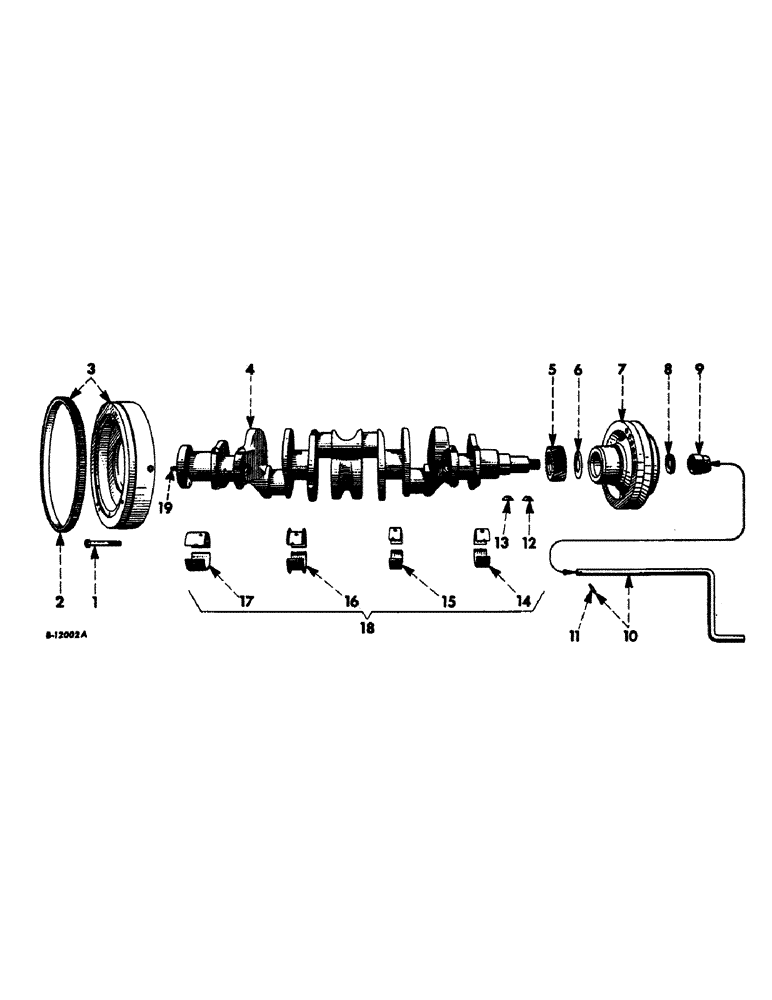

Запчасти Case IH 560 (035) - DIESEL ENGINE, CRANKSHAFT, FLYWHEEL AND BEARINGS (01) - ENGINE

1

9409050

BOLT,Hex, 7/16" - 20 x 3", Gr 8

, Serial Range: flywheel-crankshaft

6шт.

2

266142R1

GEAR

flywheel ring

1шт.

3

278273R11

FLYWHEEL ASSEMBLY

1шт.

4

320188R92

CRANKSHAFT

ASSEMBLY, (standard) D28244822 up, composed of (1) bearing 367276R91, (1) bearing 367279R91, (1) bearing 332267R91, (1) bearing 367285R91, (6) bearing 367408R11, (1) crankshaft 320185R1 (NSS), (1) pin 82970R1

1шт.

4

320186R91

CRANKSHAFT, w/bearing field package (undersize) (consists of six connecting rod bearings, four crankshaft bearings and crankshaft)

1шт.

4

320186R91

CRANKSHAFT, w/bearing field package (undersize) (consists of six connecting rod bearings, four crankshaft bearings and crankshaft)

1шт.

5

367272R1

PINION

GEAR, crankshaft

1шт.

6

71763R2

DEFLECTOR

SLINGER, crankshaft oil

1шт.

7

338952R91

PULLEY

VIBRATION DAMPER ASSEMBLY

1шт.

8

70109R1

WASHER

starting crank nut

1шт.

9

367273R1

NUT

starting crank

1шт.

9

V84199

NUT,1"-14, Thin

crankshaft (International 560 and 660 tractors with front power take-off pulley)

1шт.

10

371207R11

CRANK ASSEMBLY, starting

1шт.

11

371994R1

PIN, starting crank

1шт.

12

117984

BUCKET TOOTH KEY

KEY, no. 23 Woodruff (vibration damper)

1шт.

13

103462

KEY

no. 13 Woodruff (crankshaft gear)

1шт.

14

367276R91

BEARING LINER

BEARING ASSEMBLY, crankshaft front (2 halves) (standard)

1шт.

14

367300R91

CRANKSHAFT BEARING

BEARING ASSEMBLY, crankshaft front (2 halves) (.002" undersize)

1шт.

14

376670R91

BEARING ASSY

BEARING ASSEMBLY, crankshaft front (2 halves) (.010" undersize)

1шт.

14

376683R91

BEARING ASSY

BEARING ASSEMBLY, crankshaft front (2 halves) (.020" undersize)

1шт.

14

367288R91

BEARING ASSY

ASSEMBLY, crankshaft front (2 halves) (.030" undersize)

1шт.

15

367279R91

BEARING ASSY,45.95mm ID x 50.8mm OD x 27.33mm W

ASSEMBLY, crankshaft intermediate front (2 halves) (standard)

1шт.

15

367303R91

BEARING ASSY

BEARING ASSEMBLY, crankshaft intermediate front (2 halves) (.002" undersize)

1шт.

15

376673R91

BEARING ASSY

BEARING ASSEMBLY, crankshaft intermediate front (2 halves) (.010" undersize)

1шт.

15

376686R91

BEARING ASSY

BEARING ASSEMBLY, crankshaft intermediate front (2 halves) (.020" undersize)

1шт.

15

367291R91

BEARING

ASSEMBLY, crankshaft intermediate front (2 halves) (.030" undersize)

1шт.

16

367282R91

BEARING ASSY,90.4mm ID x 95.25mm OD x 38.35mm W

ASSEMBLY, crankshaft intermediate rear (2 halves) (standard), Serial Range: D252501-44821

1шт.

16

367306R91

BEARING ASSY

BEARING ASSEMBLY, crankshaft intermediate rear (2 halves) (.002" undersize), Serial Range: D282501-44821

1шт.

16

376676R91

JOURNAL

BEARING ASSEMBLY, crankshaft intermediate rear (2 halves) (.010" undersize), Serial Range: D282501-44821

1шт.

16

376689R91

BEARING ASSY

BEARING ASSEMBLY, crankshaft intermediate rear (2 halves) (.020" undersize)

1шт.

16

367294R91

BEARING ASSY

ASSEMBLY, crankshaft intermediate rear (2 halves) (.030" undersize), Serial Range: D282501-44821

1шт.

16

332267R91

BEARING SET

BEARING ASSEMBLY, crankshaft intermediate rear (2 halves) (standard) D28244822 up

1шт.

16

332273R91

BEARING SET

ASSEMBLY, crankshaft intermediate rear (2 halves) (.002" undersize) D28244822 up

1шт.

16

332276R91

BEARING SET

ASSEMBLY, crankshaft intermediate rear (2 halves) (.010" undersize) D28244822 up

1шт.

16

332279R91

BEARING SET

ASSEMBLY, crankshaft intermediate rear (2 halves) (.002" undersize) D28244822 up

1шт.

16

332270R91

BEARING SET

ASSEMBLY, crankshaft intermediate rear (2 halves) (.030" undersize) D28244822 up

1шт.

17

367285R91

BEARING

ASSEMBLY, crankshaft rear (2 halves) (standard)

1шт.

17

367309R91

BEARING ASSY

ASSEMBLY, crankshaft rear (2 halves) (.002" undersize)

1шт.

17

376679R91

BEARING ASSY

BEARING ASSEMBLY, crankshaft rear (2 halves) (.010" undersize)

1шт.

17

376692R91

BEARING ASSY

BEARING ASSEMBLY, crankshaft rear (2 halves) (.020" undersize)

1шт.

17

367297R91

BEARING ASSY

ASSEMBLY, crankshaft rear (2 halves) (.030" undersize)

1шт.

18

367275R91

KIT

BEARING SET, crankshaft (standard) D282501 to 44821, composed of (1) bearing 367276R91, (1) bearing 367279R91, (1) bearing 367282R91, (1) bearing 367285R91

1шт.

18

377286R91

KIT

BEARING SET, crankshaft (.002" undersize) D282501 to 44821, composed of (1) bearing 367300R91, (1) bearing 367303R91, (1) bearing 367303R91, (1) bearing 367309R91

1шт.

18

376669R91

KIT

BEARING SET, crankshaft (.010" undersize) D282501 to 44821, composed of (1) bearing 376670R91, (1) bearing 376673R91, (1) bearing 376676R91, (1) bearing 376679R91

1шт.

18

376682R91

KIT

BEARING SET, crankshaft (.020" undersize) D282501 to 44821, composed of (1) bearing 376683R91, (1) bearing 376686R91, (1) bearing 376689R91, (1) bearing 376692R91

1шт.

18

372444R91

KIT

BEARING SET, crankshaft (.030" undersize) D282501 to 44821, composed of (1) bearing 367288R91, (1) bearing 367291R91, (1) bearing 367294R91, (1) bearing 367297R91

1шт.

18

382357R91

CRANKSHAFT BEARING

BEARING SET, crankshaft (standard) D28244822 up, composed of (1) bearing 332267R91, (1) bearing 367276R91, (1) bearing 367279R91, (1) bearing 367285R91

1шт.

18

382359R91

BEARING

SET, crankshaft (.002" undersize) D28244822 up, composed of (1) bearing 332273R91, (1) bearing 367300R91, (1) bearing 367303R91, (1) bearing 367309R91

1шт.

18

382360R91

CRANKSHAFT BEARING

BEARING SET, crankshaft (.010" undersize) D28244822 up, composed of (1) bearing 332276R91, (1) bearing 376670R91, (1) bearing 376673R91, (1) bearing 376679R91

1шт.

18

382361R91

BEARING SET

crankshaft (.020" undersize) D28244822 up, composed of (1) bearing 332279R91, (1) bearing 376683R91, (1) bearing 376686R91, (1) bearing 376692R91

1шт.

18

382358R91

BEARING

SET, crankshaft (.030" undersize) D28244822 up, composed of (1) bearing 332270R1, (1) bearing 367288R91, (1) bearing 367291R91, (1) bearing 367297R91

1шт.

19

82970R1

STUD

PIN, flywheel to crankshaft dowel

1шт.
