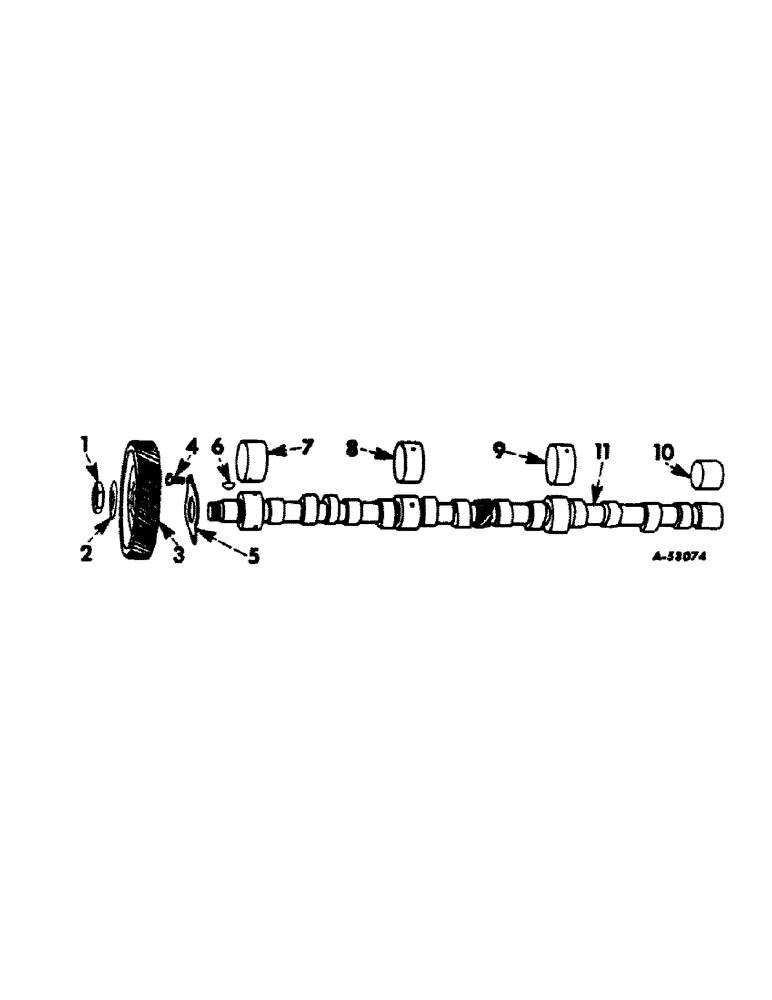

Запчасти Case IH 560 (034) - DIESEL ENGINE, CAMSHAFT AND RELATED PARTS (01) - ENGINE

1

16026DB

NUT

camshaft gear

1шт.

2

16025D

SHIM

LOCK, camshaft gear nut

1шт.

3

367240R1

PINION

GEAR, camshaft

1шт.

4

70425R1

CAPSCREW,Hex, 3/8"- 16 x 3/4"

BOLT, camshaft thrust plate

2шт.

5

35650HA

FLANGE

PLATE, camshaft thrust

1шт.

6

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

camshaft gear (Woodruff no. 91)

1шт.

7

70259R2

BUSHING

camshaft front

1шт.

8

70260R1

BUSHING,53.25mm ID x 56.54mm OD x 27.23mm L

camshaft intermediate front

1шт.

9

70261R2

BUSHING,23.02mm ID x 55.92mm OD x 27.23mm L

camshaft intermediate rear

1шт.

10

70262R1

CAMSHAFT BEARING,37.69mm ID x 41.45mm OD x 33.58mm W

BUSHING, camshaft rear

1шт.

11

367229R1

SHAFT

CAMSHAFT

1шт.
