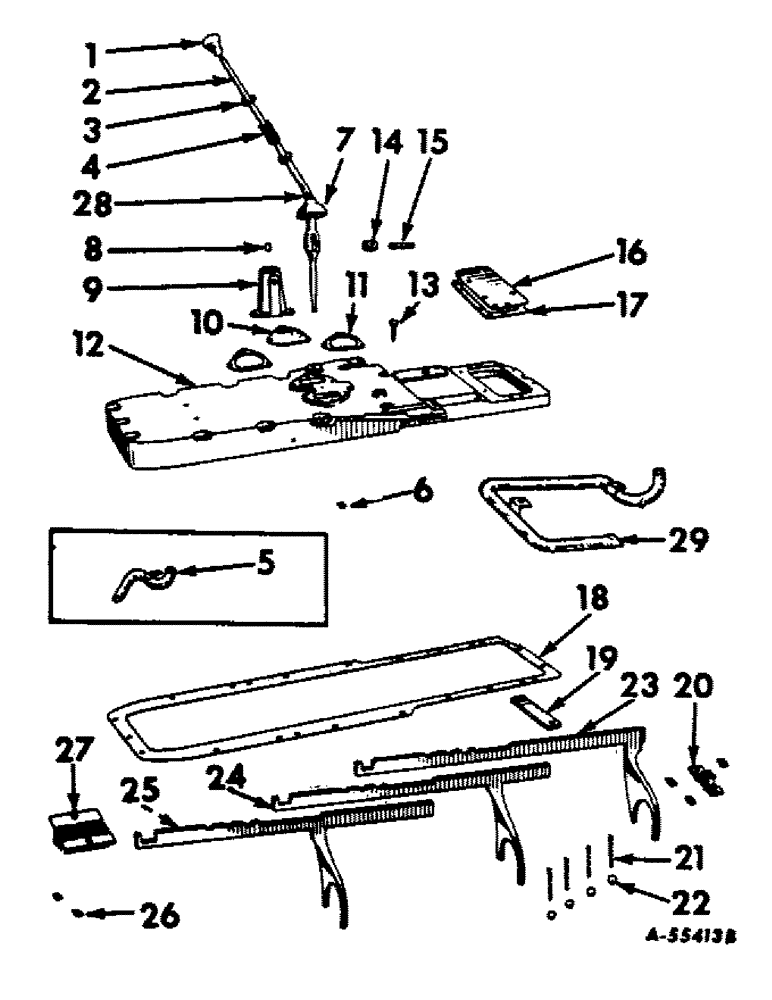

Запчасти Case IH 560 (151) - REAR FRAME & DRIVING MECHANISMS, GEAR SHIFT MECHANISM & REAR FRAME COVER, INTL 560 & 660 SERIES Rear Frame & Driving Mechanisms

1

53717DA

BUTTON

KNOB, gear shift lever

1шт.

2

361801R11

LEVER, gear shift

1шт.

3

557270R1

WASHER

STOP, gear shift lever spring

2шт.

PIN, 3/16 x 1-1/4" cotter

1шт.

4

29547D

SPRING

gear shift lever

1шт.

5

375437R11

TUBE ASSEMBLY, oil return International 560 series 501 to 5477 International 660 series, Serial Range: 501-6815

1шт.

SCREW, 3/8 x 3/4" hex-hd. cap

1шт.

6

59473DA

LOCK

oil return tube bracket bolt

1шт.

7

355889R2

SHIELD

gear shift lever swivel housing (order package, 375359R91) International 560 series, 501 to 3251 International 660 series, Serial Range: 501-3674

1шт.

7

355889R3

SHIELD

gear shift lever swivel housing International 560 series, 3252 up International 660 series, 3675 up

1шт.

8

172529

PLUG

5/8" expansion (gear shift lever swivel shaft hole)

2шт.

9

361569R21

HOUSING, w/two plugs, 172529 assembly, gear shift swivel (order package, 375356R92) International 560 series, 501 to 3251 International 660 series, Serial Range: 501-3674

1шт.

9

361569R31

HOUSING, w/two plugs, 172529 assembly, gear shift swivel (order package, 375356R92) International 560 series, 3252 up International 660 series, 3675 up

1шт.

SCREW, 3/8 x 1" hex- hd. cap

3шт.

WASHER, 3/8" lock

3шт.

10

361802R1

COVER, gear shift opening

1шт.

SCREW, 3/8 x 3/4" hex-hd. cap

3шт.

11

361687R1

GASKET

gear shift opening cover

2шт.

12

370423R21

COVER, w/screw assembly, rear frame

1шт.

PIN, 1/8 x 1-1/4" cotter

1шт.

SCREW, 7/16 x 3" hex-hd. cap

11шт.

WASHER, 7/16" lock

11шт.

13

49637D

SCREW, fifth speed lockout (tractors equipped with steel wheels)

1шт.

13

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Used on tractors with pneumatic tires) (to plug fifth speed lockout screw hole) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

14

256918R11

DOWEL

SHAFT, w/two plugs, 172529 assembly, gear shift swivel large

1шт.

15

256919R11

HITCH PIN

SHAFT, w/two plugs, 172529 assembly, gear shift swivel small

1шт.

16

49053DB

COVER

belt pulley drive opening

1шт.

SCREW, 1/2 x 1-1/8" hex-hd. cap

2шт.

SCREW, 1/2 x 2-1/4" hex-hd. cap

4шт.

17

49054DB

GASKET

pulley drive opening cover

1шт.

18

361368R3

GASKET

rear frame cover

1шт.

19

358887R1

PLATE, gear shifter rail stop

1шт.

SCREW, 3/8 x 3/4" hex-hd. cap

2шт.

20

358888R91

GUIDE

gear shifter rail front

1шт.

SCREW, 3/8 x 3/4" hex-hd. cap

2шт.

21

41058DA

SPRING

gear shifter poppet

4шт.

22

D2616

BALL

POPPET, gear shifter (optional with 13772D)

4шт.

22

13772D

POPPET, gear shifter (optional with D2616)

4шт.

23

360277R11

RAIL

FORK AD RAIL, fourth and fifth speed shifter

1шт.

24

360276R11

FORK AND RAIL, second and third speed shifter

1шт.

25

360275R11

FORK AND RAIL, first and reverse speed shifter

1шт.

26

59473D

LOCK

shifter rail guide bolt

5шт.

27

355739R92

GUIDE

ASSEMBLY, gear shifter rail rear

1шт.

SCREW, 3/8 x 3/4" hex-hd. cap

2шт.

28

375355R1

O-RING,0.869" ID x 0.66" Width

RING, gear shift lever sealing International 560 series, 3252 up International 660 series, 3675 up

1шт.

29

382555R11

TUBE ASSEMBLY, differential lubrication International 560 series up International 660 series 6816 up 14.74, 4.31" Length

1шт.

SCREW, 3/8 x 3/4" cap

2шт.

WASHER, 13/32 x 13/16 x .065 ga

1шт.

375356R92

HOUSING

PACKAGE, gear shift swivel housing service (consists of housing, 361569R31, ring, 375355R1 and shield, 355889R3)

1шт.

375359R91

HOUSING

PACKAGE, gear shift swivel housing shield service (consists of ring, 375355R1 and shield, 355889R3) International 560 series, 501 to 3251 International 660 series, Serial Range: 501-3674

1шт.
