Запчасти Case IH 560 (113) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, INTERNATIONAL 560 SERIES 501 TO 4099 (06) - ELECTRICAL SYSTEMS

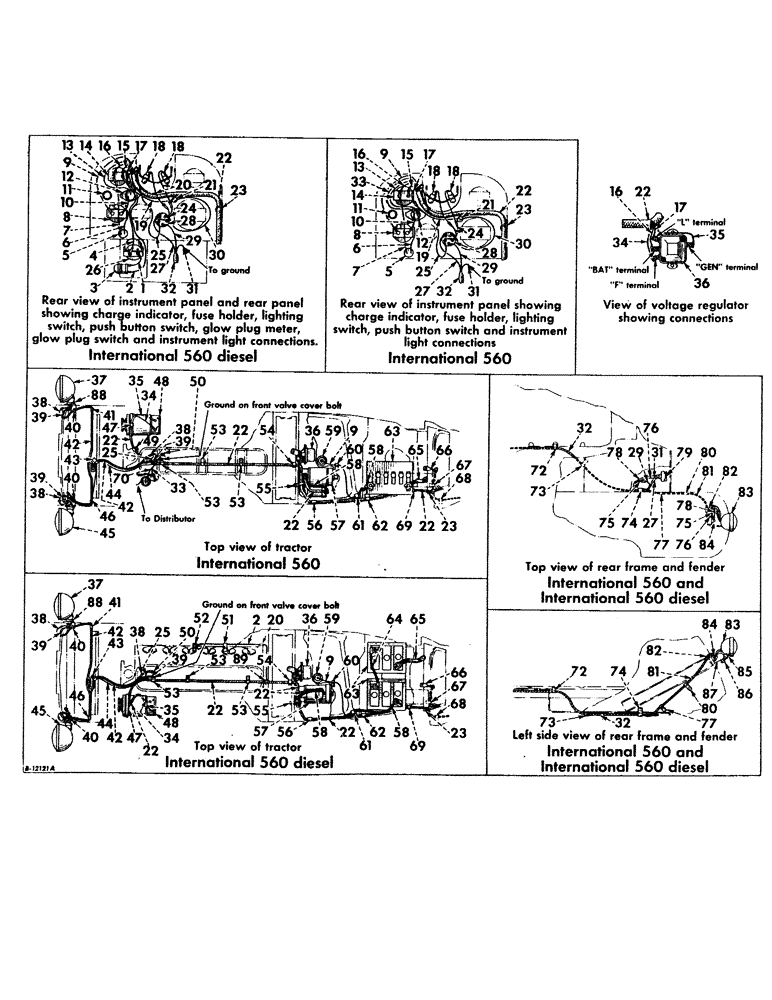

Схема запчастей Case IH 560 - (113) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, INTERNATIONAL 560 SERIES 501 TO 4099 (06) - ELECTRICAL SYSTEMS
36
22
22
16
78
32
59
6
50
18
36
1
54
21
14
42
85
22
84
2
74
37
30
39
73
67
42
70
5
31
59
27
58
56
23
18
9
82
78
32
22
57
63
65
11
36
31
66
48
46
88
29
40
53
17
80
64
3
42
13
66
45
21
39
38
6
28
16
55
44
33
38
22
57
17
46
22
4
19
25
11
32
68
22
38
23
23
58
7
22
26
32
25
84
45
17
69
63
68
25
25
51
16
18
50
7
83
65
20
15
41
87
22
77
75
61
60
14
24
62
44
39
18
29
33
86
10
53
27
35
35
66
54
23
31
79
29
76
69
28
2
49
38
37
56
24
22
9
42
55
35
60
53
34
62
61
39
75
47
34
38
43
10
89
8
47
74
40
82
19
83
40
58
40
48
53
13
12
15
73
9
41
76
43
53
58
88
5
81
47
30
9
34
20
81
72
80
8
72
12
52
77
53

Артикул

Название

Примечание

Количество

1

375077R91

CABLE

ASSEMBLY, glow plug meter to glow plug switch (unit B), Serial Range: 501-4099

1шт.

2

CABLE, glow plug switch to junction block (order harness, 370440R92) (unit B), Serial Range: 501-4099

1шт.

Ref #2 fuel gauge 369607R92 is a Stewart Warner gauge now subs to 369607R93 and will only work with sender 1341373C1. If mix incorrect sender with guage will give incorret fuel level readings. The Rochester gauge subs up to the Stewart-Warner gauge. So if tractor originally had a Rochester gauge and sender will need to change. TSG BT 4-7-98

1шт.

3

271179R91

SWITCH

glow plug (for components see list of parts under details of "glow plug switch") (unit B), Serial Range: 501-4099

1шт.

4

370395R91

CABLE ASSEMBLY, glow plug meter to charge indicator (unit B)

1шт.

5

370375R91

IGNITION SWITCH

SWITCH, ignition

1шт.

365502R1

NUT

switch mounting

1шт.

375341R1

WASHER, 13/16" int-tooth cd-pltd. lock

1шт.

6

CABLE, ignition switch to push button switch junction (order switch, 370375R91)

1шт.

7

CABLE, ignition switch to charge indicator (order switch, 370375R91)

1шт.

8

369607R92

GAUGE

RECEIVING UNIT, electric fuel gage

1шт.

9

CABLE, fuel gage sending unit to fuel gage receiving unit (order harness, 370439R92) (unit A)

1шт.

9

CABLE, fuel gage sending unit to fuel gage receiving unit (order harness, 370440R92) (unit B)

1шт.

10

357929R92

ELECTRIC CABLE

CABLE ASSEMBLY, fuel gage to push button switch

1шт.

11

432281

HOLE PLUG BUTTON,29/32"

PLUG, cr-pltd. button (used to plug hole for cigarette lighter) 29/32"

1шт.

12

366316R91

SWITCH

push button (optional with 366317R91)

1шт.

12

366317R91

IGNITION SWITCH

SWITCH, push button (optional with 366316R91)

1шт.

NUT, no. 10 cd-pltd. sq.

2шт.

SCREW, no. 10 x 3/8" rd-hd-mach. cd-pltd.

2шт.

WASHER, no. 10 cd-pltd. lock

2шт.

13

CABLE, push button switch to solenoid switch (order harness, 370439R92) (unit A)

1шт.

13

CABLE, push button switch to solenoid switch (order harness, 370440R92) (unit B)

1шт.

14

360053R92

INDICATOR

charge

1шт.

15

CABLE, charge indicator to solenoid switch (order harness, 370439R92) (unit A)

1шт.

15

CABLE, charge indicator to solenoid switch (order harness, 370440R92) (unit B)

1шт.

16

CABLE, charge indicator to regulator "BAT" terminal (order harness, 370439R92) (unit A)

1шт.

16

CABLE, charge indicator to regulator "BAT" terminal (order harness, 370440R92) (unit B)

1шт.

17

CABLE, regulator "L" terminal to fuse holder connector (order harness, 370439R92) (unit A)

1шт.

17

CABLE, regulator "L" terminal to fuse holder connector (order harness, 370440R92) (unit B)

1шт.

18

372546R91

CABLE

SOCKET ASSEMBLY, insturment light

2шт.

371204R1

LENS

instrument light

1шт.

371205R91

SCREW, w/washer, no. 8 x 3/8" cr-rec-fil-hd.

2шт.

370379R1

BRACKET, instrument light

1шт.

129934

ARM

BULB, instrument panel light (no. 57-12 volt)

2шт.

19

CABLE, fuse holder to connector (order fuse housing, 370311R91)

1шт.

20

263717R91

CLIP

cable harness (on fuel filter bracket upper LH mounting bolt)

1шт.

21

370311R91

FUSE CARTRIDGE

HOUSING ASSEMBLY, fuse

1шт.

117142

FUSE,10 Amp, Type 3AG

10 amp

1шт.

22

370439R92

HARNESS ASSEMBLY, cable (unit A)

1шт.

22

370440R92

HARNESS ASSEMBLY, cable (unit B)

1шт.

23

CLIP, on instrument panel LH side (not serviced separately)

1шт.

24

372545R91

CABLE ASSEMBLY, lighting switch to instrument light junction

1шт.

25

CABLE, lighting switch head lamp terminal to junction block (order harness, 370439R92) (unit A)

1шт.

26

370380R92

METER

glow plug (unit B)

1шт.

27

CABLE, lighting switch tail light terminal to breakaway connector (order harness, 3707442R91)

1шт.

28

3717465R91

SWITCH ASSEMBLY, lighting

1шт.

29

CABLE, lighting switch rear light terminal to line connector (order harness, 370442R91)

1шт.

30

CABLE, fuse housing to lighting switch battery terminal (order housing, 370311R91)

1шт.

31

CABLE, ground to breakaway connector socket (order harness, 370442R91)

1шт.

32

370442R91

HARNESS ASSEMBLY, lighting switch to breakaway connector socket

1шт.

33

CABLE, push button switch junction to ignition coil resistor (order harness, 370439R92) (unit A)

1шт.

34

CABLE, regulator "F" terminal to generator "F" terminal (order harness, 370439R92) (unit A)

1шт.

34

CABLE, regulator "F" terminal to generator "F" terminal (order harness, 370440R92) (unit B)

1шт.

35

CABLE, regulator "GEN" terminal (order harness, 370439R92) (unit A)

1шт.

35

CABLE, regulator "GEN" terminal to generator "A" terminal (order harness, 370440R92) (unit B)

1шт.

36

REGULATOR ASSEMBLY, voltage (for components see list of parts details of "voltage regulator")

1шт.

SCREW, 1/4 x 1/2" cap

2шт.

WASHER, 1/4" lock

2шт.

37

HEADLIGHT ASSEMBLY, sealed beam, RH (guide) (for components see list of parts under details of "headlight")

1шт.

NUT, 1/2 NF

1шт.

38

CABLE, junction block to headlight (order harness, 370441R91)

1шт.

39

CABLE, ground to headlight (order harness, 370441R91)

1шт.

40

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

headlight cable harness

2шт.

41

362126R1

CLIP

cable harness (on fan housing upper RH mounting bolt)

1шт.

WASHER, 17/64 x 5/8" x .049

1шт.

42

370441R91

HARNESS ASSEMBLY, headlight

1шт.

43

370383R1

CLIP

headlight harness (on fan housing center)

1шт.

NUT, 1/4"

1шт.

SCREW, 1/4 x 1/2" hex-hd. cap

1шт.

WASHER, 1/4" lock

1шт.

WASHER, 17/64 x 5/8" x .049 ga.

1шт.

44

372052R91

CABLE, horn (black)

1шт.

44

CABLE, horn (order harness, 370439R92) (unit A)

1шт.

44

CABLE, horn (order harness, 370440R92) (unit B)

1шт.

45

HEADLIGHT ASSEMBLY, sealed beam, LH (dietz) (for components see list of parts under details of "headlight")

1шт.

NUT, 1/2 NF

1шт.

46

362126R1

CLIP

cable harness (on fan housing upper LH mounting bolt)

1шт.

WASHER, 17/64 x 5/8" x .049

1шт.

47

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness (on generator adjustment bolt)

1шт.

48

GENERATOR (for components see list of parts under details of "generator")

1шт.

49

370383R1

CLIP

CABLE HARNESS (on RH water outlet housing bolt) (unit A)

1шт.

50

42915D

BLOCK

headlight cable junction

1шт.

NUT, no. 10

1шт.

SCREW, no. 10 x 1/2" slotted rd-hd. mach.

1шт.

WASHER, no. 10 lock

1шт.

51

263514R91

CLIP

cable (on front bolt no. 5 cylinder) (unit B)

1шт.

WASHER, 13/32 x 13/16" x .065 ga.

1шт.

52

42915D

BLOCK

glow plug cable junction (unit B)

1шт.

NUT, no. 10

1шт.

SCREW, no. 10 x 1/2" slt-rd-hd. mach.

1шт.

WASHER, no. 10 lock

1шт.

53

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness (on valve cover bolts)

3шт.

54

370383R1

CLIP

cable harness (on fuel tank support LH rear mounting bolt)

1шт.

55

370384R1

CLIP

cable harness and battery cable (on fuel tank support)

1шт.

SCREW, 1/4 x 1/2" hex-hd. cap

1шт.

WASHER, 1/4" lock

1шт.

56

CLIP, welded (on fuel tank support channel)

1шт.

57

MOTOR ASSEMBLY, cranking (for components see list of parts under details of "cranking motor")

1шт.

58

372547R91

CABLE, w/bolt and cover assembly, battery to solenoid switch (aluminum) (gasoline) (optional with 374907R91) (unit A)

1шт.

58

374907R91

CABLE

w/bolt and cover assembly, battery to solenoid switch (copper) (gasoline) (optional with 372547R91) (unit A)

1шт.

58

370388R91

CABLE

w/bolt and cover assembly, battery to solenoid switch (aluminum) (LP gas) (optional with 374905R91) (unit A)

1шт.

58

374905R91

CABLE

w/bolt and cover assembly, battery to solenoid switch (copper) (LP gas) (optional with 370388R91) (unit A)

1шт.

356062R91

BOLT

ASSEMBLY, terminal

1шт.

58

383012R91

CABLE

with bolt and cover assembly, battery to solenoid switch (unit B)

1шт.

356062R91

BOLT

ASSEMBLY, terminal

1шт.

364910R1

BOOT

COVER, solenoid terminal

1шт.

59

370376R92

GAUGE

SENDING UNIT, electric fuel gage

1шт.

369154R1

GASKET

electric fuel gage sending unit

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, no. 10 x 1/2" machine w/external tooth lock washer

5шт.

60

CLIP, welded (on fuel tank)

1шт.

61

370383R1

CLIP

battery cable (on fuel tank LH rear mounting bolt)

1шт.

62

CLIP, welded (on battery tray)

1шт.

63

365861R91

BATTERY, (12 volt Auto-Lite 11 HS-60) (tractors equipped with L.P. gas burning engine) (unit A)

1шт.

63

368879R91

BATTERY

(12 volt Auto-Lite 11 HS-50) (gasoline) (unit A)

1шт.

63

370424R91

BATTERY, (6 volt Auto-Lite 2H-135R) (2 for unit B)

1шт.

64

370394R91

CABLE

w/bolt assembly, battery to battery (unit B), Serial Range: 501-4896

1шт.

64

377994R91

CABLE

w/bolt assembly, battery to batteyr (unit B) 4897 up

1шт.

356062R91

BOLT

ASSEMBLY, terminal

2шт.

65

370389R91

CABLE

STRAP, w/bolt assembly, battery to ground gasoline engine tractors, 501 to 4915 diesel engine tractors, 501 up

1шт.

65

377995R91

CABLE

STRAP, w/bolt assembly, battery to ground gasoline engine tractors, 4916 up

1шт.

356062R91

BOLT

ASSEMBLY, terminal

1шт.

66

370740R91

CLIP, cable harness (on instrument housing support LH rear mounting bolt)

1шт.

67

355098R1

CLIP, cable harness (on hydra-touch valve support rear LH mounting bolt)

1шт.

68

355097R1

CLIP, cable harness (on LH front platform mounting bolt)

1шт.

69

362123R1

CLIP

cable harness (on fuel tank support LH rear mounting bolt)

1шт.

70

CABLE, coil positive terminal to solenoid switch "R" terminal (order harness, 370439R92) (unit A)

1шт.

72

362716R1

CLIP, cable harness (on rear frame cover LH side second bolt from rear)

1шт.

73

350742R1

CLIP, cable harness (on rear platform mounting bolt LH side)

1шт.

74

362666R1

CLIP

cable harness (on rear bolt thru fender)

1шт.

74

380053R1

CLIP, cable harness (on platform 2nd from rear mounting bolt, LH side) (tractors with full coverage fenders)

1шт.

75

CABLE, line connector to combination rear light connector (order harness, 370442R91)

1шт.

76

CABLE, breakaway connector to combination rear light connector (order harness, 370442R91)

1шт.

77

355097R1

CLIP, cable harness (on rear bolt thru fender and rear platform LH side)

1шт.

78

CABLE, breakaway connector to combination rear light connector (order harness, 370442R91)

1шт.

79

362002R92

SOCKET

ASSEMBLY, electrical breakaway connector

1шт.

NUT, 1/4"

2шт.

SCREW, 1/2 x 1-1/2" hex-hd. cap

2шт.

WASHER, 1/4" lock

2шт.

61401V

SPACER, breakaway connector socket

2шт.

80

350742R1

CLIP, cable harness (thru LII fender)

1шт.

NUT, 5/16"

1шт.

SCREW, 5/16 x 3/4" hex-hd. cap

1шт.

WASHER, 5/16" lock

1шт.

81

370443R91

HARNESS ASSEMBLY, breakaway connector socket to rear light cable

1шт.

82

355097R1

CLIP, cable harness (on fender brace inner bolt LH side)

1шт.

83

REAR LIGHT AND TAIL LIGHT ASSEMBLY, combination (for components see list of parts under details of combination rear light and tail light)

1шт.

NUT, 1/2"

1шт.

84

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness (on rear light support LH mounting bolt)

1шт.

85

365503R1

SPACER

combination rear light and tail light

1шт.

86

350920R1

CLAMP

combination rear light and tail light

1шт.

87

372355R11

SUPPORT

ASSEMBLY, combination rear light and tail light

1шт.

NUT, 3/8"

2шт.

SCREW, 3/8 x 1-3/8" hex-hd. cap

2шт.

88

370307R1

SEAT

headlight mounting ball

2шт.

89

358986R1

CABLE CLIP

CLIP, cable harness (on upper LH rear of cylinder head)

1шт.

SCREW, 1/2 x 3/4" hex-hd. cap

1шт.

WASHER, 1/2" lock

1шт.

90

376533R91

CABLE ASSEMBLY, glow plug meter to glow plug switch (unit B) 4100 up

1шт.

91

374342R1

PLUG

glow plug switch mounting hole button (unit B) 4100 up

1шт.

92

CABLE, glow plug switch to junction block (black) (order harness, 370440R92) (unit B) 4100 up

1шт.

Выбрано товаров: 160
