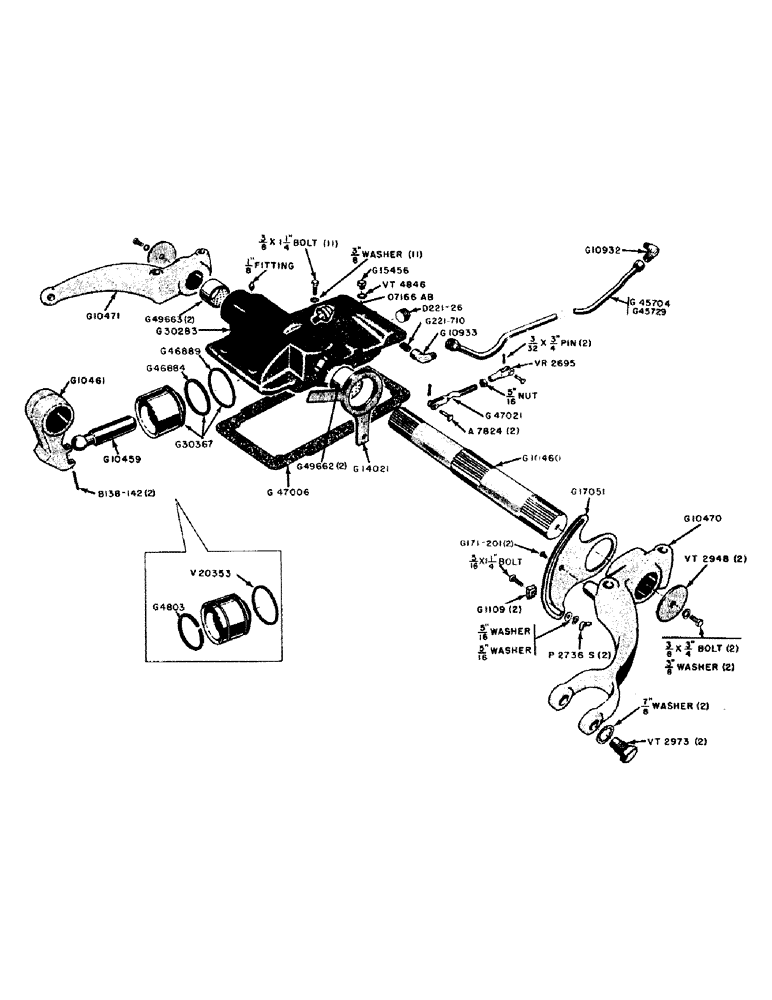

Запчасти Case IH 500B-SERIES (116) - EAGLE HITCH ROCKSHAFT AND HOUSING (06) - POWER TRAIN

A7824

X

PIN - yoke, control rod

2шт.

3/32" x 3/4" cotter pin

2шт.

G1043

X

PISTON (Use G30367)

1шт.

G1109

STOP - quadrant lever

1шт.

5/16" x 1-1/4" carr. bolt w/lockwasher and plain washer

2шт.

G1316

PISTON (Use G30367)

1шт.

G1373

PISTON (Use G30367)

1шт.

G1708

HOUSING (Use G30283)

1шт.

G1742

HOUSING (Use G30283)

1шт.

G4803

RING

- piston, steel (Use on piston w/2 grooves)

1шт.

G10459

X

ROD - connecting, piston to rocker arm

1шт.

G10460

ROCKSHAFT

- Eagle hitch

1шт.

G10461

ARM - rocker, piston

1шт.

G10470

ARM - lift, R.H.

1шт.

G10471

ARM - lift, L.H.

1шт.

G10932

ELBOW

- tube to interlock (3/8" male P.T. x 3/4" N.F., 90 degrees)

1шт.

G10933

ELBOW

- tube to housing (3/8" female P.T. x 3/4" N.F., 90 degrees)

1шт.

G14021

LEVER - depth control

1шт.

G15456

PLUG

- oil passage

1шт.

G17051

QUADRANT - depth control

1шт.

G30283

HOUSING - rockshaft (Includes bushings)

1шт.

3/8" x 1-1/4" N.C. hex. hd. bolt w/lockwasher

11шт.

1/8" str. fitting (Lincoln #5000)

2шт.

A36438

PISTON

KIT (Includes piston, G46884 ring and G46889 "O" ring) (replaces G30367)

1шт.

G45704

TUBE - interlock to housing (Includes nuts) 510B, 511B 0.5" OD x 38" L

1шт.

G45729

TUBE - interlock to housing (Includes nuts) 610B, 611B 0.5" OD x 38.687" L

1шт.

G46884

RING - piston, plastic (Use on piston w/1 groove)

1шт.

G46889

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

"O" RING (3-3/8" O.D.) piston (Use on piston w/1 groove)

1шт.

G47006

GASKET

- housing to transmission case

1шт.

G47021

ROD - depth control

1шт.

5/16" N.F. hex. nut

1шт.

G49662

BUSHING

- R.H., rockshaft (2-5/16" I.D.)

2шт.

G49663

BUSHING

- L.H., rockshaft (2-1/16" I.D.)

2шт.

O7166AB

X

BREATHER - rockshaft housing

1шт.

VT2948

WASHER - retaining, lift arm

2шт.

3/8" x 3/4" N.C. hex. hd. bolt w/lockwasher

2шт.

VT2973

X

SCREW - pivot, lift link to lift arm

2шт.

7/8" I.T. Shakeproof lockwasher

2шт.

VT4846

X

GASKET - oil passage plug

1шт.

V20353

SCREW

"O" RING (3-3/4" O.D.) piston (Use on piston w/2 grooves)

1шт.

VR2695

X

YOKE - control rod

1шт.

P2736S

NUT - wing, quadrant stop bolt (5/16" N.C.)

2шт.

B138-142

ROLL PIN - rocker arm to connecting rod (1/4" x 2")

2шт.

G171-201

SCREW - flat head, quadrant (3/8" x 1-1/2" N.C. Spin lock)

2шт.

D221-26

PLUG - pipe, rockshaft housing (1" P.T. ctsk. hd.)

1шт.

G221-710

NIPPLE - elbow to housing (3/8" P.T. x 1-1/2" long)

1шт.
