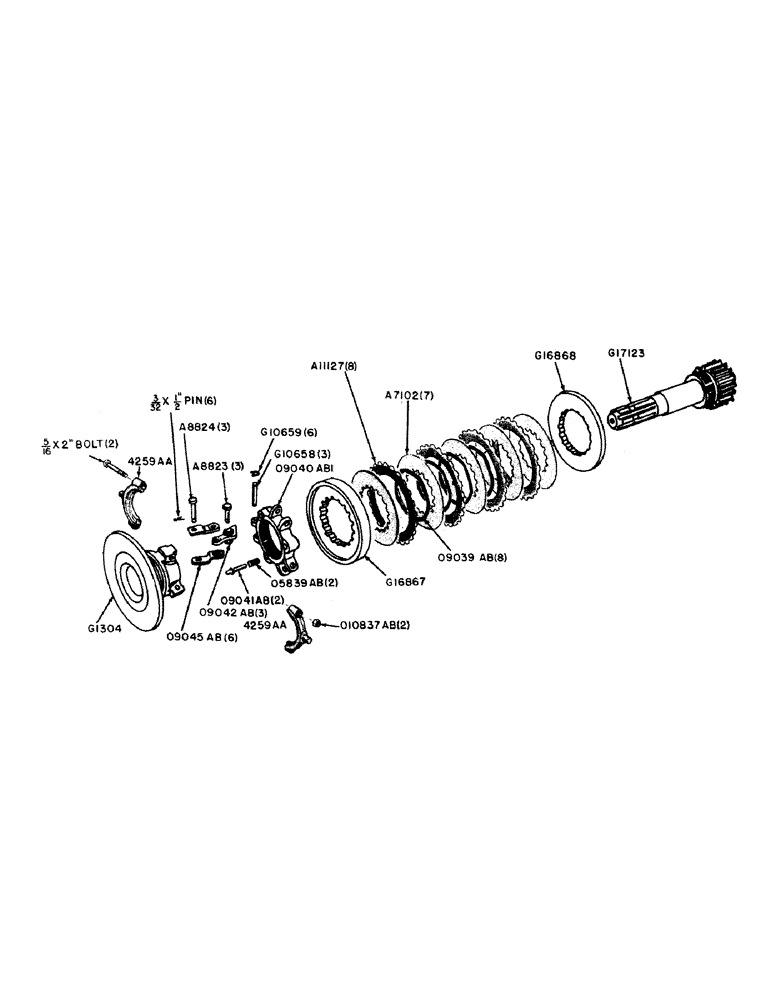

Запчасти Case IH 500B-SERIES (102) - INDEPENDENT P.T.O. CLUTCH (06) - POWER TRAIN

A7102

CLUTCH DRIVING PLATE

PLATE - clutch driven

7шт.

A8823

PIN,6.29mm OD x 26.99mm L

- link

3шт.

3/32" x 1/2" cotter pin

3шт.

A8824

PIN

- yoke finger

3шт.

3/32" x 1/2" cotter pin

3шт.

A11127

PLATE

- clutch drive

8шт.

G1304

SLEEVE

- sliding, clutch

1шт.

G10658

AXLE PIN

PIN - pivot, clutch finger

3шт.

G10659

SNAP RING,#31, Ext

Ring, Snap, , pivot pin #31, Ext

6шт.

G16867

PLATE

- clutch pressure

1шт.

G16868

X

PLATE - back up, clutch

1шт.

G17123

SHAFT - driven

1шт.

6141A

X

COLLAR (Use 4259AA)

1шт.

O5839AB

X

SPRING - lock pin, clutch adjusting

1шт.

O9039AB

SPRING

- separator, clutch drive plate

8шт.

O9040AB1

X

YOKE - clutch adjusting

1шт.

O9041AB

X

PIN - lock, clutch adjusting

1шт.

O9042AB

X

FINGER - clutch

3шт.

O9045AB

LINK - clutch lever

6шт.

O10837AB

NUT - stop, throw out collar

2шт.

4259AA

X

COLLAR - throw out (Includes 2 - 5/16" x 2" N.F. hex. hd. bolts and 2 - O10837AB stop nuts)

1шт.
