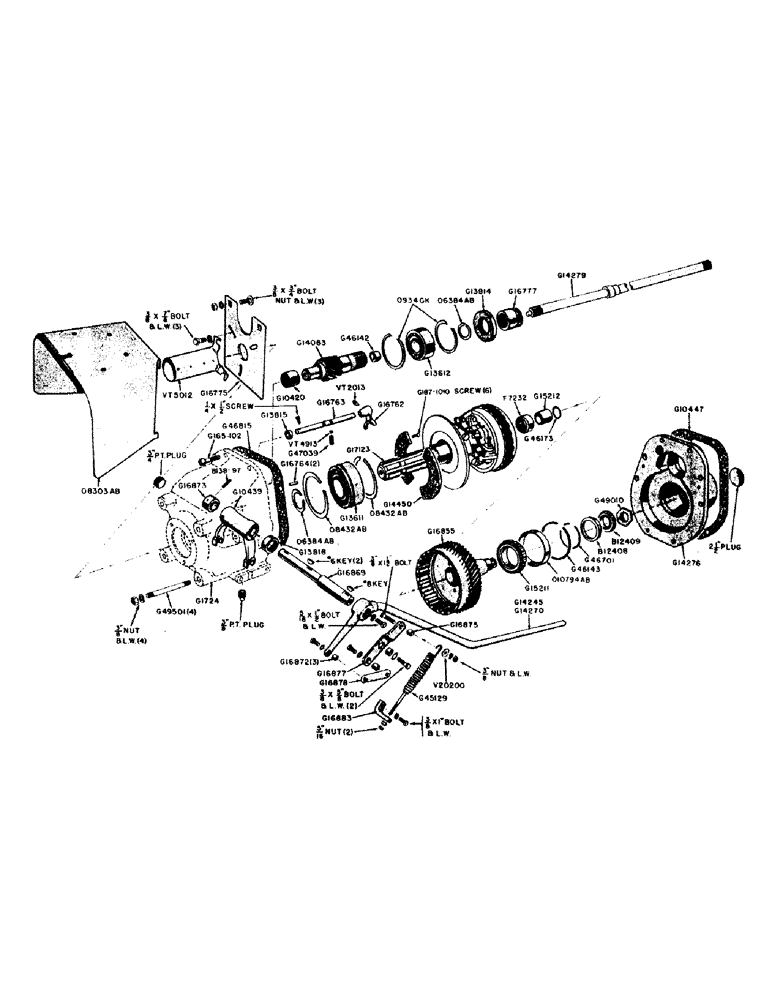

Запчасти Case IH 500B-SERIES (101A) - CONTROL LINKAGE, INDEPENDENT P.T.O., 610B AND 611B TRACTORS (06) - POWER TRAIN

G10439

COUPLING

YOKE - shift

1шт.

#6 Woodruff key

2шт.

G13818

OIL RESERVOIR

OIL SEAL - clutch lever shaft

1шт.

G14270

LEVER - control, P.T.O. clutch

1шт.

G16869

SHAFT

- shift yoke

1шт.

5/16" x 1/2" N.C. hex. hd. bolt w/lockwasher

1шт.

#8 Woodruff key

1шт.

G16872

BUSHING - pivot

3шт.

G16873

SPACER - yoke shaft

1шт.

G16875

SPACER - spring, clutch control lever

1шт.

3/8" x 1-1/2" N.C. hex. hd. bolt w/hex. nut, lockwasher and plain washer

1шт.

G16877

LINK - pivot, over - center

1шт.

3/8" x 3/4" N.C. hex. hd. bolt

1шт.

3/8" plain washer

1шт.

G16878

LINK - connecting, control lever to pivot link

1шт.

3/8" x 5/8" N.F. hex. hd. bolt

2шт.

G16883

BRACKET - anchor, over center spring

1шт.

3/8" x 1" N.C. hex. hd. bolt w/lockwasher

1шт.

G45129

SPRING

- over - center

1шт.

5/16" N.C. hex. nut

1шт.

5/16" N.C. hex. jam nut

1шт.

O2063FH

X

ROLL PIN - shift yoke to shaft (3/16" x 1-1/8")

1шт.

V20200

WASHER - spacer, control lever (1" O.D. x 11/32" I.D. x 1/16")

1шт.
