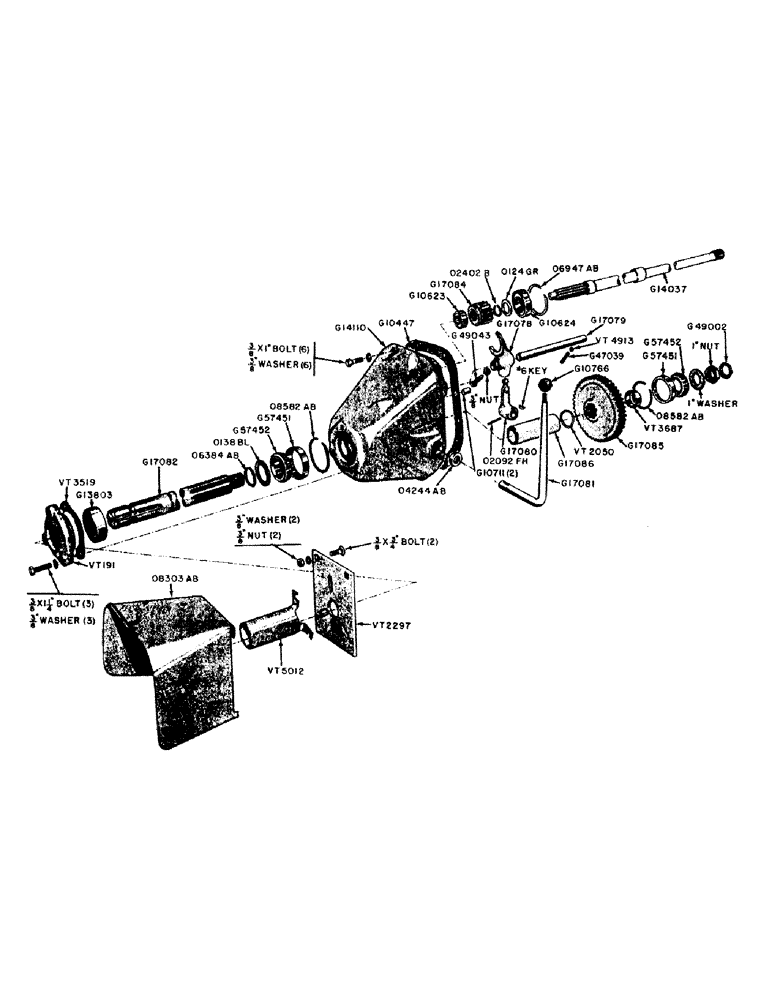

Запчасти Case IH 500B-SERIES (098) - PTO ASSEMBLY, 510B AND 511B TRACTORS (06) - POWER TRAIN

G1717

HOUSING - P.T.O. (Use G14110)

1шт.

G10447

GASKET

- P.T.O. housing to transmission case

1шт.

G10623

BALL BEARING

BEARING - rear, P.T.O. drive shaft (N.D. #7503)

1шт.

G10624

BALL BEARING

BEARING - front, P.T.O. drive shaft (N.D. #77506)

1шт.

P/N# G10624 (BEARING) HAS SHIELDS ON BOTH SIDES. THERE IS NO OTHER CASEIH EQUIVALENT TO THIS BRG. CAM (db) 1-21-98

1шт.

G10711

PIN

- dowel, P.T.O., Serial Range: housing-transmission

2шт.

G10766

KNOB

- shift control lever

1шт.

G13803

OIL SEAL

- rear, driven shaft

1шт.

G14037

SHAFT - P.T.O. drive

1шт.

G14110

HOUSING - P.T.O. (Includes 2 - G57451 bearing cups and 2 - O8582AB snap rings)

1шт.

3/8" x 1" N.C. hex. hd. bolt w/lockwasher

6шт.

G17078

FORK - shift

1шт.

G17079

SHAFT - shift

1шт.

G17080

LEVER - shift fork

1шт.

G17081

LEVER - shift control

1шт.

#6 Woodruff key

1шт.

G17082

SHAFT

- driven

1шт.

1" N.F. hex. nut and plain washer

1шт.

G17084

GEAR

- P.T.O. drive (13T)

1шт.

G17085

GEAR - P.T.O. driven (47T)

1шт.

G17086

SPACER - rear, driven gear (4-3/4" long)

1шт.

G47039

SPRING

- detent ball

1шт.

G49002

NUT

- driven shaft (1" pal nut)

1шт.

G49043

SCREW - lock, shift fork

1шт.

3/8" N.F. hex. jam nut

1шт.

G57451

BEARING, CUP

CUP - bearing, driven shaft (Timken #LM 48510)

2шт.

G57452

ROLLER BEARING

CONE - bearing, driven shaft (Timken #LM 48548)

2шт.

O4244AB

OIL SEAL - shift lever

1шт.

O6384AB

SNAP RING - driven shaft

1шт.

O6947AB

X

SNAP RING - front bearing retaining, drive shaft

1шт.

O8303AB

X

GUARD - universal joint

1шт.

O8582AB

X

SNAP RING - bearing retaining, driven shaft

2шт.

O2402AB

SNAP RING - front bearing retaining, drive shaft

1шт.

O138BL

X

WASHER - rear bearing retainer, driven shaft

1шт.

O2092FH

X

ROLL PIN - shift fork lever to G17081 lever (3/16" x 1")

1шт.

O124GR

WASHER

- front bearing retainer, drive shaft

1шт.

VT191

X

RETAINER - rear oil seal

1шт.

3/8" x 1-1/4" N.C. hex. hd. bolt w/lockwasher

3шт.

VT2050

X

WASHER - spring tension

1шт.

VT2297

X

PLATE - guard mounting

1шт.

3/8" x 3/4" carr. bolt w/hex. nut and lockwasher

2шт.

VT3519

X

GASKET - VT191 retainer

1шт.

VT3687

X

SPACER - front, driven gear (5/8" long)

1шт.

VT4913

X

BALL - detent

1шт.

VT5012

X

GUARD - P.T.O. driven shaft

1шт.
