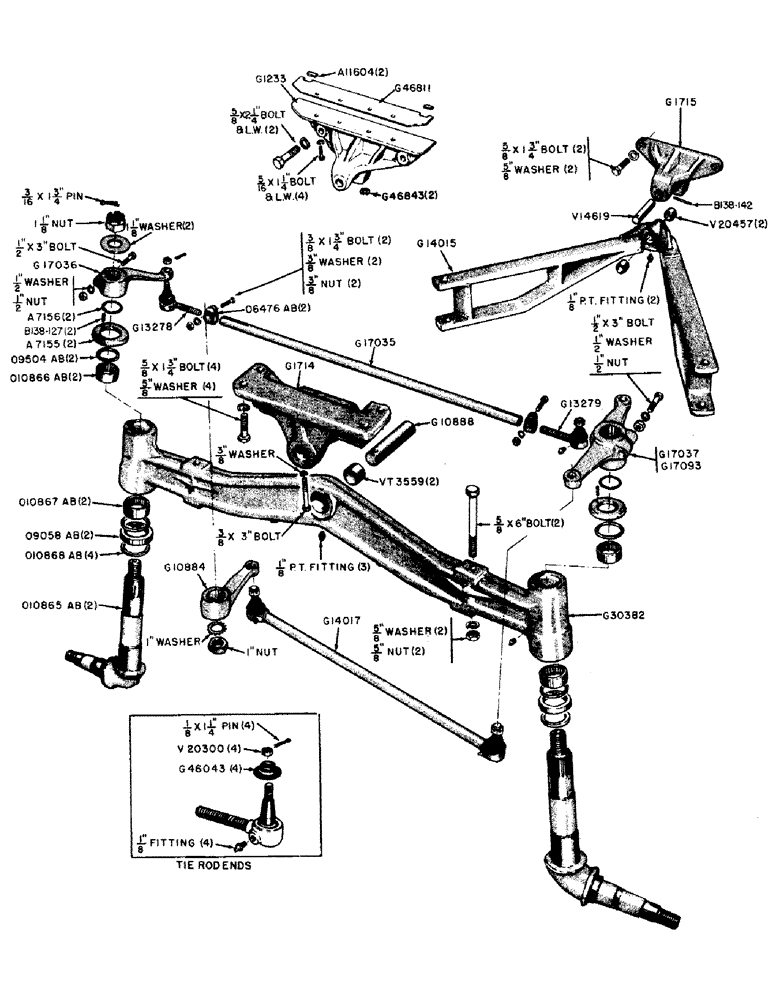

Запчасти Case IH 500B-SERIES (090) - HEAVY DUTY FRONT AXLE (06) - POWER TRAIN

A7155

SHIELD

- dust, wheel spindle

2шт.

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - dust seal, wheel spindle

2шт.

A11604

OIL PAN GASKET SET

- rear pivot bracket to engine (610B)

2шт.

G1233

BRACKET - rear pivot, radius rod (610B) See G1715

1шт.

5/16" x 1-1/4" N.C. hex. hd. bolt w/lockwasher

4шт.

5/8" x 2-1/4" N.C. hex. hd. bolt w/lockwasher

2шт.

G1714

SUPPORT - front pivot

1шт.

5/8" x 1-3/4" N.C. hex. hd. bolt w/lockwasher

4шт.

G1715

BRACKET - rear pivot, radius rod (510B) See G1233

1шт.

5/8" x 2" N.C. hex. hd. bolt w/lockwasher

2шт.

G10884

ARM - center steering, front axle -024, 70 Duro, 1.114" ID x .070" Thk

1шт.

#G Woodruff key

1шт.

G10888

PIN

- front axle pivot

1шт.

3/8" x 3" N.C. hex. hd. bolt w/lockwasher

1шт.

G13278

X

END - tie rod, R.H.

1шт.

1/8" str. fitting (Lincoln #5000)

1шт.

1/8" x 1-1/4" cotter pin

1шт.

G13279

X

END - tie rod, L.H.

1шт.

1/8" str. fitting (Lincoln #5000)

1шт.

1/8" x 1-1/4" cotter pin

1шт.

G14015

RADIUS ROD (Includes 2 - V20457 bushing)

1шт.

5/8" x 6" N.F. hex. hd. bolt w/hex. nut and lockwasher

2шт.

1/8" str. fitting (Lincoln #5000)

1шт.

G14017

DRAG LINK - steering (22-3/8")

1шт.

1/8" str. fitting (Lincoln #5000)

2шт.

1/8" x 1-1/4" cotter pin

2шт.

G17035

TUBE - tie rod, rear 1" ID x 36.625" L

1шт.

G17036

ARM - steering spindle, R.H.

1шт.

1/2" x 3" N.F. hex. hd. bolt w/hex. nut and lockwasher

1шт.

G17037

ARM - steering spindle, L.H. (See G17093)

1шт.

1/2" x 3" N.F. hex. hd. bolt w/hex. nut and lockwasher

1шт.

G17093

ARM - steering spindle, L.H. (w/power steering)

1шт.

G30382

AXLE - front (Includes VT3559 bushings)

1шт.

1/8" str. fitting (Lincoln #5000)

1шт.

G46043

COVER

SEAL - dust, tie rod ends and drag link

4шт.

G46811

GASKET

- rear pivot bracket to engine (610B)

1шт.

G46843

X

WASHER - sealing, G1233 bracket

2шт.

O6476AB

X

CLAMP - tie rod end

2шт.

3/8" x 1-3/4" N.C. hex. hd. bolt w/hex. nut and lockwasher

2шт.

O9058AB

X

BEARING - thrust, wheel spindle (Timken #T-199)

2шт.

O9504AB

X

OIL SEAL - upper, wheel spindle

2шт.

O10865AB

SPINDLE - wheel

2шт.

1-1/8" N.F. hex. castle nut and plain washer

2шт.

3/16" x 1-3/4" cotter pin

2шт.

O10866AB

X

BEARING - upper, wheel spindle (Torrington #B2816)

2шт.

O10867AB

X

BEARING - lower, wheel spindle (Torrington #B3216-OH)

2шт.

O10868AB

X

WASHER - thrust, wheel spindle

4шт.

VT3559

X

BUSHING - axle pivot

2шт.

V14619

PIN - pivot, radius rod rear

1шт.

V20300

OPERATOR MANUAL

NUT - tie rod ends and drag link

4шт.

V20457

X

BUSHING - pivot, radius rod

2шт.

B138-127

ROLL PIN - dust seal, wheel spindle (1/4" x 1/2")

2шт.

B138-142

ROLL PIN - radius rod pivot pin V14619 (1/4" x 2")

1шт.
