Запчасти Case IH 500B-SERIES (087) - FRONT WHEEL AND HUB, ADJUSTABLE FRONT AXLE, S/N 6096195 AND AFTER (06) - POWER TRAIN

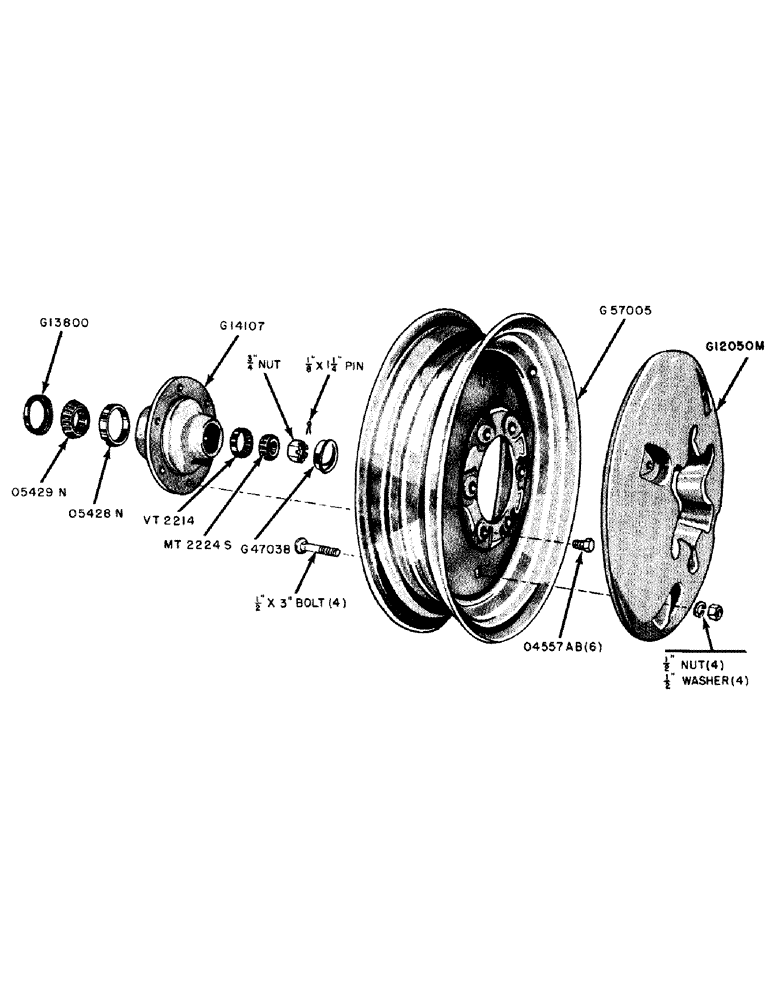

Схема запчастей Case IH 500B-SERIES - (087) - FRONT WHEEL AND HUB, ADJUSTABLE FRONT AXLE, S/N 6096195 AND AFTER (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

G1053

WEIGHT - wheel (Use G12050M)

1шт.

1/2" x 3" carr. bolt w/hex. nut and lockwasher

8шт.

G1719

HUB (Use G14107)

1шт.

G12050M

WEIGHT - wheel (Set of 2 w/bolt) Mchy. item

1шт.

G13800

SEAL

- inner

2шт.

G14107

HUB - front wheel, includes O5428N and VT2214 cups

2шт.

3/4" N.F. slotted hex. nut

2шт.

1/8" x 1-1/4" cotter pin

2шт.

G47038

CAP

- hub

2шт.

G57005

WHEEL

- front (6.00" x 16" tire)

2шт.

O4557AB

BOLT -, Serial Range: wheel-hub

12шт.

O5428N

X

CUP - inner bearing (Timken #T-13621)

2шт.

O5429N

X

CONE - inner bearing (Timken #T-13685)

2шт.

VT2214

X

CUP - outer bearing (Timken #T-O9195)

2шт.

MT2224S

X

CONE - outer bearing (Timken #O9081)

2шт.

Выбрано товаров: 15
