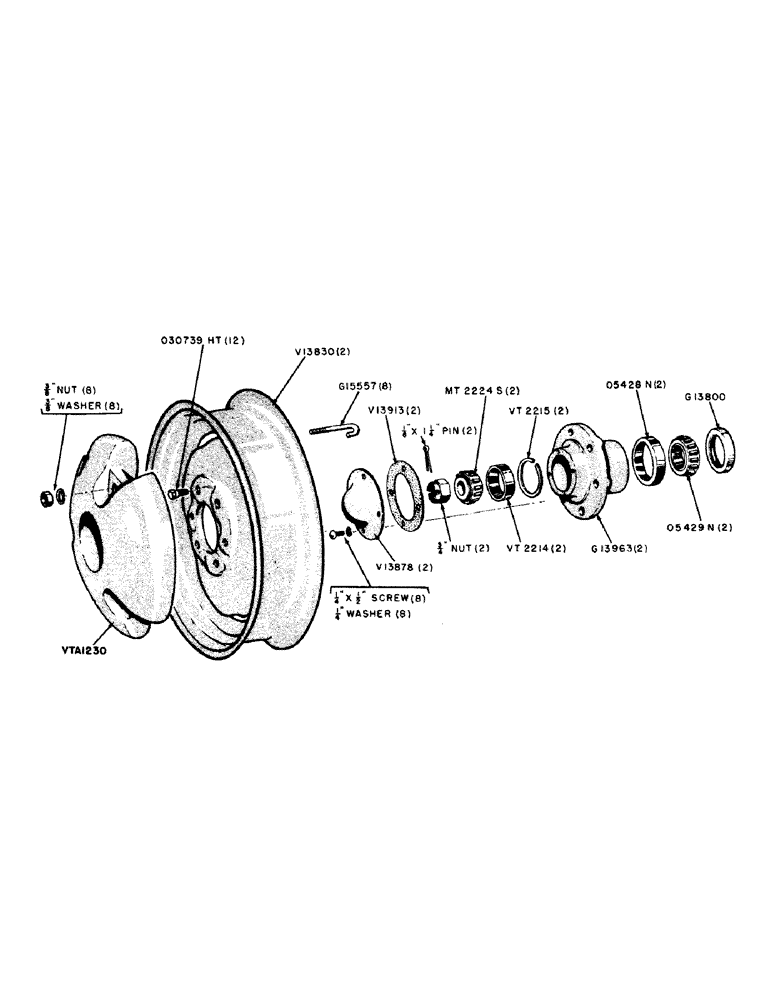

Запчасти Case IH 500B-SERIES (086) - FRONT WHEEL AND HUB, ADJUSTABLE FRONT AXLE, BEFORE S/N 6096195 (06) - POWER TRAIN

G13800

SEAL

- inner, wheel hub

2шт.

G13963

HUB - wheel, includes bearing cups and snap ring

2шт.

3/4" N.F. slotted hex. nut

2шт.

1/8" x 1-1/4" cotter pin

2шт.

G15557

BOLT (SPREADER)

BOLT - hook, wheel weight

8шт.

3/8" N.C. hex. nut and lockwasher

8шт.

VT52

X

HUB (Use G13963)

1шт.

VT624

WEIGHT (Use VTA1230)

1шт.

O30739HT

X

BOLT -, Serial Range: wheel-hub

12шт.

O5428N

X

CUP - inner bearing (Timken #13621)

2шт.

O5429N

X

CONE - inner bearing (Timken #13685)

2шт.

V13830

WHEEL - front

2шт.

V13878

CAP - hub

2шт.

1/4" x 1/2" N.C. rd. hd. mach. screw w/lockwasher

8шт.

V13913

X

GASKET - hub cap

2шт.

VT2214

X

CUP - outer bearing (Timken #O9195)

2шт.

VT2215

X

SNAP RING - wheel hub

2шт.

VTA1230

WEIGHT - wheel (Set of 2 w/bolts) Mchy. item

1шт.

MT2224S

X

CONE - outer bearing (Timken #O9081)

2шт.
