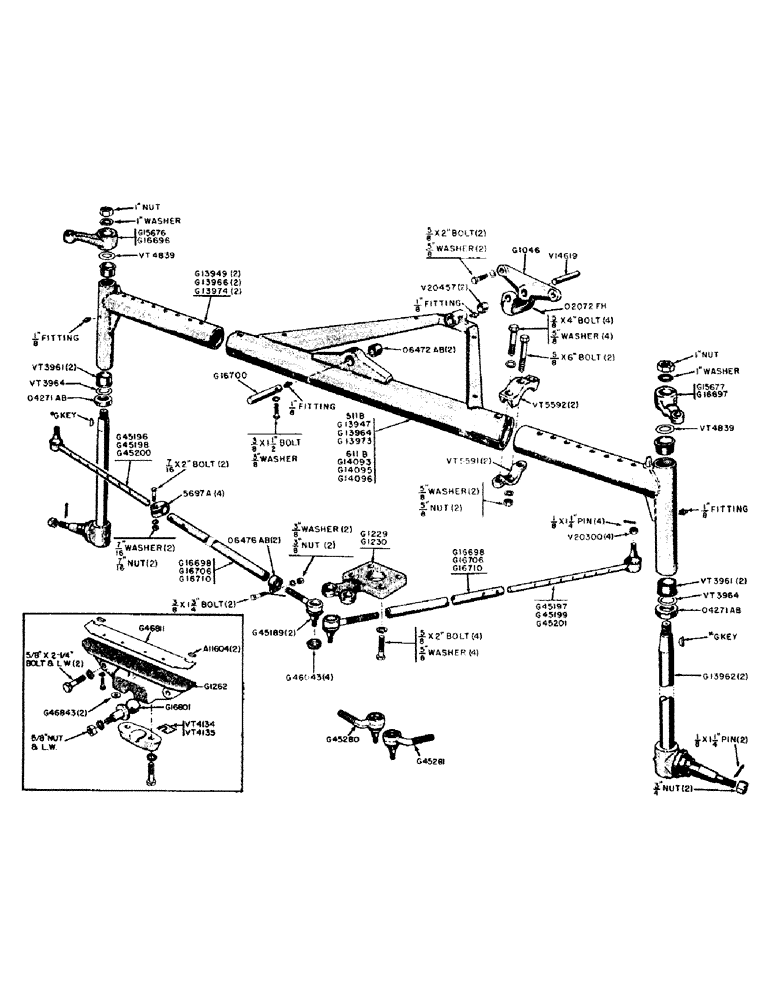

Запчасти Case IH 500B-SERIES (084) - ADJUSTABLE FRONT AXLE (06) - POWER TRAIN

A11604

OIL PAN GASKET SET

- pivot bracket to engine (611B)

2шт.

G1228

BRACKET

- rear pivot (511B) See G1262

1шт.

5/8" x 2" N.C. hex. hd. bolt w/lockwasher

2шт.

G1229

ARM - center steering (54" - 78")

1шт.

G1230

ARM - center steering (44" - 60" and 48" - 68")

1шт.

5/8" x 2" N.F. hex. hd. bolt w/hex. nut and lockwasher

4шт.

G1262

BRACKET - rear pivot (611B) See G1228

1шт.

5/16" x 1-1/4" N.C. hex. hd. bolt w/lockwasher

4шт.

5/8" x 2-1/4" N.C. hex. hd. bolt w/lockwasher

2шт.

G13947

TUBE - center (54" - 78") includes pivot bushings (511B)

1шт.

1/8" str. fitting (Lincoln #5000)

1шт.

G13949

TUBE - extension (54" - 78") includes bushings

2шт.

1/8" str. fitting (Lincoln #5000)

2шт.

G13962

SPINDLE - wheel, R.H. and L.H.

2шт.

1" N.F. hex. nut and lockwasher

2шт.

#G Woodruff key

2шт.

G13964

TUBE - center (48" - 68") includes pivot bushings (511B)

1шт.

1/8" str. fitting (Lincoln #5000)

1шт.

G13966

TUBE - extension (48" - 68") includes bushings

2шт.

1/8" str. fitting (Lincoln #5000)

2шт.

G13973

TUBE - center (44" - 60") includes pivot bushings (511B)

1шт.

1/8" str. fitting (Lincoln #5000)

1шт.

G13974

TUBE - extension (44" - 60") includes bushings

2шт.

1/8" str. fitting (Lincoln #5000)

2шт.

G14093

TUBE - center (54" - 78") includes pivot bushings (611B)

1шт.

1/8" str. fitting (Lincoln #5000)

1шт.

G14095

TUBE - center (44" - 60") includes pivot bushings (611B)

1шт.

G14096

TUBE - center (48" - 68") includes pivot bushings (611B)

1шт.

1/8" str. fitting (Lincoln #5000)

1шт.

G15676

ARM

- R.H. steering spindle (10-3/4" long) Use with off-set tie rod end

1шт.

G15677

ARM

- L.H. steering spindle (10-3/4" long) Use with off-set tie rod end

1шт.

G16696

ARM

- R.H. steering spindle (9" long) Use with straight tie rod end

1шт.

G16697

ARM

- L.H. steering spindle (9" long) Use with straight tie rod end

1шт.

G16698

TUBE,0.76" ID x 21" L

- tie rod, 21" long (54" - 78")

2шт.

G16700

PIN - pivot, front

1шт.

3/8" x 2" N.C. hex. hd. bolt w/lockwasher

1шт.

1/8" 45 degree fitting (Lincoln #5200)

1шт.

G16706

TUBE - tie rod, 17-3/4" long (48" - 68") 0.76" ID x 17.75" L

2шт.

G16710

TUBE - tie rod, 15-3/4" long (44" - 60") 0.76" ID x 15.75" L

2шт.

G16801

BALL

- pivot, radius rod rear (w/Case-O-Matic)

1шт.

5/8" N.C. hex. nut and lockwasher

1шт.

G45189

END

- tie rod, inner (Straight) See G45280 and G45281

2шт.

G45196

TIE ROD - notched, R.H., 18" long (54" - 78")

1шт.

G45197

TIE ROD - notched, L.H., 18" long (54" - 78")

1шт.

G45198

TIE ROD - notched, R.H., 14" long (48" - 68")

1шт.

G45199

TIE ROD - notched, L.H., 14" long (48" - 68")

1шт.

G45200

TIE ROD - notched, R.H., 12" long (44" - 60")

1шт.

G45201

WASHER, SEALING

TIE ROD - notched, L.H., 12" long (44" - 60")

1шт.

G45280

ROD

END - tie rod, R.H. inner (Off-set) See G45189

1шт.

G45281

ROD

END - tie rod, L.H. inner (Off-set) See G45189

1шт.

G46043

COVER

- dust, tie rod end

4шт.

G46811

GASKET

- rear pivot bracket (611B)

1шт.

G46843

X

WASHER - sealing, rear pivot bracket (w/Case-O-Matic)

2шт.

4766A

CAP - pivot ball (611B)

1шт.

5/8" x 2-1/4" N.C. hex. hd. bolt w/lockwasher

2шт.

5697A

X

CLAMP - outer, tie rod

4шт.

7/16" x 2" N.F. hex. hd. bolt w/hex. nut and lockwasher

4шт.

O4271AB

X

BEARING - thrust, wheel spindle (Timken #T-139)

2шт.

O6472AB

X

BUSHING - pivot, center tube

2шт.

O6476AB

X

CLAMP - inner, tie rod end (Includes 3/8" x 1-3/4" bolt w/hex. nut and lockwasher)

2шт.

VT3961

X

BUSHING - wheel spindle (In extension tube)

4шт.

VT3964

X

WASHER - thrust, wheel spindle (2-3/8" O.D. x 1-13/32" I.D. x 5/32")

2шт.

VT4134

SHIM (.040") ball cap (w/Case-O-Matic)

1шт.

VT4135

SHIM (.010") ball cap (w/Case-O-Matic)

1шт.

VT4839

X

SHIM - adjusting wheel spindle (.010")

1шт.

VT5591

CLAMP - lower threaded, extension tube to center tube

2шт.

VT5592

CLAMP - upper, extension tube to center tube

2шт.

5/8" x 4" N.C. hex. hd. bolt w/lockwasher

4шт.

5/8" x 6" N.C. hex. hd. bolt w/lockwasher

2шт.

V14619

PIN - pivot, radius rod (511B)

1шт.

V20300

OPERATOR MANUAL

NUT - tie rod end (9/16" N.F. slotted)

4шт.

1/8" x 1-1/4" cotter pin

4шт.

V20457

X

BUSHING - rear pivot, radius rod (511B)

1шт.

B138-142

ROLL PIN - radius rod pivot pin (1/4" x 2")

1шт.
