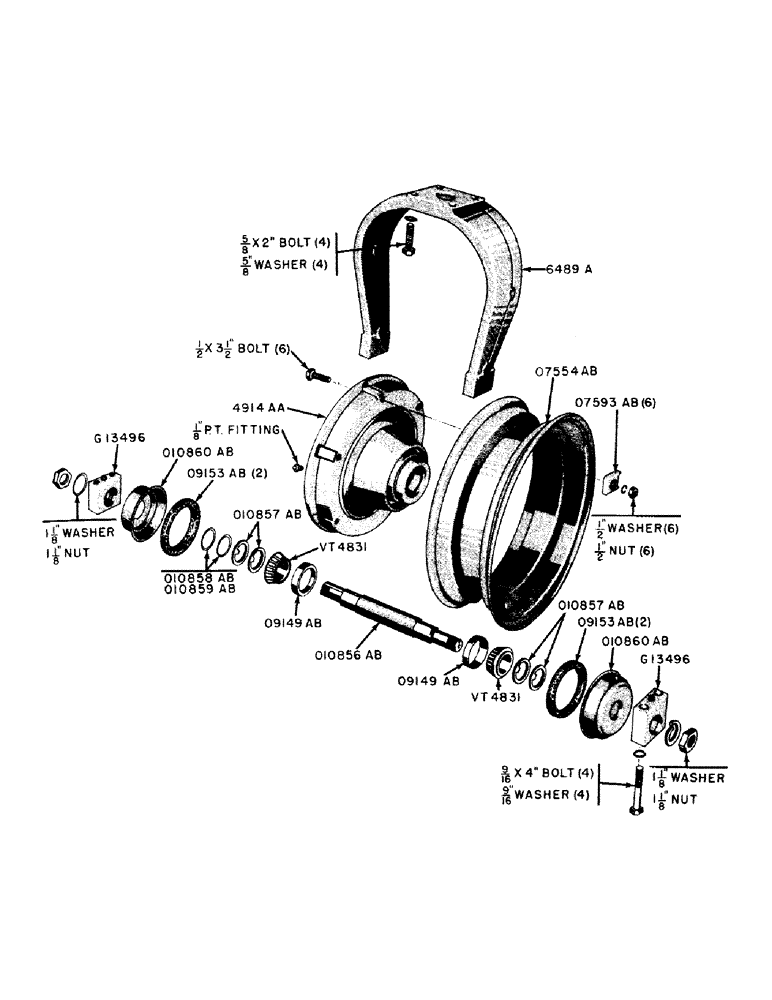

Запчасти Case IH 500B-SERIES (083) - SINGLE FRONT WHEEL AND FORK (06) - POWER TRAIN

G13496

BLOCK AND PIN - fork extension

2шт.

9/16" x 4" N.F. hex. hd. bolt w/lockwasher

4шт.

6488A

WHEEL (Use 4914AA)

1шт.

6489A

FORK - single front wheel

1шт.

5/8" x 2" N.F. hex. hd. bolt w/external Shakeproof lockwasher #1128

4шт.

O7554AB

RIM - 4.50F x 16 full drop center

1шт.

O7593AB

X

CLAMP - front wheel rim

6шт.

1/2" x 3-1/2" N.F. hex. hd. bolt w/hex. nut

6шт.

O9149AB

X

CUP - bearing, front wheel (Timken #25820)

2шт.

O9150AB

X

CONE - bearing, front wheel (Timken #25878) Use VT4831

1шт.

O9153AB

X

WASHER - felt, front wheel hub

4шт.

O10856AB

SHAFT - axle, single front wheel

1шт.

1-1/8" N.F. hex. jam nut w/lockwasher

2шт.

O10857AB

WASHER - axle shaft

4шт.

O10858AB

X

SHIM - axle shaft (.033")

4шт.

O10859AB

SHIM - axle shaft (.005")

12шт.

O10860AB

X

RETAINER - felt washer

2шт.

VT4831

X

CONE - bearing, front wheel (Timken #25877)

2шт.

4914AA

WHEEL - front, includes 2 - 09149AB bearing cups

1шт.

1/8" str. fitting (Lincoln #5000)

1шт.
