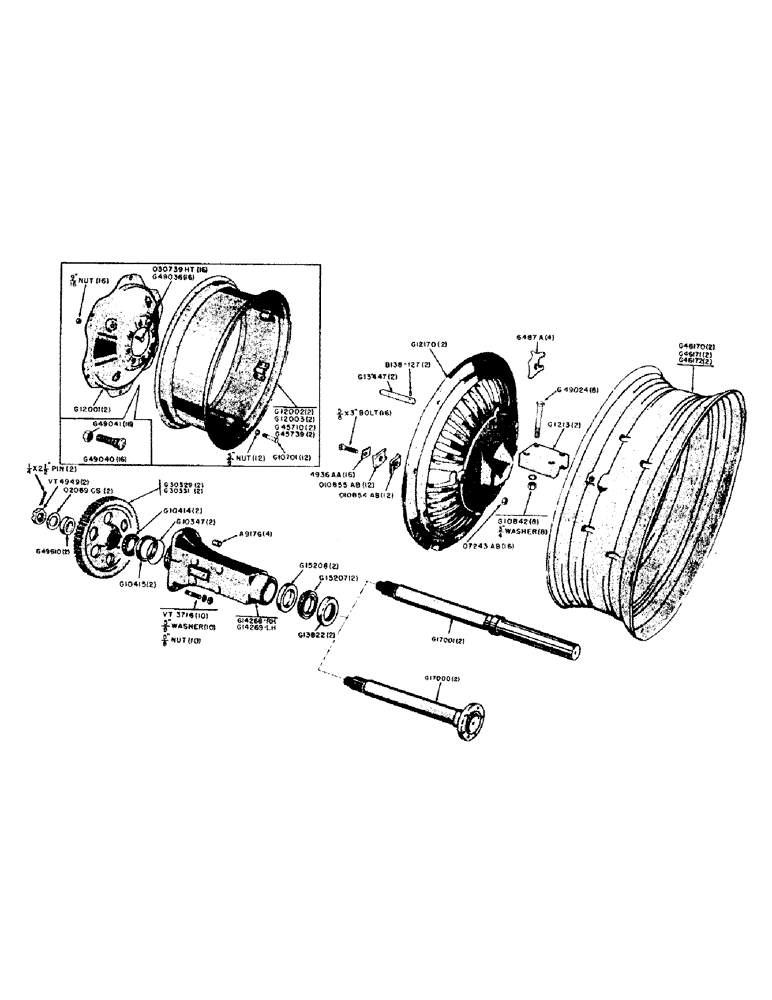

Запчасти Case IH 500B-SERIES (074) - FINAL DRIVE GEARS, REAR AXLES AND WHEELS, REAR WHEEL AND RIM, 511B AND 611B GENERAL PURPOSE (06) - POWER TRAIN

A9176

BUSHING

- pivot, E.H. draft arm

4шт.

G1706

HUB (Use G30329 or G30331)

1шт.

G1710

HOUSING - axle (Use G14268)

1шт.

G1711

HOUSING - axle (Use G14268)

1шт.

G1728

HOUSING - axle (Use G14268)

1шт.

G1729

HOUSING - axle (Use G14268)

1шт.

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - inner, axle housing

2шт.

G10414

ROLLER BEARING

CONE - inner bearing, rear axle (Timken #388A)

2шт.

G10415

BEARING CUP

CUP - inner bearing, rear axle (Timken #383A)

2шт.

G13447

KEY - hub to rear axle, general purpose (Includes B138-127 roll pin)

2шт.

G13822

SEAL,73.66mm ID x 110.13mm OD x 11mm Thk

OIL SEAL - outer, rear axle (replaces G13810)

2шт.

G14268

HOUSING - R.H. rear axle (Includes bearing cups and 2-A9176 bushings)

1шт.

G14269

HOUSING

- L.H. rear axle (Includes bearing cups and 2-A9176 bushings)

1шт.

G15207

ROLLER BEARING

CONE - outer bearing, rear axle (Timken #395S)

2шт.

G15208

BEARING CUP,110mm OD x 18.82mm W

CUP - outer bearing, rear axle (Timken #394AS)

2шт.

G17000

AXLE - rear (510B, 610B utility)

2шт.

G17001

AXLE - rear (511B, 611B general purpose)

2шт.

G30329

KIT

GEAR (65T) final drive (With G49610 spacer) 510B, 610B

2шт.

G30331

GEAR

(66T) final drive (With G49610 spacer) 511B, 611B

2шт.

G49610

SPACER

- final drive gear

2шт.

VT4949

X

NUT - axle (1-1/2" N.F. hex. slotted)

2шт.

1/4" x 2-1/2" cotter pin

2шт.

O2089CS

X

WASHER - take-up, inner axle

2шт.

V14401

STUD - axle housing to transmission case

10шт.

5/8" N.F. hex. nut and lockwasher

10шт.

B138-127

ROLL PIN - G13444 key (1/4" x 1/2")

2шт.

G1201

WHEEL (Use G13486), rear wheel and rim - 511B, 611B general purpose

1шт.

G1213

CLAMP - wheel hub, rear wheel and rim - 511B, 611B general purpose

2шт.

G10842

NUT

- hub bolt (3/4" N.F.), rear wheel and rim - 511B, 611B general purpose

8шт.

G12170

WHEEL - rear, w/matching hub clamp, bolts and nuts, rim - 511B, 611B general purpose

2шт.

G46170

RIM - rear wheel (W10-36 for 11.2" x 36" tire), 511B, 611B general purpose

2шт.

G46171

RIM - rear wheel (W11-36 for 12.4" x 36" tire), 511B, 611B general purpose

2шт.

G46172

RIM - rear wheel (W12-36 for 13" x 36" tire), 511B, 611B general purpose

2шт.

G49024

BOLT - wheel hub (3/4" x 5-3/4"), rear wheel and rim - 511B, 611B general purpose

8шт.

3/4" IT Shakeproof lockwasher, rear wheel and rim - 511B, 611B general purpose

8шт.

6487A

X

CLAMP - rim drive, rear wheel and rim - 511B, 611B general purpose

4шт.

5/8" x 3" N.C. hex. hd. bolt, rear wheel and rim - 511B, 611B general purpose

4шт.

O7243AB

X

NUT - rim bolt, rear wheel and rim - 511B, 611B general purpose

16шт.

O10854AB

X

CLAMP - rim mounting, male, rear wheel and rim - 511B, 611B general purpose

12шт.

5/8" x 3" N.C. hex. hd. bolt, rear wheel and rim - 511B, 611B general purpose

12шт.

O10855AB

X

CLAMP - rim mounting, female, rear wheel and rim - 511B, 611B general purpose

12шт.

4936AA

LUG - locking, rim clamp bolt, rear wheel and rim - 511B, 611B general purpose

16шт.

G10701

BOLT

- rim to wheel, rear - 510B, 610B utility

12шт.

5/8" N.F. hex. nut, rear wheel and rim - 511B, 611B utility

12шт.

G12001

DISC

WHEEL DISC (28" rim), rear wheel and rim - 511B, 611B utility

2шт.

G12002

RIM

- rear wheel (W10-28 for 10" or 11" x 28" tire), 511B, 611B utility

2шт.

G12003

RIM

- rear wheel (W11-28 for 12" x 28" tire) standard, 511B, 611B utility

2шт.

G45710

RIM

- rear wheel (W12-28 for 12" or 13" x 28" tire), 511B, 611B utility

2шт.

G45751

WHEEL AND RIM COMPLETE (For 14 x 26 sand tire), rear wheel and rim - 511B, 611B utility

2шт.

G49036

WHEEL BOLT

BOLT - wheel to hub (9/16" x 1-3/8") (See G48004), rear wheel and rim - 511B, 611B utility

16шт.

9/16" N.F. hex. jam nut, rear wheel and rim - 511B, 611B utility

16шт.

G49040

SERRATED BOLT

- drive in, wheel to hub (Used when treads in rear axle flange have been damaged) (See G49036), rear wheel and rim - 511B, 611B utility

16шт.

G49041

WHEEL NUT

- G49040 bolt, rear wheel and rim - 511B, 611B utility

16шт.

O30739HT

X

BOLT - wheel to hub (9/16" x 1-1/4") See G49036, rear wheel and rim - 511B, 611B utility

16шт.
