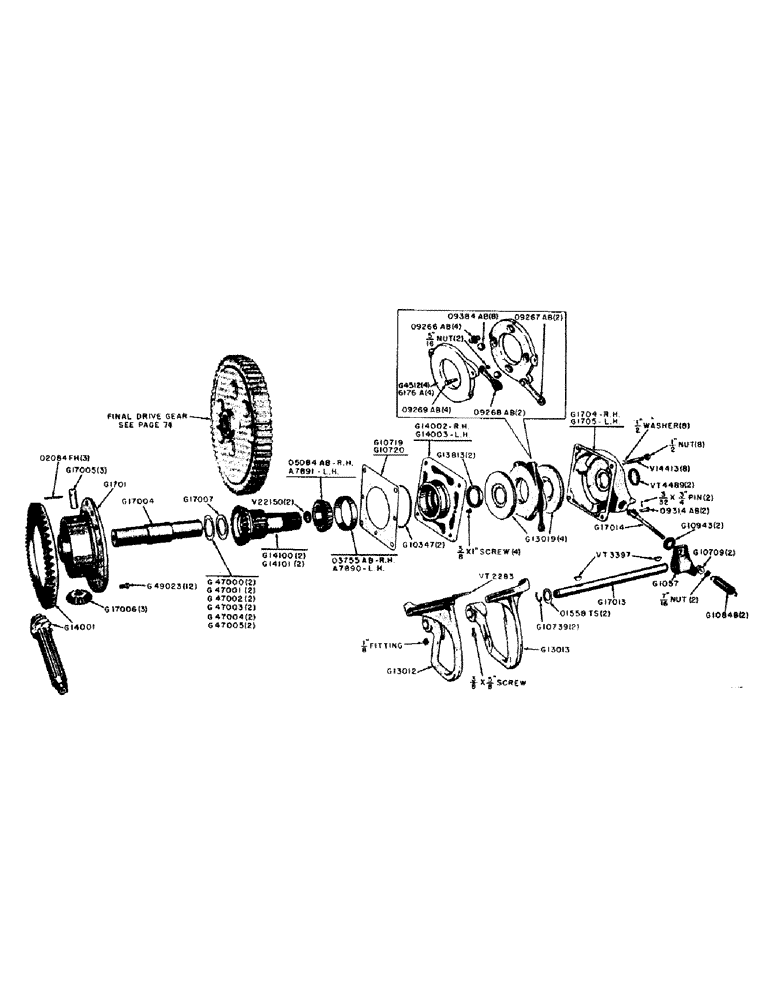

Запчасти Case IH 500B-SERIES (072[1]) - DIFFERENTIAL AND BRAKE ASSEMBLY (06) - POWER TRAIN

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - bearing, L.H. side gear (Timken #3920)

1шт.

A7891

ROLLER BEARING

CONE - bearing, L.H. side gear (Timken #3982)

1шт.

G1701

X

WHEEL - center

1шт.

G1702

CARRIER - (Use G14002)

1шт.

G1703

CARRIER - (Use G14003)

1шт.

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - bearing carrier (5-1/4" dia.)

2шт.

G10719

SHIM,.005" Thk

Bearing carrier .005" Thk

1шт.

G10720

SHIM,.010" Thk

Bearing carrier .010" Thk

1шт.

G13813

OIL SEAL

OIL SEAL - bearing carrier

2шт.

G14001

RING GEAR AND COUNTERSHAFT W/SPIRAL BEVEL PINION (Matched set)

1шт.

G14002

CARRIER - bearing, R.H. side gear, includes 03755AB cup

1шт.

3/8" x 1" N.C. flat hd. mach. screw (Spin Lock)

2шт.

G14003

CARRIER - bearing, L.H. side gear, includes A7890 cup

1шт.

3/8" x 1" N.C. flat hd. mach. screw (Spin Lock)

2шт.

G14100

GEAR - differential side, includes V22150 plug (14T) ("510B, 610B" utility)

2шт.

G14101

GEAR - differential side, includes V22150 plug (13T) ("511B, 611B" general purpose)

2шт.

G17004

SHAFT - cross, differential

1шт.

G17005

SHAFT - pinion gear

3шт.

G17006

GEAR WHEEL

GEAR - pinion, differential

3шт.

G17007

SHIM - thrust washer (.010")

1шт.

G47000

WASHER - thrust, center wheel (.089")

2шт.

G47001

WASHER - thrust, center wheel (.094")

2шт.

G47002

WASHER - thrust, center wheel (.099")

2шт.

G47003

WASHER - thrust, center wheel (.104")

2шт.

G47004

WASHER - thrust, center wheel (.109")

2шт.

G47005

WASHER - thrust, center wheel (.119")

2шт.

G49023

BOLT - ring gear to center wheel

12шт.

O3755AB

X

CUP - bearing, R.H. side gear (Timken #394A)

1шт.

O5084AB

X

CONE - bearing, R.H. side gear (Timken #395)

1шт.

O2084FH

X

ROLL PIN - differential pinion shaft (3/16" x 1-7/8")

3шт.

V22150

CAP

PLUG - differential side gear

2шт.

G1057

LEVER

- L.H., brake cross shaft

1шт.

G1072

PEDAL (Use G13012)

1шт.

G1073

X

PEDAL (Use G13013)

1шт.

G1704

COVER - brake, R.H.

1шт.

G1705

COVER - brake, L.H.

1шт.

G4512

DISC

- brake actuating (Tractor #6120689 and after) See 6176A

4шт.

G10709

NUT

- adjusting, brake rod

2шт.

G10739

X

SNAP RING - brake pedal cross shaft

2шт.

G10848

SPRING

- return, brake pedal

2шт.

G10943

DUST CAP

CAP - dust, brake rod

2шт.

G13012

PEDAL

- R.H. brake, includes VT2283 interlock

1шт.

1/8" x 67-1/2 degree fitting (Lincoln #5300)

1шт.

G13013

PEDAL

- L.H. brake, includes 3/8" x 5/8" N.C. sq. hd. cup pt. set screw

1шт.

G13019

DISC

- middle, with bonded brake lining

4шт.

G17013

SHAFT - cross, clutch and brake pedal

1шт.

G17014

ROD - brake yoke link

2шт.

7/16" N.F. hex. nut

2шт.

6176A

X

DISC - brake actuating (Before tractor #6120689) See G4512

4шт.

O9266AB

X

SPRING - actuating, brake discs

4шт.

O9267AB

X

LINK - plain actuating, brake discs

2шт.

O9268AB

X

LINK - straddle, brake actuating

2шт.

O9269AB

X

BOLT - actuating link stud

4шт.

5/16" N.F. hex. jam nut

4шт.

O9314AB

X

PIN - yoke, brake rod

2шт.

3/32" x 3/4" cotter pin

2шт.

O9384AB

X

BALL - actuating disc (7/8" dia.)

8шт.

O1558TS

X

WASHER - cross shaft ends (1-7/8" O.D. x 1/32" I.D. x #16 ga.)

2шт.

V14413

STUD - brake cover to transmission (1/2" x 2-13/16")

8шт.

1/2" N.F. hex. nut and lockwasher

8шт.

VT2283

INTERLOCK - brake pedal, R.H.

1шт.

1/4" x 1-1/4" ctsk. hd. rivet

1шт.

VT3397

KEY - Woodruff, G13013 pedal and G1057, Serial Range: lever-shaft

2шт.

VT4489

X

PLUG - button, brake cover

2шт.
