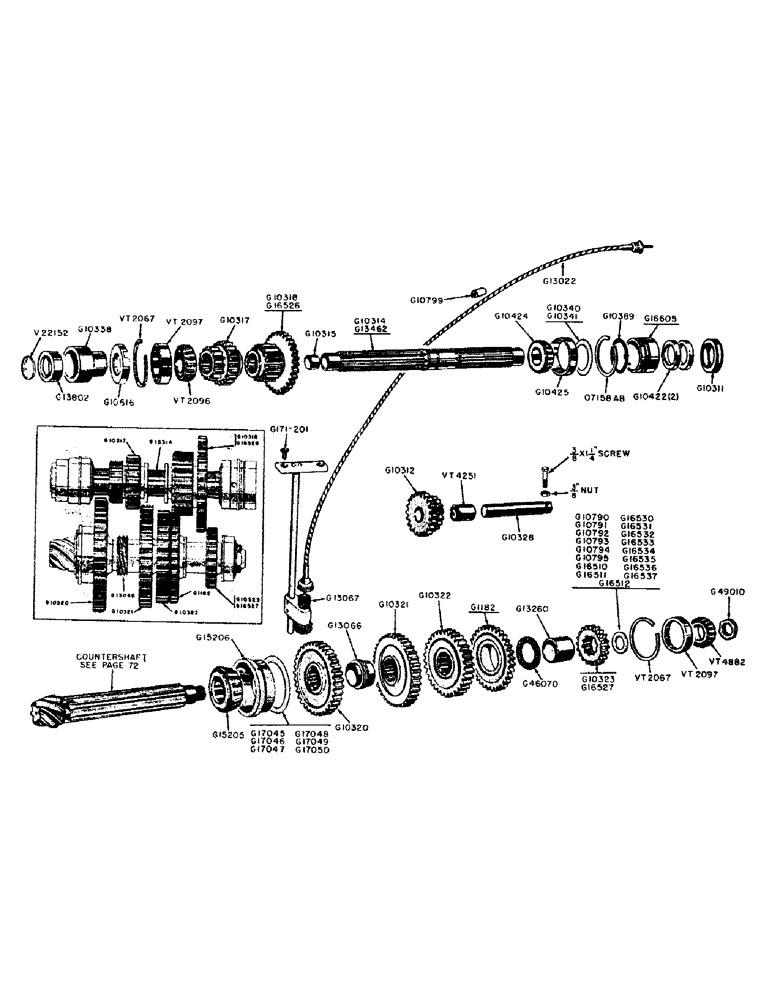

Запчасти Case IH 500B-SERIES (070) - TRANSMISSION SHAFT AND GEARS (06) - POWER TRAIN

G1182

X

GEAR - oil slinger, countershaft (38T)

1шт.

G10311

COLLAR

- cover pilot

1шт.

G10312

GEAR

- reverse idler, includes VT4251 bushing

1шт.

G10314

SHAFT - main drive, includes G10315 bushing (17-5/32" long) See G13462

1шт.

G10315

BUSHING

- mainshaft rear

1шт.

G10317

GEAR WHEEL

GEAR - mainshaft, 1st (16T), 2nd (21T)

1шт.

G10318

GEAR

- mainshaft, 3rd (25T), 4th (30T) See G16526

1шт.

G10320

X

GEAR - countershaft, 1st speed (47T)

1шт.

G10321

GEAR WHEEL

GEAR - countershaft, 2nd speed (42T)

1шт.

G10322

GEAR

- countershaft, 3rd speed (38T)

1шт.

G10323

GEAR - countershaft, 4th speed (24T) See G16527

1шт.

G10328

SHAFT

- reverse idler gear

1шт.

3/8" x 1-1/4" N.C. sq. hd. dog pt. set screw w/hex. nut and IT lockwasher

1шт.

G10338

HOUSING

- rear oil seal, mainshaft

1шт.

G10340

SHIM,.007" Thk

Bearing adjusting .007" Thk

1шт.

G10341

SHIM,.005" Thk

Bearing adjusting .005" Thk

1шт.

G10389

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

"O" RING - oil seal housing (2-7/8" O.D.)

1шт.

G10422

OIL SEAL

OIL SEAL - front, mainshaft

2шт.

G10424

CONE

- bearing, mainshaft front

1шт.

G10425

CUP

- bearing, mainshaft front

1шт.

G10616

CUP

- oiling, mainshaft

1шт.

G10790

SPACER

- countershaft gears (.164")

1шт.

G10791

SPACER

- countershaft gears (.174")

1шт.

G10792

SPACER

- countershaft gears (.184")

1шт.

G10793

SPACER

- countershaft gears (.194")

1шт.

G10794

SPACER

- countershaft gears (.204")

1шт.

G10795

SPACER

- countershaft gears (.214")

1шт.

G10799

SEAL

SEAL - rubber, speedometer cable

1шт.

G13022

CABLE

SPEEDOMETER DRIVE CABLE AND HOUSING

1шт.

G13066

GEAR - speedometer drive, includes gear spacer

1шт.

G13067

DRIVE - speedometer

1шт.

5/16" x 1/2" N.C. flat hd. mach. screw (Philips type)

2шт.

G13260

BUSHING

SPACER - countershaft gear

1шт.

G13294

X

CABLE - speedometer drive (See G13022)

1шт.

G13462

SHAFT

- main drive, includes G10315 bushing (14-1/2" long) (w/shuttle transmission and Case-O-Matic drive)

1шт.

G13802

OIL SEAL

OIL SEAL - rear, mainshaft

1шт.

G15205

CONE - bearing, countershaft rear (Timken #59175)

1шт.

G15206

BEARING CUP

CUP - bearing, countershaft rear (Timken #59429B)

1шт.

G16510

SPACER

- countershaft gears (.224")

1шт.

G16511

SPACER

- countershaft gears (.234")

1шт.

G16512

SPACER

- countershaft gears (.244")

1шт.

G16526

GEAR WHEEL

GEAR - mainshaft, 3rd (25T), 4th (44T) (Tractors w/high speed 4th gear)

1шт.

G16527

GEAR

- countershaft, 4th speed (19T) (Special w/high speed 4th gear)

1шт.

G16530

SPACER

- countershaft gears (.169")

1шт.

G16531

SPACER

- countershaft gears (.179")

1шт.

G16532

SPACER

- countershaft gears (.189")

1шт.

G16533

SPACER

- countershaft gears (.199")

1шт.

G16534

X

SPACER - countershaft gears (.209")

1шт.

G16535

SPACER

- countershaft gears (.219")

1шт.

G16536

SPACER

- countershaft gears (.229")

1шт.

G16537

X

SPACER - countershaft gears (.239")

1шт.

G16605

HOUSING

- front oil seal, mainshaft

1шт.

G17045

SHIM,.018" Thk

Bearing, Countershaft .018" Thk

1шт.

G17046

SHIM,.020" Thk

Bearing, Countershaft .020" Thk

1шт.

G17047

SHIM,.022" Thk

Bearing, Countershaft .022" Thk

1шт.

G17048

SHIM,.025" Thk

Bearing, Countershaft .025" Thk

1шт.

G17049

SHIM - bearing, countershaft (.028")

1шт.

G17050

SHIM - bearing, countershaft (.031")

1шт.

G17117

SHIM,.016" Thk

Bearing, Countershaft .016" Thk

1шт.

G46070

WASHER

- retaining, oil slinger gear (2-3/8" O.D. x 1-5/8" I.D. x 1/8")

1шт.

G49010

LOCK NUT

- countershaft adjusting

1шт.

O7158AB

X

SNAP RING - oil seal housing, front mainshaft

1шт.

VT2067

X

SNAP RING - mainshaft and countershaft

2шт.

VT2096

X

CONE - bearing, mainshaft rear (Timken #14137-A)

1шт.

VT2097

X

CUP - bearing, mainshaft and countershaft (Timken #14276)

2шт.

VT4251

X

BUSHING - reverse idler gear (See G10312)

1шт.

VT4882

X

CONE - bearing, countershaft front (Timken #14116)

1шт.

V22152

CAP

PLUG - expansion (1-1/2" O.D.) (Rear end of main drive shaft w/o P.T.O.)

1шт.
