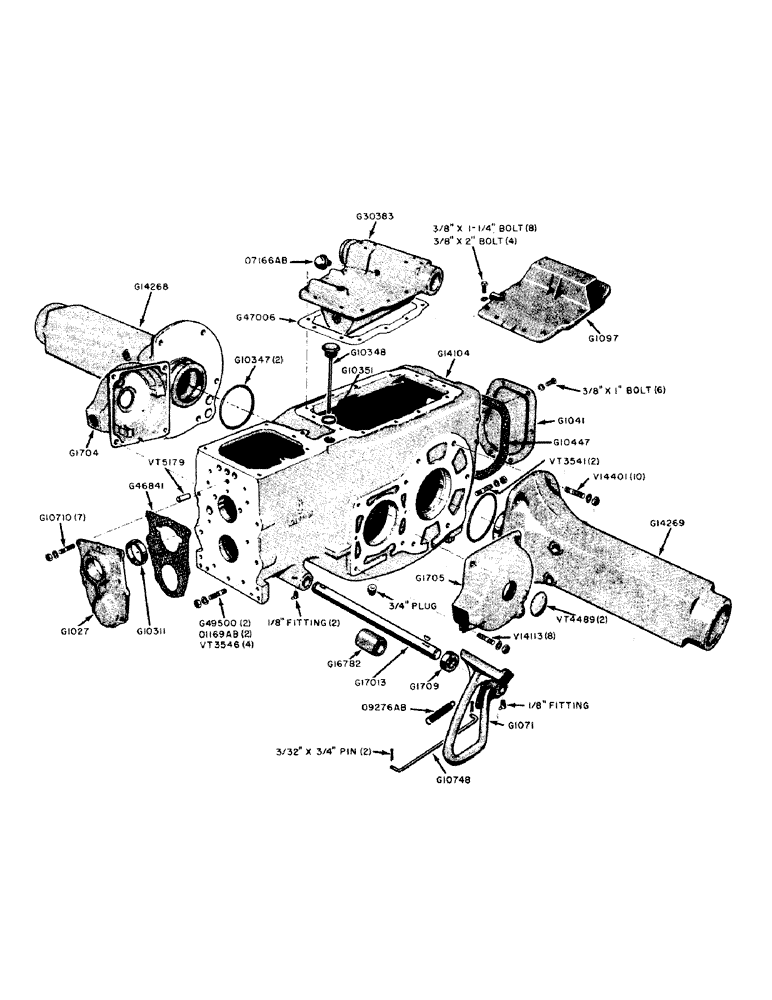

Запчасти Case IH 500B-SERIES (068) - TRANSMISSION CASE AND REAR AXLE HOUSINGS (06) - POWER TRAIN

G1027

COVER

- front, transmission case (4 speed transmission only)

1шт.

G1041

COVER

- rear, P.T.O. opening

1шт.

3/8" x 1" N.C. hex. hd. bolt w/lockwasher

6шт.

G1071

PEDAL - clutch (510B, 511B)

1шт.

1/8" 67-1/2 degree fitting (Lincoln #5300)

1шт.

G1097

COVER - top rear, transmission case (w/o Eagle Hitch)

1шт.

3/8" x 1-1/4" N.C. hex. hd. bolt w/lockwasher

8шт.

3/8" x 2" N.C. hex. hd. bolt w/lockwasher

4шт.

G1700

CASE - transmission (Use G14104)

1шт.

G1704

COVER - R.H. brake

1шт.

G1705

COVER - L.H. brake

1шт.

G1708

HOUSING - Eagle Hitch rockshaft (Use G30238 on page 116)

1шт.

G1709

SPACER - clutch pedal (510B, 511B)

1шт.

G1710

HOUSING (Use G14268)

1шт.

G1711

HOUSING (Use G14269)

1шт.

G1728

HOUSING (Use G14268)

1шт.

G1729

HOUSING (Use G14269)

1шт.

G10311

COLLAR

- pilot, for G1027 cover

1шт.

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - axle housing inner seal (5-1/4")

2шт.

G10348

DIPSTICK

- oil level, transmission

1шт.

G10351

GASKET

- dipstick

1шт.

G10447

GASKET

- rear cover

1шт.

G10710

STUD

- front cover to transmission case (3/8" x 1-3/4")

7шт.

3/8" N.F. hex. nut and lockwasher

7шт.

G10748

LINK

ROD - link, clutch, Serial Range: pedal-lever

1шт.

3/32" x 3/4" cotter pin

2шт.

G14104

CASE - transmission, complete (Includes 2 - VT2067 snap ring, 2 - VT2097 bearing cup, 7 - G10710 stud, 2 - 01169AB stud, 8 - V14413 stud, 2 - VT3541 stud, 4 - VT3546 stud and 10 - VT3716 stud)

1шт.

3/4" std. sq. hd. pipe plug

1шт.

1/8" 45 degree fitting (Lincoln #5000)

1шт.

G14268

HOUSING - R.H. rear axle (Includes bearing cups and 2 - A9176 bushing)

1шт.

G14269

HOUSING

- L.H. rear axle (Includes bearing cups and 2 - A9176 bushing)

1шт.

G16782

SPACER - cross shaft (In place of G1071 pedal w/Case-O-Matic)

1шт.

G17013

SHAFT - cross, clutch and brake pedal

1шт.

G46841

GASKET

- front cover

1шт.

G47006

GASKET

- G1097, Serial Range: cover-case

1шт.

G49500

STUD

- torque tube to transmission case (1/2" x 2-3/16")

2шт.

1/2" N.F. hex. nut and lockwasher

2шт.

O1169AB

STUD - torque tube to transmission case (1/2" x 4-7/8") (510B, 511B)

2шт.

1/2" N.F. hex. nut and lockwasher

2шт.

O7166AB

X

BREATHER - cover, transmission case

1шт.

O9276AB

X

SPRING - clutch return

1шт.

V14413

STUD - brake cover to transmission case (1-1/2" x 2-13/16")

8шт.

1/2" N.F. hex. nut and lockwasher

8шт.

VT3541

STUD - drawbar support to transmission case (5/8" x 2")

2шт.

5/8" N.F. hex. nut and lockwasher

2шт.

VT3546

X

STUD - torque tube to transmission case (1/2" x 2-1/2") (4 in 510B, 511B)

6шт.

1/2" N.F. hex. nut and lockwasher

6шт.

VT4489

X

PLUG - button, brake cover

2шт.

VT5179

X

PIN - dowel, torque tube to transmission case (1/2" x 1-5/16")

2шт.

V14401

STUD - axle housing to transmission case (5/8" x 2-11/16")

10шт.

5/8" N.F. hex. nut and lockwasher

10шт.
