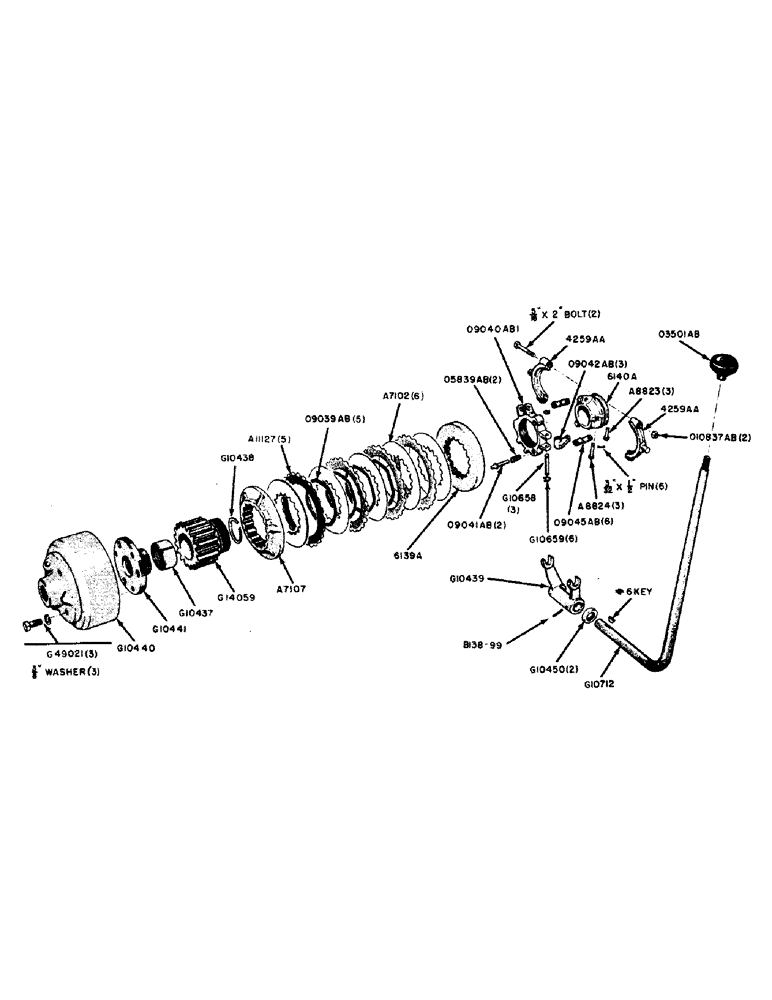

Запчасти Case IH 500B-SERIES (066) - HAND CLUTCH, 510B AND 511B TRACTORS, PARTS FOR MULTIPLE PLATE CLUTCH (06) - POWER TRAIN

G10439

COUPLING

YOKE - hand clutch throw-out

1шт.

G10450

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

OIL SEAL - hand clutch lever

2шт.

G10712

LEVER - hand clutch throw-out

1шт.

#6 Woodruff key

1шт.

O3501AB

X

KNOB - clutch lever

1шт.

O2088FH

X

ROLL PIN - yoke to clutch lever (3/16" x 1-3/8")

1шт.

A7102

CLUTCH DRIVING PLATE

PLATE - hand clutch, driven (Steel ground finish surface)

6шт.

A7107

PLATE

- hand clutch backing

1шт.

A8823

PIN,6.29mm OD x 26.99mm L

- clutch lever link, outer (1-1/32" long), parts for multiple plate clutch

3шт.

3/32" x 1/2" cotter pin, parts for multiple plate clutch

3шт.

A8824

PIN

- clutch lever link, inner (1-15/64" long), parts for multiple plate clutch

3шт.

3/32" x 1/2" cotter pin, parts for multiple plate clutch

3шт.

A11127

PLATE

- clutch drive

5шт.

G10437

BEARING

BUSHING - clutch hub, parts for multiple plate clutch

1шт.

G10438

RING

- internal snap, clutch hub, parts for multiple plate clutch

1шт.

G10440

DRUM HUB

DRUM - clutch, parts for multiple plate clutch

1шт.

G10441

HUB CAP

HUB - clutch drum, parts for multiple plate clutch

1шт.

G10658

AXLE PIN

PIN - clutch finger pivot, parts for multiple plate clutch

3шт.

G10659

SNAP RING,#31, Ext

Ring, Snap, , pivot pin, parts for multiple plate clutch #31, Ext

6шт.

G14059

HUB CAP

HUB - hand clutch assembly w/bushing and snap ring, parts for multiple plate clutch

1шт.

G49021

BOLT (SPREADER)

BOLT - drilled, clutch drum to hub, parts for multiple plate clutch

3шт.

6139A

X

PLATE - clutch pressure

1шт.

6140A

X

SLEEVE - clutch sliding, parts for multiple plate clutch

1шт.

6141A

X

COLLAR (Use 4259AA), parts for multiple plate clutch

1шт.

O5839AB

X

SPRING - clutch adjusting lock pin, parts for multiple plate clutch

2шт.

O9039AB

SPRING

- clutch drive plate separator, parts for multiple plate clutch

5шт.

O9040AB1

X

YOKE - clutch adjusting, parts for multiple plate clutch

1шт.

O9041AB

X

PIN - clutch adjusting lock, parts for multiple plate clutch

2шт.

O9042AB

X

FINGER - clutch, parts for multiple plate clutch

3шт.

O9045AB

LINK - clutch lever, parts for multiple plate clutch

6шт.

O10837AB

STOP NUT - elastic, 5/16" - 24 bolts in 4259AA collar, parts for multiple plate clutch

2шт.

4259AA

X

COLLAR - clutch throw-out (Consists of collar with (2) 5/16" x 2" bolts N.F. hex. and (2) O10837AB stop nuts), parts for multiple plate clutch

1шт.
