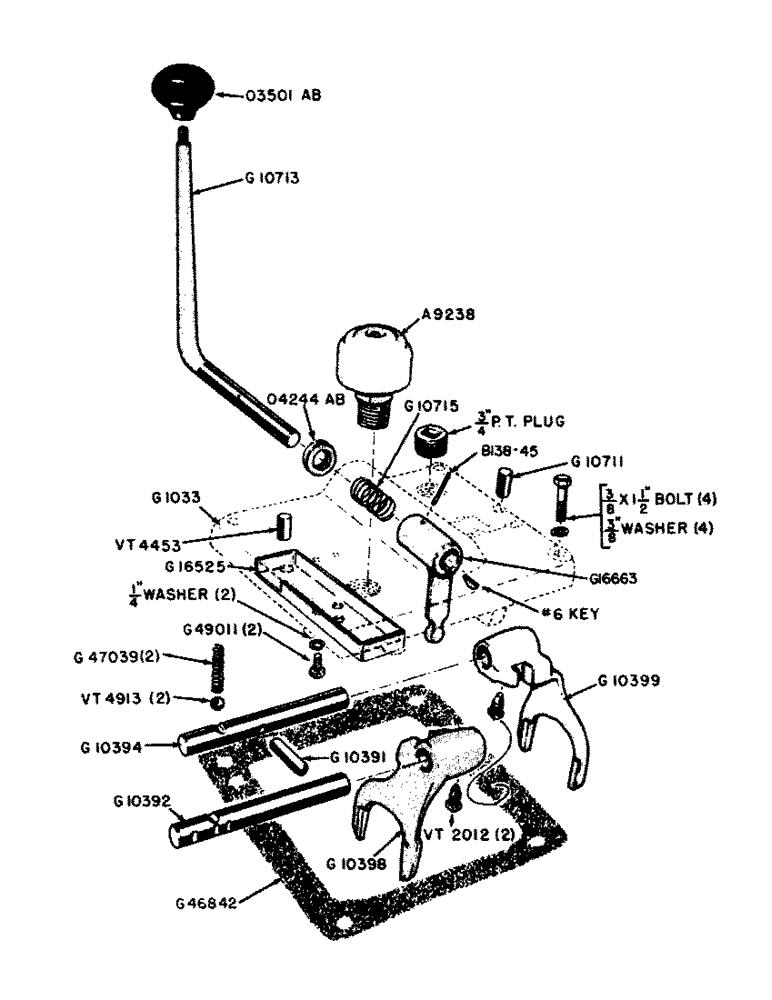

Запчасти Case IH 500B-SERIES (064) - TRIPLE RANGE CONTROL COVER, 510B AND 511B TRACTORS (06) - POWER TRAIN

A9238

BREATHER

- hydraulic oil (Torque tube)

1шт.

A10059

FILTER, ELEMENT

ELEMENT - for A9238 breather

1шт.

G1033

COVER - "Tripl-Range" control

1шт.

3/4" P.T. pipe plug, std., ctsk. head

1шт.

3/8" x 1-1/2" N.C. hex. hd. bolt w/lockwasher

4шт.

G10391

PLUG - shift rail interlock (1.700")

1шт.

G10392

RAIL - shift (Direct and high range)

1шт.

G10394

RAIL - shift (Low range)

1шт.

G10398

FORK TEDDER

FORK - shift (Direct and high range)

1шт.

G10399

FORK - shift (Low range)

1шт.

G10711

PIN

- dowel, cover to torque tube (Rear) 1/2" x 3/4"

1шт.

G10713

LEVER

- "Tripl-Range" control

1шт.

#6 Woodruff key

1шт.

G10715

VALVE SPRING

SPRING - control lever selector

1шт.

G14099

TUBE,1.5, 3.562" L

DIPSTICK - hydraulic oil level

1шт.

G16525

DEFLECTOR - oil, under cover

1шт.

G16663

LEVER - fork shift (Low range)

1шт.

G46842

GASKET

- control cover to torque tube

1шт.

G47039

SPRING

- shift rail detent

2шт.

G49011

BOLT - drilled, oil deflector

2шт.

1/4" lockwasher

2шт.

O3501AB

X

KNOB - "Tripl-Range" shift

1шт.

O4244AB

OIL SEAL - shift lever

1шт.

VT2012

X

SCREW - shift fork lock

2шт.

VT4453

X

PIN - dowel (Cover to torque tube) front, 3/8" x 3/4"

1шт.

VT4913

X

BALL - shift rail interlock detent

2шт.

B138-45

ROLL PIN - shift lever retaining

1шт.
