Запчасти Case IH 500B-SERIES (058) - SHUTTLE TRANSMISSION CONTROL COVER (06) - POWER TRAIN

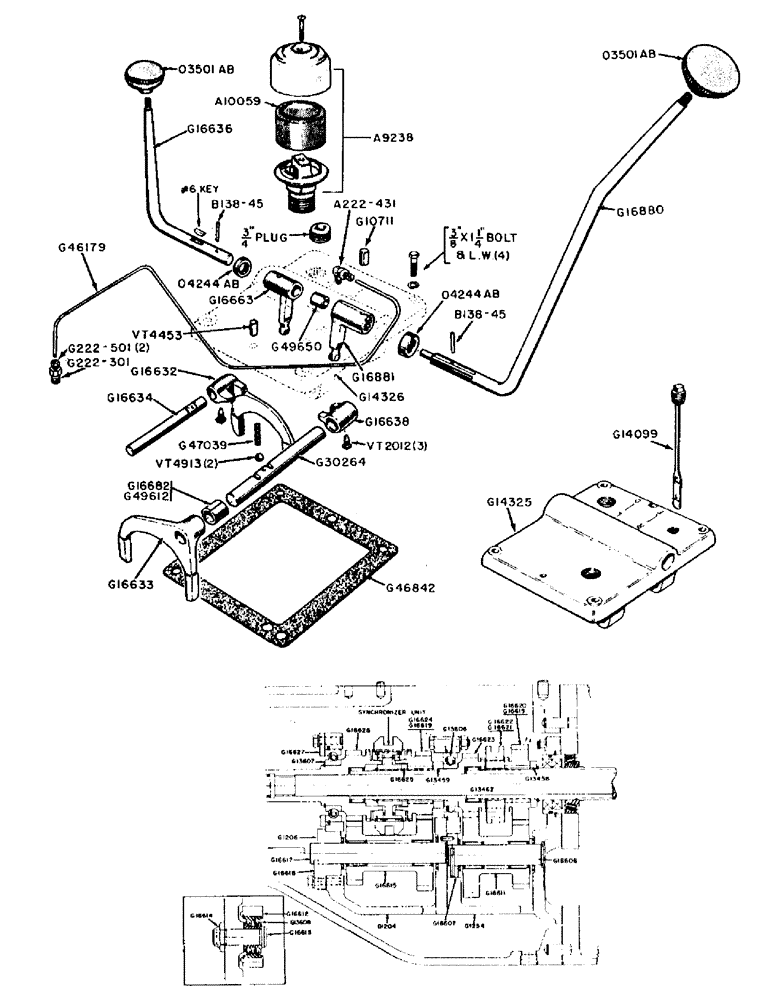

Схема запчастей Case IH 500B-SERIES - (058) - SHUTTLE TRANSMISSION CONTROL COVER (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

A9238

BREATHER

- oil, control cover (Includes A10059 element)

1шт.

A10059

FILTER, ELEMENT

ELEMENT - A9238 breather

1шт.

G1207

COVER (Use G14325)

1шт.

G1257

COVER (Use G14326)

1шт.

G10711

PIN

- dowel, control cover rear (1/2" x 3/4")

1шт.

G14099

TUBE,1.5, 3.562" L

DIPSTICK - oil level (Not used w/Case-O-Matic)

1шт.

G14325

COVER - control, 500B (Includes G49650 bushing)

1шт.

G14326

COVER - control, 600B (Includes G49650 bushing)

1шт.

3/8" x 1-1/4" N.C. hex. hd. bolt w/lockwasher

4шт.

G14327

LEVER - control lever kit (Consists of G16880 control lever, G16881 shift fork lever, G49650 bushing, and B138-45 roll pin)

1шт.

NOTE: Use to replace shift control lever with key way

1шт.

G16632

FORK

- shift, low and direct range

1шт.

G16633

FORK

- shift, shuttle

1шт.

G16634

RAIL

- shift, low and direct range

1шт.

G16636

LEVER - shift control, low range

1шт.

#6 Woodruff key

1шт.

G16638

LUG

- shuttle shift lever rail

1шт.

G16663

LEVER - shift fork, low range (Also used with shuttle control lever having key way)

1шт.

G16682

X

SPACER - shift rail, shuttle (7/8" O.D. x 9/16" long) See G49612

1шт.

G16880

LEVER - shift control, shuttle (See G14327)

1шт.

G16881

LEVER - shift fork, shuttle

1шт.

G30264

KIT

RAIL - shift, shuttle (Includes G49612 spacer)

1шт.

G30277

LEVER - control (Tractors before #6078909. Includes G16880 control lever, G16881 shift lever, G49650 bushing, G16158 shift rail, G49612 rail spacer, and B138-45 roll pin)

1шт.

G46179

LINE - oil, regulator valve to cover (w/Case-O-Matic)

1шт.

G46842

GASKET

- control cover to torque tube

1шт.

G47039

SPRING

- detent ball, shift rail

2шт.

G49612

SPACER

- shift rail, shuttle (7/8" O.D. x 1/2" long) See G16682

1шт.

G49650

BUSHING - control lever (In cover)

1шт.

O3501AB

X

KNOB - control lever

2шт.

O4244AB

OIL SEAL - control lever

2шт.

VT2012

X

SCREW - lock, shift fork and lug

3шт.

VT4453

X

PIN - dowel, control cover front (3/8" x 3/4")

1шт.

VT4913

X

BALL - detent, shift rail interlock

2шт.

B138-45

ROLL PIN - control lever (3/32" x 1")

2шт.

A222-301

FITTING - oil line to regulator valve (888L-3/16" O.D. x 1/8" P.T. includes G222-501 nut)

1шт.

A222-431

ELBOW - oil line to cover (89LB - 3/16" O.D. x 1/8" P.T., includes G222-501 nut)

1шт.

G222-501

NUT - fuel line (61F - 3/16")

2шт.

NOTE: SHUTTLE CONTROL ASSY,G14517 10/17/96

1шт.

Выбрано товаров: 38
