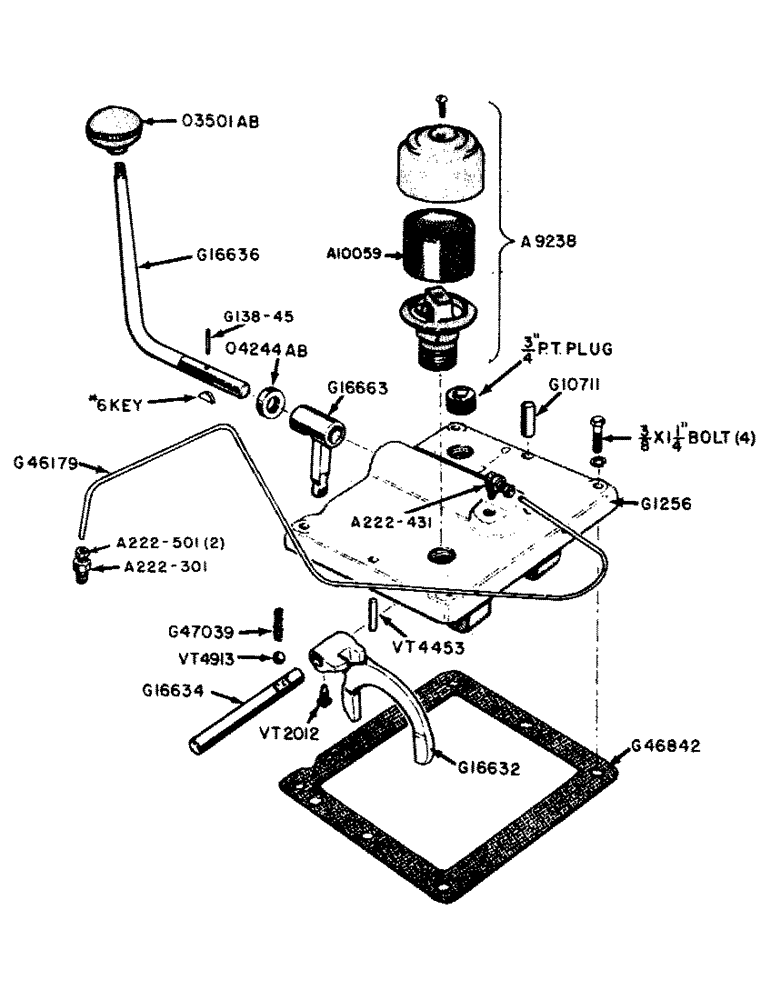

Запчасти Case IH 500B-SERIES (056) - DUAL RANGE CONTROL COVER, 610B AND 611B TRACTORS (06) - POWER TRAIN

A9238

BREATHER

- oil, control cover

1шт.

A10059

FILTER, ELEMENT

ELEMENT - for A9238 breather

1шт.

G1256

COVER - control

1шт.

3/8" x 1-1/4" N.C. hex. hd. bolt w/lockwasher

4шт.

3/4" P.T. ctsk. hd. pipe plug

1шт.

G10711

PIN

- dowel, rear, control cover to torque tube (1/2" x 3/4")

1шт.

G16632

FORK

- shift (Low and direct range)

1шт.

G16634

RAIL

- shift (Low range)

1шт.

G16636

LEVER - shift control (Low range)

1шт.

#6 Woodruff key

1шт.

G16663

LEVER - shift fork

1шт.

G46179

LINE - oil, regulator, Serial Range: valve-cover

1шт.

G46842

GASKET

- control cover to torque tube

1шт.

G47039

SPRING

- shift rail detent

1шт.

O3501AB

X

KNOB - control lever

1шт.

O4244AB

OIL SEAL - control lever

1шт.

VT2012

X

SCREW - lock, shift fork and lug

1шт.

VT4453

X

PIN - dowel, front, control cover to torque tube (3/8" x 3/4")

1шт.

VT4913

X

BALL - detent, shift rail interlock

1шт.

B138-45

ROLL PIN - retaining, shift lever (3/32" x 1")

1шт.

A222-301

FITTING - oil line to regulator valve (888L - 3/16" O.D. x 1/8" P.T., includes G222-501 nut)

1шт.

A222-431

ELBOW - oil line to cover (89LB - 3/16" O.D. x 1/8" P.T., includes G222-501 nut)

1шт.

G222-501

NUT - oil line (61F - 3/16")

2шт.
