(055) - INSTRUMENT PANEL, CASE-O-MATIC DRIVE

Запчасти Case IH 500B-SERIES (055) - INSTRUMENT PANEL, CASE-O-MATIC DRIVE (06) - POWER TRAIN

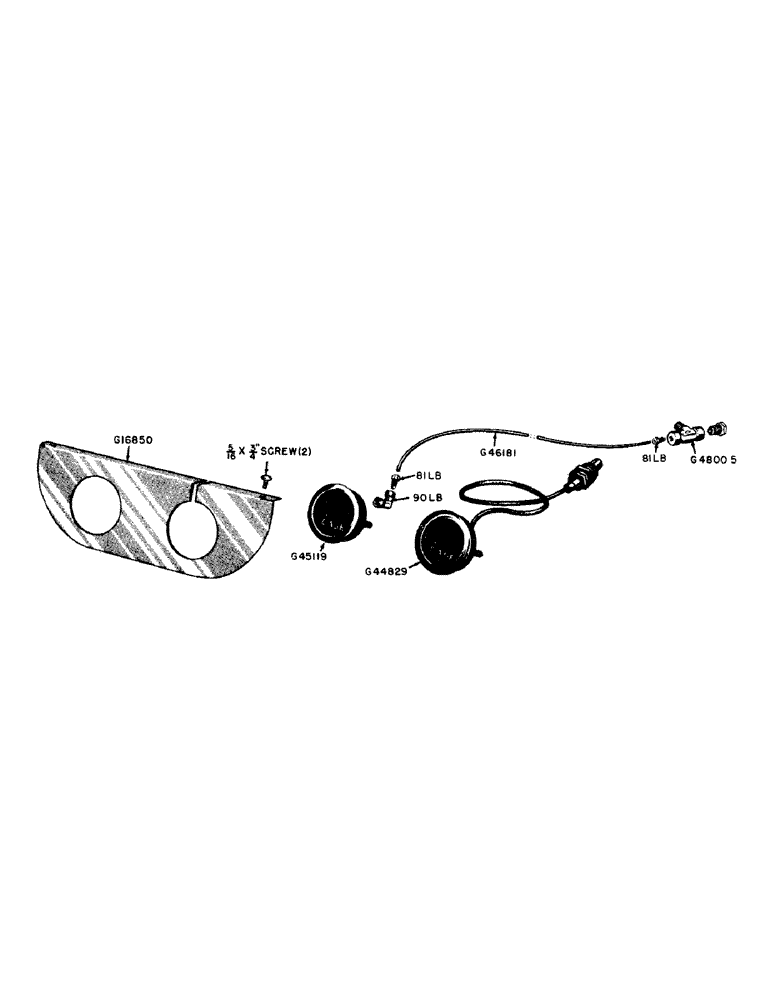

Схема запчастей Case IH 500B-SERIES - (055) - INSTRUMENT PANEL, CASE-O-MATIC DRIVE (06) - POWER TRAIN
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

G16850

PANEL - Case-O-Matic drive gages

1шт.

5/16 x 3/4" truss hd. mach. screw

2шт.

G44829

GAUGE

GAGE - temperature, Case-O-Matic oil

1шт.

G45119

GAUGE

GAGE - pressure, Case-O-Matic oil

1шт.

90 lb - 1/8" O.D. x 1/8" P.T. elbow - includes 81 lb - 1/8" tube nut

1шт.

G46181

LINE - oil pressure 0.125" OD x 23" L

1шт.

G48005

TEE

FILLING - tee, control valve (Includes 81 lb - 1/8" tube nut)

1шт.
