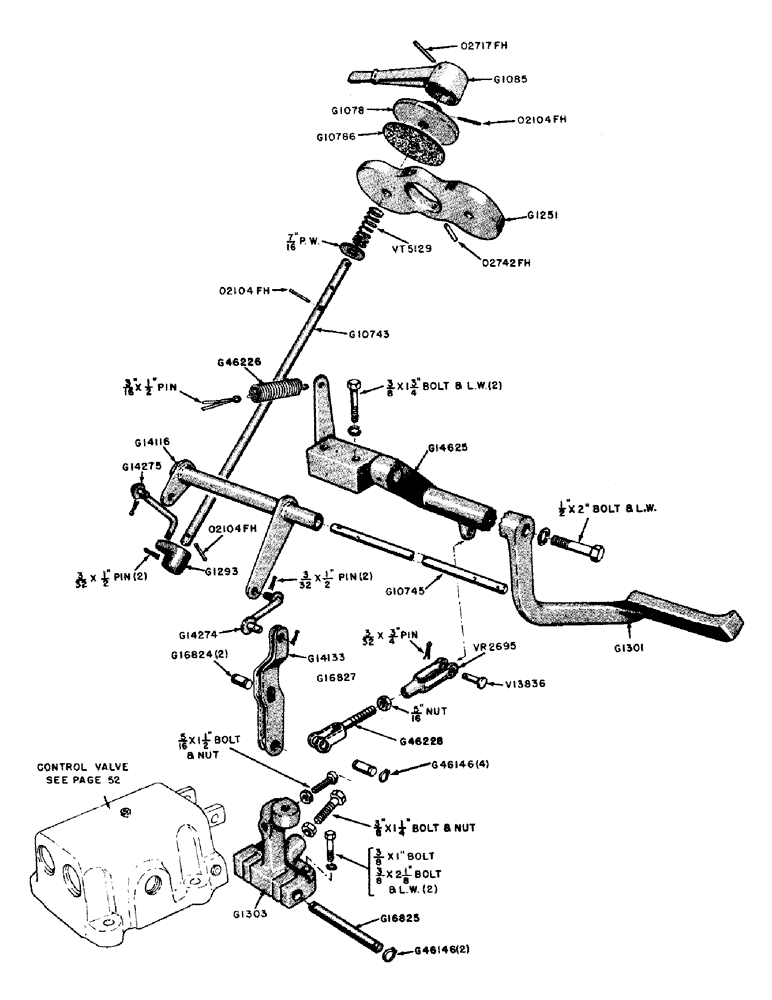

Запчасти Case IH 500B-SERIES (054) - CASE-O-MATIC CONTROL VALVE LINKAGE (06) - POWER TRAIN

B138-75

ROLL PIN (5/32" x 7/8")

3шт.

B138-82

ROLL PIN (5/32" x 1-5/8") G1085 handle

1шт.

G1078

PLATE

- friction, hand lever

1шт.

G1085

LEVER

HANDLE - control, direct drive

1шт.

G1292

SUPPORT (Use G14625)

1шт.

G1293

LEVER - lower, direct drive control

1шт.

G1301

PEDAL - foot, Case-O-Matic control

1шт.

1/2" x 2" N.C. hex. hd. bolt w/lockwasher

1шт.

G1302

LEVER (Use G14625)

1шт.

G1303

BRACKET - L.H. rear, steering support

1шт.

3/8" x 1" N.C. hex. hd. bolt w/lockwasher

1шт.

3/8" x 2-1/8" N.C. hex. hd. bolt w/lockwasher

1шт.

G10743

SHAFT - control valve hand lever

1шт.

G10786

DISC

FRICTION - disk - hand control lever

1шт.

G14116

CROSS SHAFT AND LEVER ASSEMBLY - direct drive

1шт.

G14133

LINK - control, direct drive spool

1шт.

G14274

LINK - L.H., cross shaft assembly

1шт.

3/32" x 1/2" cotter pin

2шт.

G14275

LINK - R.H., cross shaft assembly

1шт.

3/32" x 1/2" cotter pin

2шт.

G14625

CLUTCH LEVER ASSEMBLY (Includes clutch lever, shaft, support, O2068FH roll pin and bushings)

1шт.

3/8" x 1-3/4" N.C. hex. hd. bolt w/lockwasher

2шт.

G16824

AXLE PIN

PIN - upper pivot, direct drive control links

2шт.

G16825

PIN

- lower pivot, direct drive control links

1шт.

G46146

SNAP RING,#37, Ext

Ring, Snap, , pivot pin, direct drive link #37, Ext

6шт.

G46226

X

SPRING - return, clutch pedal

1шт.

3/16" x 1" cotter pin

1шт.

G46228

YOKE

- link, Case-O-Matic drive spool

1шт.

5/16" N.F. hex. jam nut

1шт.

V13836

PIN - yoke, VR2695

1шт.

3/32" x 3/4" cotter pin

1шт.

VR2695

X

YOKE - control rod, direct drive

1шт.

VT5129

X

SPRING - tension, Case-O-Matic control hand lever

1шт.
