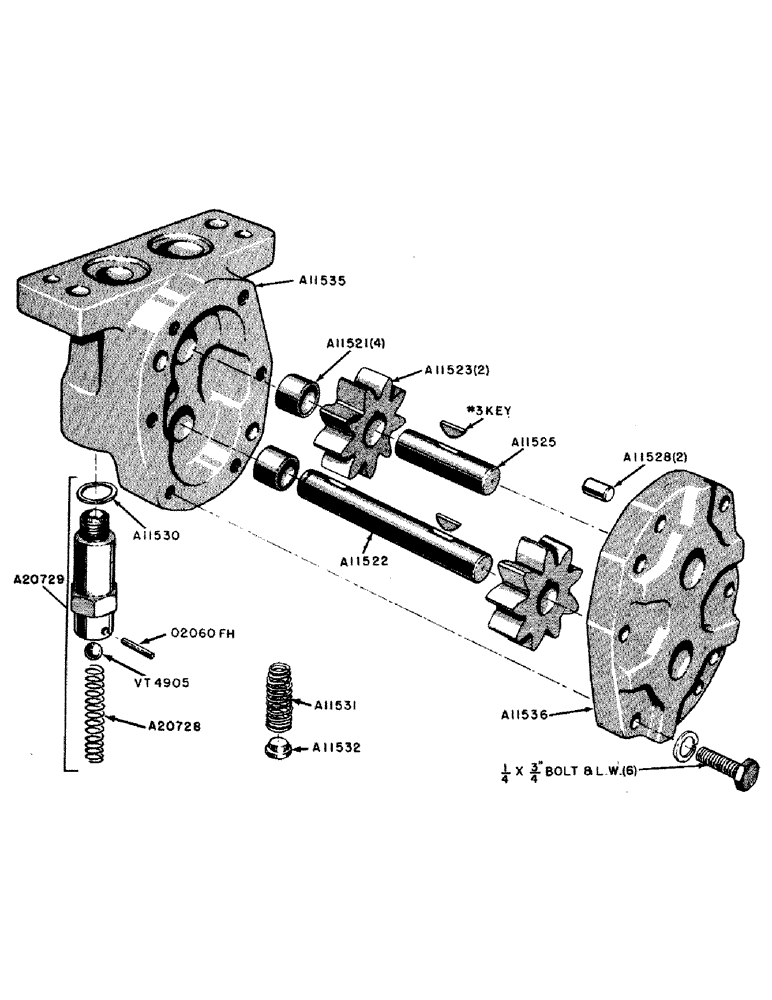

Запчасти Case IH 500B-SERIES (052) - PARTS FOR A11534 CASE-O-MATIC DRIVE PUMP (06) - POWER TRAIN

A11520

HOUSING (Use A11535)

1шт.

A11521

BUSHING,11.89mm ID x 15.93mm OD x 12.83mm L

- oil pump shaft

4шт.

A11522

SHAFT

- drive

1шт.

A11523

GEAR

- oil pump

2шт.

#3 Woodruff key

2шт.

A11525

SHAFT

- idler

1шт.

A11527

COVER (Use A11536)

1шт.

A11528

PIN,7.81mm OD x 14.29mm L

DOWEL PIN -, Serial Range: cover-pump

2шт.

A11529

BODY - relief valve (Use A20729)

1шт.

A11530

GASKET

- relief valve

1шт.

A11531

SPRING - relief valve (Before tractor #6128060)

1шт.

A11532

SEAT - spring, relief valve (Before tractor #6128060)

1шт.

A11534

PUMP, HYDRAULIC

PUMP ASSEMBLY COMPLETE

1шт.

A11535

HOUSING - oil pump (Includes 2-A11521 bushings)

1шт.

A11536

COVER - oil pump (Includes 2-A11521 bushings)

1шт.

1/4" x 3/4" N.C. hex hd. bolt w/lockwasher

6шт.

A20728

SPRING - relief valve (Tractor #6128060 and after)

1шт.

A20729

X

VALVE - relief (Includes body, VT4905 ball, A20728 spring and 02060FH roll pin)

1шт.

O2060FH

X

ROLL PIN - relief valve (1/8" x 3/4")

1шт.

VT4905

X

BALL - steel, relief valve (5/16" dia.)

1шт.
