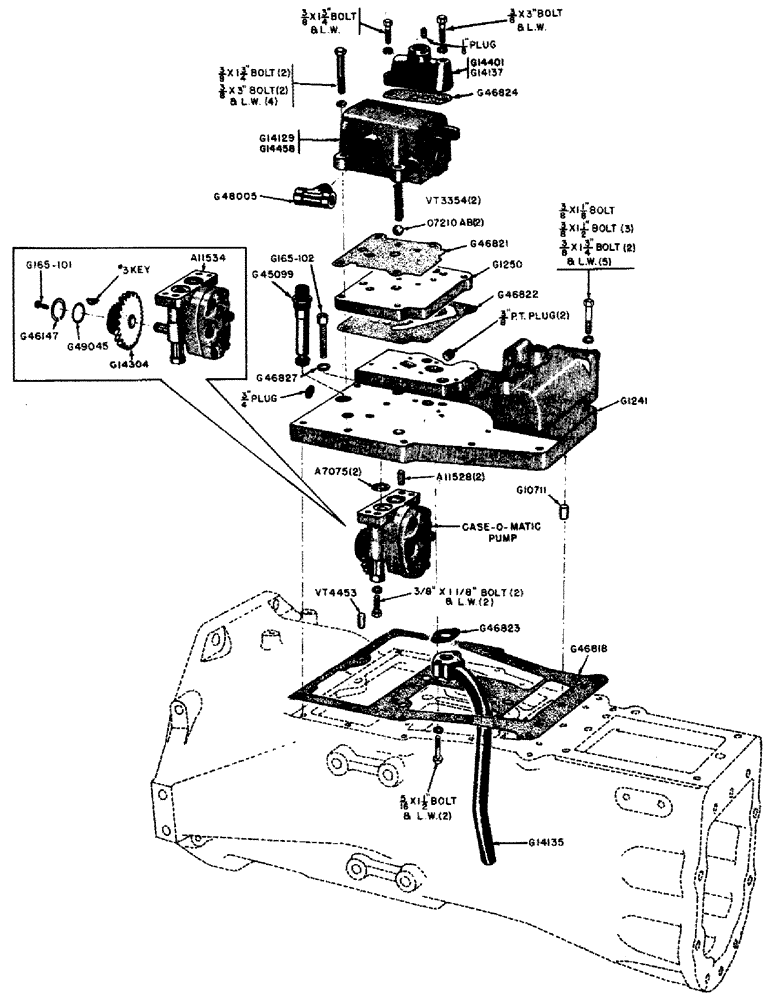

Запчасти Case IH 500B-SERIES (050) - ADAPTER HOUSING, CONTROL VALVE AND PUMP, CASE-O-MATIC DRIVE (06) - POWER TRAIN

A7075

GASKET

GASKET - A11534, Serial Range: pump-adapter

1шт.

A11528

PIN,7.81mm OD x 14.29mm L

- dowel, A11534, Serial Range: pump-adapter

1шт.

A11534

PUMP, HYDRAULIC

PUMP - Case-O-Matic drive (See page 52)

1шт.

3/8" x 1-1/8" N.C. hex. hd. bolt w/lockwasher

2шт.

G165-101

SCREW - self-locking, gear to Case-O-Matic pump (1/4" x 3/8")

1шт.

G165-102

SCREW - self-locking, adapter plate to torque tube (3/8" x 1-3/4")

1шт.

G1241

HOUSING - adapter, Case-O-Matic drive pump and controls

1шт.

3/8" socket hd. pipe plug (Short)

2шт.

3/4" expansion plug

1шт.

3/8" x 1-1/8" N.C. hex. hd. bolt w/lockwasher

1шт.

3/8" x 1-1/2" N.C. hex. hd. bolt w/lockwasher

3шт.

3/8" x 1-3/4" N.C. hex. hd. bolt w/lockwasher

2шт.

G1246

ELBOW (Use G14135)

1шт.

G1250

PLATE - oil distribution

1шт.

G10711

PIN

- rear dowel, adapter housing to torque tube

1шт.

G14129

VALVE - control (Tractors w/shuttle transmission) See G14458

1шт.

3/8" x 1-3/4" N.C. hex. hd. bolt w/lockwasher

2шт.

3/8" x 3" N.C. hex. hd. bolt w/lockwasher

2шт.

G14135

X

TUBE - suction, A11534 pump

1шт.

5/16" x 1-1/4" N.C. hex. hd. bolt w/lockwasher

2шт.

G14137

VALVE - regulator (Before tractor #6121614) See G14401

1шт.

3/8" x 1-3/4" N.C. hex. hd. bolt w/lockwasher

1шт.

3/8" x 3" N.C. hex. hd. bolt w/lockwasher

1шт.

1/8" socket hd. pipe plug (w/4 speed transmission only)

1шт.

G14304

GEAR - drive, Case-O-Matic pump and tachometer

1шт.

#3 Woodruff key

1шт.

G14401

X

VALVE - regulator (Tractor #6121614 and after) See G14137

1шт.

G14458

VALVE - control (Tractors without shuttle transmission) See G14129

1шт.

G45099

TACHOMETER DRIVE SLEEVE AND GEAR ASSEMBLY

1шт.

G46147

SNAP RING,0.625", Int, #62

Ring, Snap, , pump drive gear 0.625", Int, #62

1шт.

G46818

GASKET

- adapter housing to torque tube

1шт.

G46821

GASKET

- control valve to oil distributor plate

1шт.

G46822

GASKET

- oil distribution plate to adapter housing

1шт.

G46823

GASKET

- G14135 suction tube

1шт.

G46824

GASKET

- regulator, Serial Range: valve-plate

1шт.

G46827

SEAL

WASHER - sealing, adapter housing

1шт.

G48005

TEE

FITTING - tee, control valve (1/2" O.D. x 1/2" P.T.)

1шт.

G49045

WASHER

- retainer, tachometer drive gear

1шт.

O7210AB

X

BALL - detent, control valve spool (1/2" dia.)

2шт.

VT3354

X

SPRING - detent ball, control valve spool

2шт.

VT4453

X

PIN - dowel, front of adapter housing

1шт.
