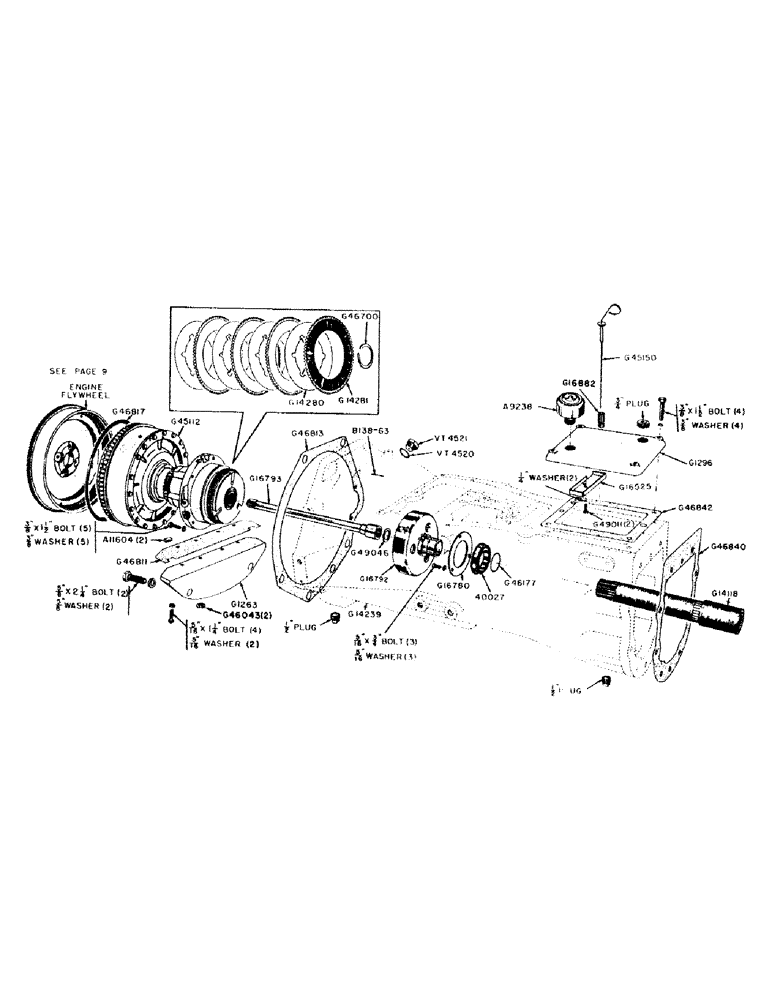

Запчасти Case IH 500B-SERIES (048) - TORQUE TUBE, CASE-O-MATIC DRIVE (06) - POWER TRAIN

.

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

- traction clutch driven cup (N.D. #43L10)

1шт.

.

A9238

BREATHER

- rear cover

1шт.

.

A10059

FILTER, ELEMENT

ELEMENT - for A9238 breather

1шт.

.

A11604

OIL PAN GASKET SET

- front cover to oil pan

2шт.

.

B138-63

ROLL PIN - timing pointer (1/8" x 1-1/4")

1шт.

.

G1240

TORQUE TUBE (Use G14239)

1шт.

.

G1263

COVER - front end, torque tube (w/dual or single front wheel)

1шт.

.

5/16" x 1-1/4" N.C. hex. hd. bolt w/lockwasher

4шт.

.

5/8" x 2-1/4" N.C. hex. hd. bolt w/lockwasher

2шт.

.

G1296

COVER - rear top, torque tube (w/4 speed transmission)

1шт.

.

3/4" ctsk. hd. pipe plug

1шт.

.

3/8" x 1-1/2" N.C. hex. hd. bolt w/lockwasher

4шт.

.

G14118

COUPLING - torque converter to transmission (w/4 speed transmission only)

1шт.

.

G14239

TUBE - torque (Includes G16682 dipstick support)

1шт.

.

1/2" std. sq. hd. pipe plug

2шт.

.

G14280

CLUTCH ASSEMBLY

PLATE - clutch (Set of 4 steel plate for Case-O-Matic clutch)

1шт.

.

G14281

CLUTCH ASSEMBLY

PLATE - clutch (Set of 4 sintered plates for Case-O-Matic clutch)

1шт.

.

G16525

DEFLECTOR - oil (Under G1296 cover)

1шт.

.

G16882

SUPPORT - dipstick

1шт.

.

G16780

CAP - bearing retainer

1шт.

.

5/16" x 3/4" N.C. hex. hd. bolt w/lockwasher

3шт.

.

G16792

DRUM HUB

DRUM - driven, traction clutch

1шт.

.

G16793

X

SHAFT - P.T.O. drive

1шт.

.

G30373

CONVERTER

TORQUE CONVERTER (replaces G45112)

1шт.

.

3/8" x 1-1/2" N.C. hex. hd. bolt w/lockwasher

5шт.

.

G45150

DIPSTICK

- oil level, torque tube

1шт.

.

G46843

X

WASHER - sealing, G1263 front cover (replaces G46043)

2шт.

.

G46177

SNAP RING,#196, 1.849", Ext

- cup bearing

1шт.

.

G46700

SNAP RING

- retaining, torque converter clutch

1шт.

.

G46811

GASKET

- front, Serial Range: cover-engine

1шт.

.

G46813

GASKET

- torque, Serial Range: tube-engine

1шт.

.

G46817

GASKET,293.62mm ID x 314.58mm OD x 4.95mm Thk

-, Serial Range: coverter-flywheel

1шт.

.

G46840

GASKET

GASKET - torque tube to transmission case

1шт.

.

G46842

GASKET

- G1296 rear cover

1шт.

.

G49011

CAP SCREW - oil deflector

2шт.

.

1/4" lockwasher

2шт.

.

G49046

WASHER

- thrust, main, Serial Range: shaft-drum

1шт.

.

VT4520

X

GASKET - timing hole plug

1шт.

.

VT4521

X

PLUG - timing hole

1шт.

REFER TO ILLUSTRATION PAGE,REFER TO PTO SHAFT AND TORQUE CONVERTER, BETWEEN THOSE TWO PARTS PICTURED IS A BUSHING PART IS G49634

1шт.
