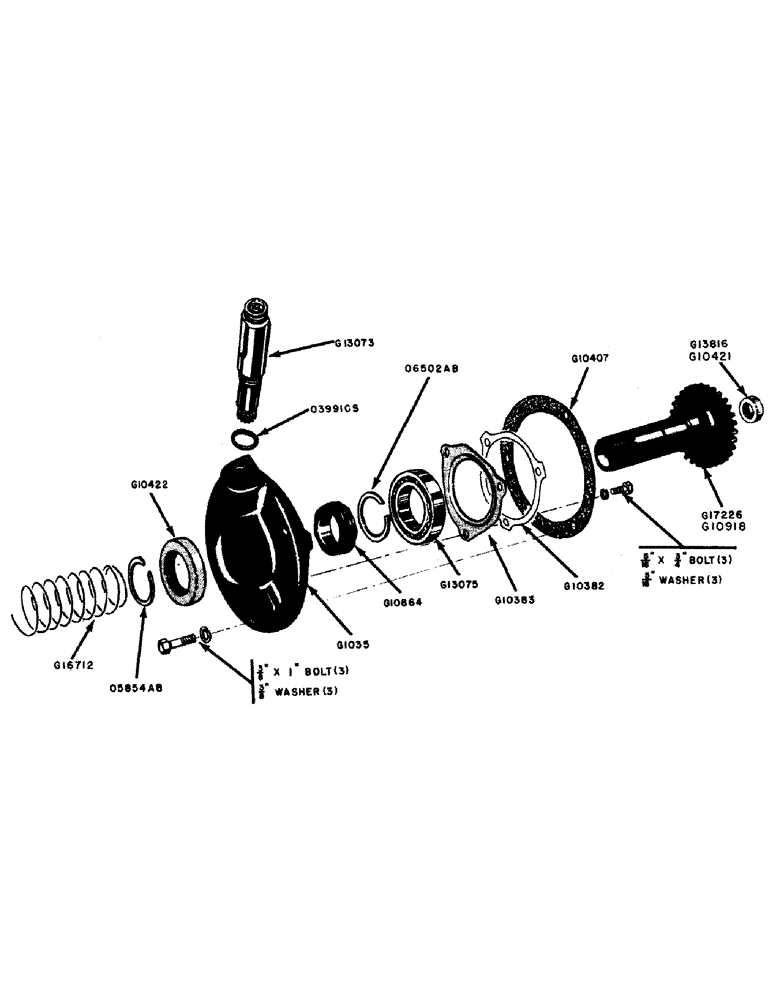

Запчасти Case IH 500B-SERIES (046) - HYDRAULIC PUMP AND TACHOMETER DRIVE, 510B AND 511B TRACTORS (06) - POWER TRAIN

G1035

HOUSING - hydraulic pump and tachometer drive

1шт.

3/8" x 1" N.C. hex. hd. bolt w/lockwasher

3шт.

G10382

LOCK

- bearing retainer bolt

1шт.

5/16" x 3/4" N.C. hex. hd. bolt w/lockwasher

3шт.

G10383

BEARING CAP

CAP - bearing retainer

1шт.

G10407

GASKET

- pump drive housing

1шт.

G10421

OIL SEAL

- pump drive gear (Before tractor #6097696)

1шт.

G10422

OIL SEAL

OIL SEAL - drive housing

1шт.

G10864

GEAR - tachometer drive

1шт.

G10918

GEAR - hydraulic pump drive (Before tractor #6097696)

1шт.

G13073

TACHOMETER DRIVE SLEEVE AND GEAR ASSEMBLY

1шт.

G13075

BEARING, BALL

BEARING - pump drive gear (N.D. #3L09)

1шт.

G13816

OIL SEAL

OIL SEAL - pump drive gear (Tractor #6097696 and after)

1шт.

G16712

VALVE SPRING

SPRING - release, bearing carrier

1шт.

G17226

GEAR WHEEL

GEAR - hydraulic pump drive (Tractor #6097696 and after)

1шт.

O5854AB

X

SNAP RING - oil, Serial Range: seal-housing

1шт.

O6502AB

RING, SNAP

SNAP RING - drive gear bearing

1шт.

O3991CS

X

"O" RING - tachometer drive

1шт.
