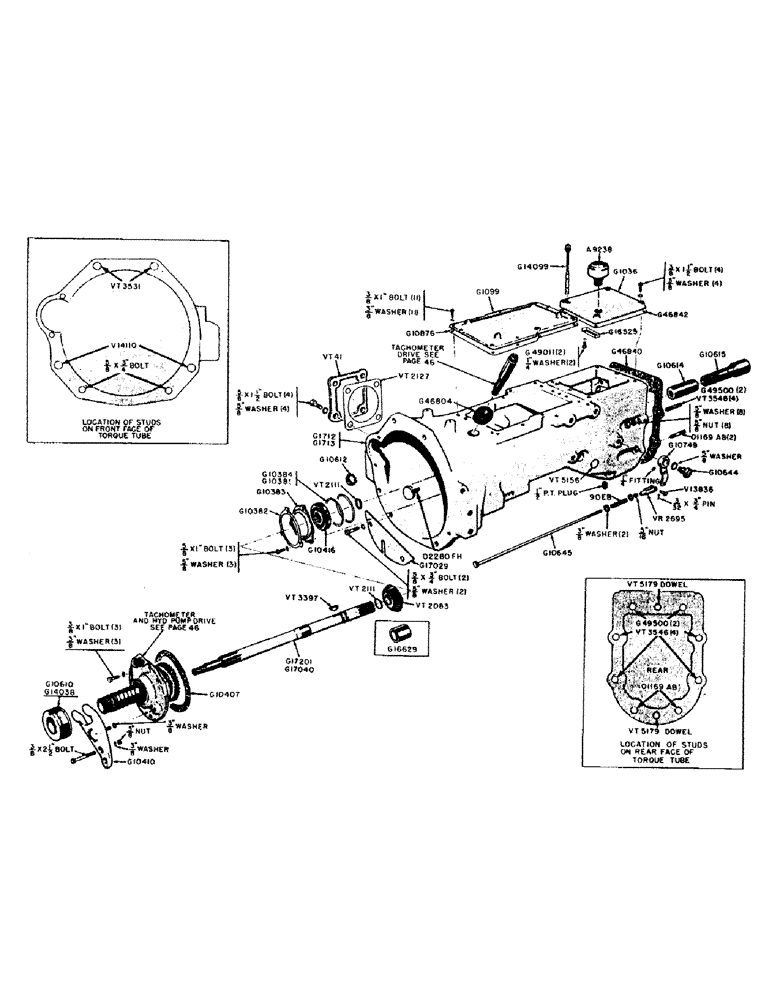

Запчасти Case IH 500B-SERIES (044) - TORQUE TUBE, 510B AND 511B TRACTORS (06) - POWER TRAIN

.

A9238

BREATHER

- rear cover, torque tube

1шт.

.

A10059

FILTER, ELEMENT

ELEMENT - for A9238 breather

1шт.

.

G1036

COVER - rear, torque tube (4 speed transmission)

1шт.

.

3/8" x 1-1/2" N.C. hex. hd. bolt w/lockwasher

4шт.

.

G1099

COVER

- front, torque tube (Tractor without hydraulics)

1шт.

.

3/8" x 1" N.C. hex. hd. bolt w/lockwasher

11шт.

.

G1712

TUBE - torque

1шт.

.

1/2" std. sq. hd. pipe plug

1шт.

.

G1713

TUBE - torque (w/shuttle transmission)

1шт.

.

G10382

LOCK

- bearing retainer, clutch mainshaft

1шт.

.

5/16" x 1" N.C. hex. hd. bolt w/lockwasher

3шт.

.

G10383

BEARING CAP

CAP - bearing clutch shaft

1шт.

.

G10384

SHIM - bearing, clutch shaft (.005")

1шт.

.

G10385

SHIM - bearing, clutch shaft (.010")

1шт.

.

G10407

GASKET

- tachometer drive housing

1шт.

.

G10410

X

YOKE - clutch throwout

1шт.

.

3/8" x 2-1/2" hex. hd. bolt (N.C. cut thrd.) w/hex. nut and lockwasher

1шт.

.

G10416

BALL BEARING,30mm ID x 72mm OD x 19mm W

BEARING - clutch shaft, includes snap ring (N.D. #43306)

1шт.

.

G10610

BEARING ASSY

BEARING - throwout (510B utility) See G14038

1шт.

.

G10612

COVER

- plug button, timing hole

1шт.

.

G10614

SLEEVE - coupling, clutch shaft to mainshaft (Tractors without hand clutch)

1шт.

.

G10615

SLEEVE - coupling, clutch shaft to mainshaft (4 speed transmission only)

1шт.

.

G10644

SCREW

BOLT - shoulder, clutch lever

1шт.

.

5/8" ET Shakeproof lockwasher

1шт.

.

G10645

ROD - clutch throwout

1шт.

.

G10749

LEVER - clutch throwout rod

1шт.

.

1/4" grease fitting (Lincoln #5013)

1шт.

.

G10876

GASKET

- for G1099 front cover

1шт.

.

G14038

BEARING ASSY,39.75mm ID x 82.55mm OD x 33.34mm W

BEARING - throwout (511B gen. purpose) See G10610

1шт.

.

G14099

TUBE,1.5, 3.562" L

DIPSTICK - oil level (In rear cover)

1шт.

.

G16525

DEFLECTOR - oil, under G1036 cover

1шт.

.

G16629

SPACER - clutch shaft (Replaces VT2083 gear with shuttle transmission)

1шт.

.

G17029

COVER - flywheel

1шт.

.

5/8" x 3/4" N.C. hex. hd. bolt w/lockwasher

2шт.

.

G17040

SHAFT - clutch main drive (Before tractor #6097696)

1шт.

.

G17201

SHAFT - clutch main drive (Tractor #6097696 and after)

1шт.

.

G46804

SEAL - rubber, tachometer drive opening

1шт.

.

G46840

GASKET

GASKET - torque tube to transmission case

1шт.

.

G46842

GASKET

- G1036 rear cover to torque tube

1шт.

.

G49011

CAP SCREW - oil deflector

2шт.

.

1/4" lockwasher

2шт.

.

G49500

STUD

- upper, torque tube to transmission (1/2" x 2-3/16")

2шт.

.

1/2" N.C. hex. nut and lockwasher

2шт.

.

O1169AB

STUD - torque tube to transmission case (1/2" x 4-7/8")

2шт.

.

1/2" N.C. hex. nut and lockwasher

2шт.

.

O2280FH

X

ROLL PIN - timing pointer (1/8" x 1-1/2")

1шт.

.

V13836

PIN - yoke, clutch rod

1шт.

.

3/32" x 3/4" cotter pin

1шт.

.

V14110

BOLT - ground body, torque tube to engine (5/8" x 3-1/2")

2шт.

.

5/8" N.F. hex. nut and lockwasher

2шт.

.

VR2695

X

YOKE - clutch rod

1шт.

.

5/16" N.F. hex. jam nut

1шт.

.

VT41

COVER - belt pulley opening

1шт.

.

5/8" x 1-1/2" N.C. hex. hd. bolt w/IT Shakeproof lockwasher

4шт.

.

VT2083

GEAR - drive, belt pulley (17T)

1шт.

.

VT2111

X

SNAP RING - retaining gear and bearing

2шт.

.

VT2127

X

GASKET - VT41 cover

1шт.

.

VT3397

KEY - belt pulley drive gear (#15 Woodruff)

1шт.

.

VT3531

X

STUD - torque tube to engine (5/8" x 3")

2шт.

.

5/8" N.C. hex. nut and lockwasher

2шт.

.

VT3546

X

STUD - torque tube to transmission case (1/2" x 2-1/2")

4шт.

.

1/2" N.C. hex. nut and lockwasher

4шт.

.

VT5156

PLUG - expansion, hand clutch lever opening (1-1/4" Hubbard)

1шт.

.

VT5179

X

DOWEL - torque, Serial Range: tube-transmission

2шт.

.

90EB

SPRING - clutch rod

1шт.

.

3/8" plain washer

2шт.
