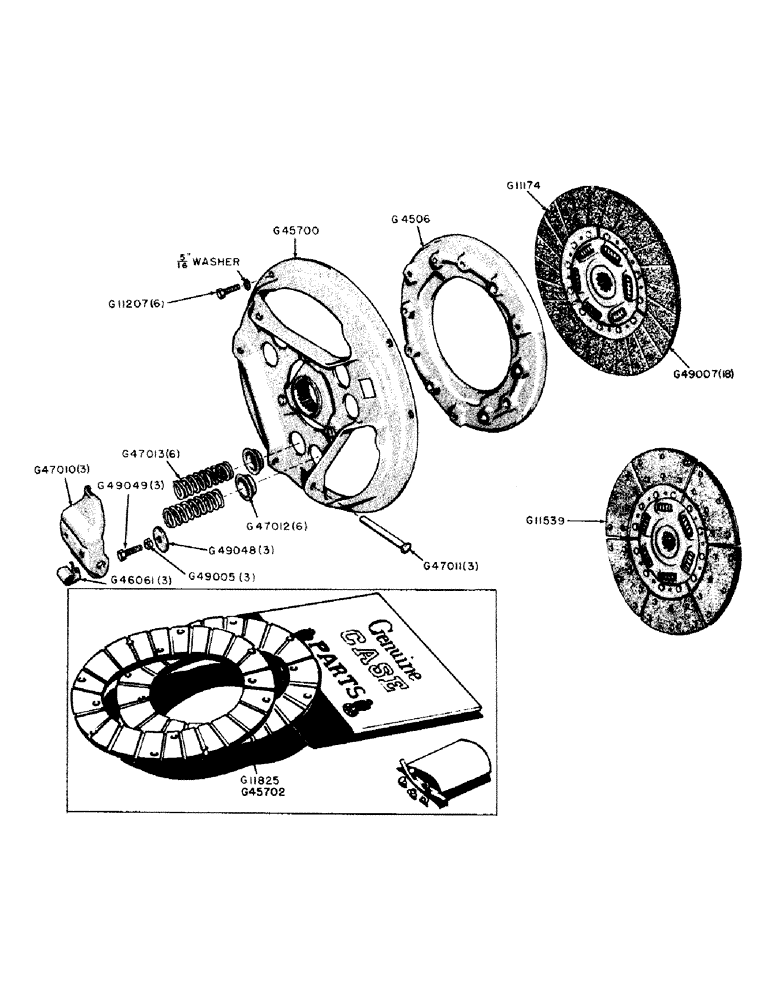

Запчасти Case IH 500B-SERIES (043) - 11" CLUTCH, 510B UTILITY TRACTOR (06) - POWER TRAIN

G4506

PLATE

- pressure

1шт.

Part of complete assembly pressure plate P/N G11173

1шт.

G11173

X

PLATE - pressure (Complete assembly, Includes: Ref. P/N G4506, G45700, G46061, G47010, G47011, G47012, G47013, G49005, G49048, G49049)

1шт.

G11174

PLATE

- driving, with facings (See G11539)

1шт.

G11207

BOLT

- pressure plate to flywheel (5/16" x 1")

6шт.

5/16" lockwasher

6шт.

G11539

PLATE ASSY.

PLATE - driving, with facings (Heavy duty)

1шт.

G11825

KIT - clutch facings for G11539 plate (Includes facings and 20 - G49007 rivets)

1шт.

G45700

X

BRACKET AND HUB - pressure plate

1шт.

Part of complete assembly pressure plate P/N G11173

1шт.

G45702

KIT - clutch facings for G11174 plate (Includes linings and 20 - G49007 rivets)

1шт.

G46061

CLIP

- clutch return

3шт.

Part of complete assembly pressure plate P/N G11173

1шт.

G47010

LEVER

- clutch

3шт.

Part of complete assembly pressure plate P/N G11173

1шт.

G47011

PIN

- pivot

3шт.

Part of complete assembly pressure plate P/N G11173

1шт.

G47012

CUP - spring

6шт.

Part of complete assembly pressure plate P/N G11173

1шт.

G47013

SPRING

- lever (White)

6шт.

Part of complete assembly pressure plate P/N G11173

1шт.

G49005

NUT - jam, adjusting screw

3шт.

Part of complete assembly pressure plate P/N G11173

1шт.

G49007

RIVET - clutch facings

18шт.

G49048

WASHER

- adjusting screw

3шт.

Part of complete assembly pressure plate P/N G11173

1шт.

G49049

X

SCREW - adjusting

3шт.

Part of complete assembly pressure plate P/N G11173

1шт.
