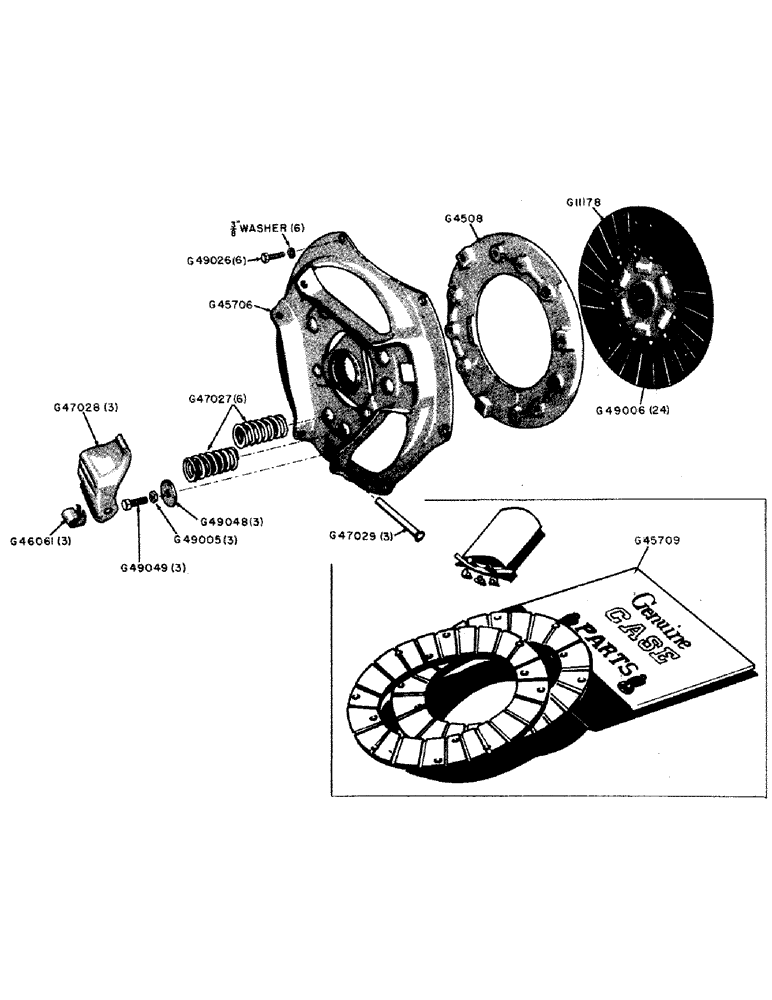

Запчасти Case IH 500B-SERIES (042) - 10" CLUTCH, 511B GENERAL PURPOSE TRACTOR (06) - POWER TRAIN

G4508

X

PLATE - pressure

1шт.

Part of complete pressure plate assembly P/N G11177

1шт.

G11177

X

PLATE - pressure Complete assembly, Includes: Ref. P/N G4508, G45706, G46061, G47027, G47028, G47029, G49005, G49048, G49049

1шт.

G11178

PLATE

- driving, with facings

1шт.

G45706

X

BRACKET AND HUB - pressure plate

1шт.

Part of complete pressure plate assembly P/N G11177

1шт.

G45709

KIT - clutch facings for G11178 plate (Includes facings and 30 - G49006 rivets)

1шт.

G46061

CLIP

- clutch return

3шт.

Part of complete pressure plate assembly P/N G11177

1шт.

G47027

SPRING

- lever (Light green)

6шт.

Part of complete pressure plate assembly P/N G11177

1шт.

G47028

LEVER

- clutch

3шт.

Part of complete pressure plate assembly P/N G11177

1шт.

G47029

PIN

- pivot, lever

3шт.

Part of complete pressure plate assembly P/N G11177

1шт.

G49005

NUT - jam, adjusting screw

3шт.

Part of complete pressure plate assembly P/N G11177

1шт.

G49006

RIVET - clutch facings (12 for G11538, 24 for G11178)

24шт.

G49026

BOLT - pressure plate to flywheel (3/8" x 1-1/4")

6шт.

3/8" lockwasher

6шт.

G49048

WASHER

- adjusting screw

3шт.

Part of complete pressure plate assembly P/N G11177

1шт.

G49049

X

SCREW - adjusting, pressure plate

3шт.

Part of complete pressure plate assembly P/N G11177

1шт.
