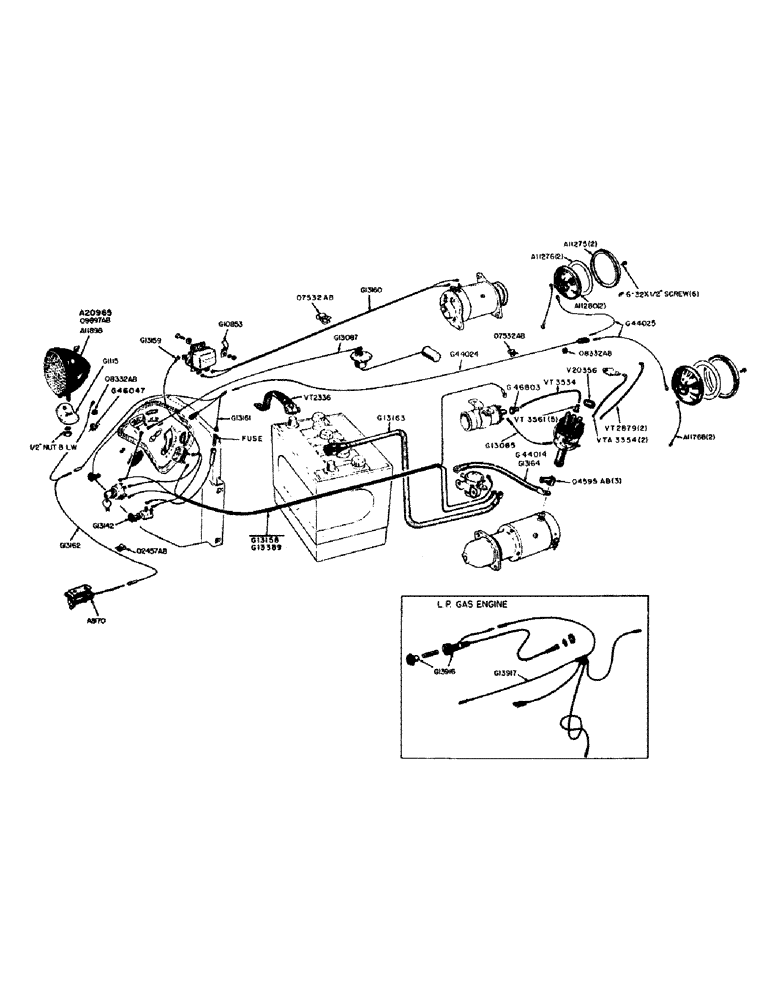

Запчасти Case IH 500B-SERIES (030) - HEAD LAMPS AND ELECTRIC CABLES, HEAD LAMP AND TAIL LAMP (04) - ELECTRICAL SYSTEMS

A8170

SOCKET

- electrical outlet

1шт.

#10-24 x 1/2" rd. hd. mach. screw w/hex. nut and lockwasher

2шт.

A11275

RING

- retainer, head lamp

2шт.

#6-32 x 1/2" pan. hd. #1 self tapping screw

6шт.

A11276

GASKET

- head, Serial Range: lamp-ring

2шт.

A11280

LAMP

- head, R.H. and L.H.

2шт.

A11768

ELECTRICAL WIRE

CABLE - head, Serial Range: lamp-ground

2шт.

#8-32 x 1/4" rd. hd. mach screw

2шт.

A11898

X

LAMP - combination flood and tail. See A20965. (See page 36 for difference)

1шт.

1/2" N.C. hex. nut and lockwasher

1шт.

A20965

LAMP BASE

LAMP - combination flood and tail (w/sealed unit) See page 36)

1шт.

G1115

BRACKET

- tail lamp

1шт.

3/8" x 3/4" carr. bolt w/hex. nut and lockwasher

2шт.

G10853

CLIP - fuse holder, main light cable

1шт.

G13142

IGNITION SWITCH

SWITCH

1шт.

G13161

CABLE -, Serial Range: switch-lamps

1шт.

G13162

CABLE - extension, tail lamp and outlet socket

1шт.

G44024

EXTENSION - switch cable to head lamp cable

1шт.

G44025

CABLE - head lamp

2шт.

O2457AB

CLIP - cable, tail lamp and outlet socket

5шт.

O7532AB

CLIP - extension, Serial Range: cable-engine

1шт.

O8332AB

X

GROMMET - rubber, grille cap and L.H. fender

2шт.

O9897AB

X

LAMP - combination flood and tail. Use A11898. (See page 36 for difference)

1шт.

G13085

ELECTRICAL WIRE

CABLE - coil to distributor (12" long), electric cables and accessories

1шт.

G13087

CABLE PULLING GRIP

CABLE - fuel tank sender to fuel gage, electric cables and accessories

1шт.

G13158

CABLE - ignition switch to solenoid, coil, ammeter and fuel gage. (Distributor ignition) See G13389, electric cables and accessories

1шт.

G13159

CABLE - ammeter to regulator, light switch and starting switch, electric cables and accessories

1шт.

G13160

CABLE - generator to regulator, w/harness assembly, electric cables and accessories

1шт.

G13161

CABLE - light switch to lights, electric cables and accessories

1шт.

G13162

CABLE - extension, tail light and outlet socket, electric cables and accessories

1шт.

G13163

CABLE - battery to solenoid, electric cables and accessories

1шт.

G13164

CABLE - solenoid to starter (9" long) (610B, 611B) See G44014, electric cables and accessories

1шт.

G13389

CABLE - ignition switch to solenoid. coil and ammeter (Magneto ignition), electric cables and accessories

1шт.

G44014

CABLE - solenoid to starter (14-1/2" long) (510B, 511B) See G31164, electric cables and accessories

1шт.

G46047

CLIP - tail light cable to fender, electric cables and accessories

3шт.

G46803

BOOT

NIPPLE - rubber, cable to coil, electric cables and accessories

1шт.

O2457AB

CLIP - light cable, electric cables and accessories

5шт.

A21753

CAP

NIPPLE - rubber, starter and solenoid terminals, electric cables and accessories

3шт.

O7532AB

CLIP - generator cable to engine, electric cables and accessories

1шт.

O8332AB

X

GROMMET - rubber, on L.H. fender for light cable, electric cables and accessories

1шт.

V20356

NUT

WASHER - harness, spark plug wires, electric cables and accessories

1шт.

VT2336

X

STRAP - battery to ground, electric cables and accessories

1шт.

VT2879

X

WIRE - nos. 1 and 4 spark plugs (Distributor ignition) (10-1/2" long), electric cables and accessories

2шт.

VT3534

X

CABLE - coil to distributor (11" long), electric cables and accessories

1шт.

VT3561

X

NIPPLE - rubber, spark plug wire and coil cable, electric cables and accessories

5шт.

VTA3354

X

WIRE - nos. 2 and 3 spark plugs (Distributor ignition) (8-1/2" long), electric cables and accessories

2шт.

G13916

CABLE - light switch (Includes fuse holder and 20 amp. fuse), electric cables and accessories - L.P.G.

1шт.

G13917

CABLE - fuse holder to lights, electric cables and accessories - L.P.G.

1шт.

G13389

CABLE - ignition switch to solenoid coil and ammeter, electric cables and accessories - L.P.G.

1шт.
