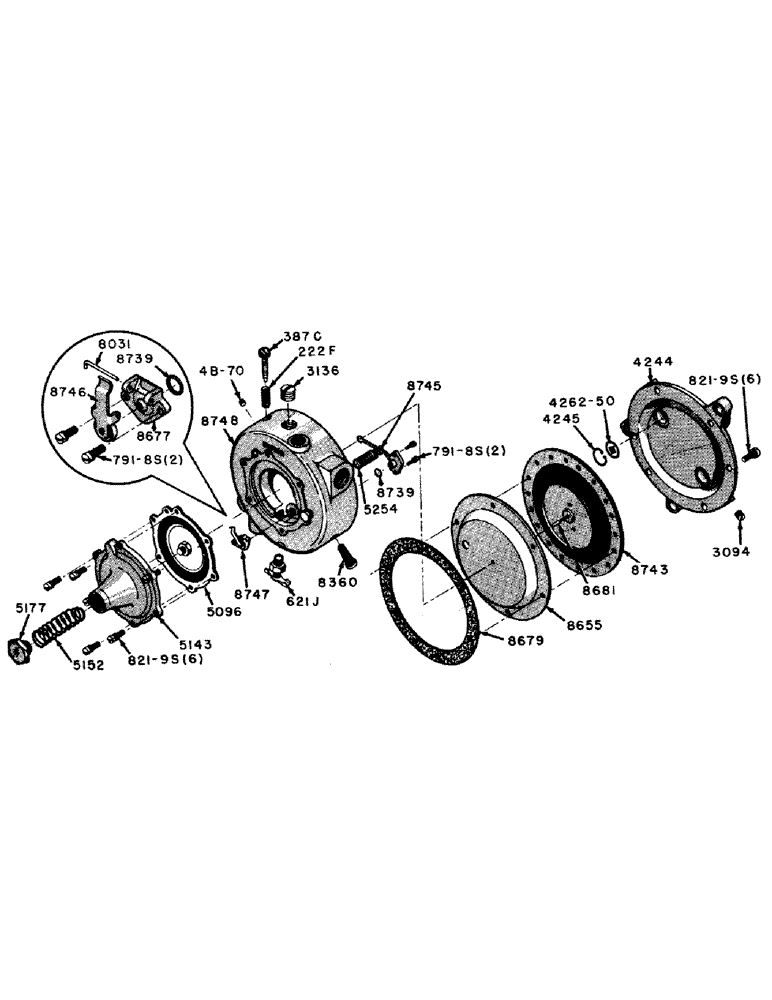

Запчасти Case IH 500B-SERIES (027D) - G45741 L.P.G. REGULATOR (03) - FUEL SYSTEM

4B70

SCREW - bleed

1шт.

222F

RETAINER - idle adjusting screw

1шт.

387C

SCREW - idle adjusting

1шт.

621J

DRAIN COCK

1шт.

791-8S

SCREW - low pressure valve

2шт.

791-8S

SCREW - high pressure valve

2шт.

821-9S

SCREW - back cover plate (Includes lockwasher)

6шт.

821-9S

SCREW - pressure regulator cover

6шт.

3094

PLUG (1/8" slotted hd. brass) Back cover plate

1шт.

3136

PLUG (1/2" slotted hd. brass) Regulator body

2шт.

4244

SPRING COMPRESSOR

PLATE - back cover

1шт.

4245

SEAL KIT

SNAP RING - compensator assembly

1шт.

4262-50

COMPENSATOR ASSEMBLY

1шт.

5096

JACK

DIAPHRAGM - pressure regulator

1шт.

5143

KIT

COVER - pressure regulator

1шт.

5152

GEAR

SPRING - pressure regulator

1шт.

5177

RETAINER - pressure regulator spring

1шт.

5254

BOLT

SPRING - low pressure valve

1шт.

8031

RIGID TUBE

PIN - pivot, high pressure valve

1шт.

8360

STRAINER - fuel inlet

1шт.

8655

TUBE

PLATE - partition

1шт.

8677

SEAT - valve, high pressure

1шт.

8679

PLUG

GASKET - partition plate

1шт.

8681

ROLLER

PIN - push, fuel regulator diaphragm

1шт.

8739

KEY

GASKET - valve, low pressure

1шт.

8739

KEY

GASKET - high pressure valve

1шт.

8743

BEARING,15.88mm ID x 34.93mm OD x 11mm W

DIAPHRAGM - fuel regulator

1шт.

8745

BOLT

VALVE - low pressure

1шт.

8746

HYDRAULIC MOTOR

LEVER - valve, high pressure

1шт.

8747

COUPLING

VALVE - high pressure

1шт.

8748

SPACER

BODY - regulator

1шт.
