Запчасти Case IH 500B-SERIES (026) - GOVERNOR, THROTTLE CONTROL AND FOOT THROTTLE (03) - FUEL SYSTEM

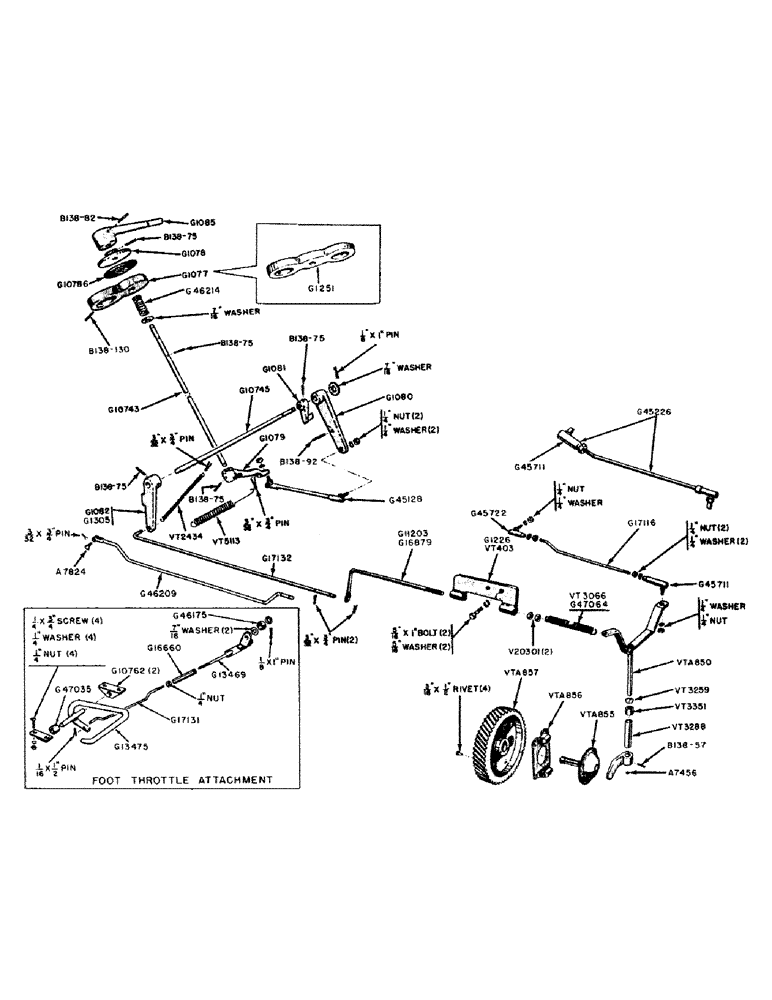

Схема запчастей Case IH 500B-SERIES - (026) - GOVERNOR, THROTTLE CONTROL AND FOOT THROTTLE (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

A7456

X

BALL - thrust, governor arm (3/16" dia.)

1шт.

A7824

X

PIN - for G46209 connecting link (610B, 611B)

1шт.

3/32" x 3/4" cotter pin

1шт.

G1077

SUPPORT - friction plate (510B, 511B) See G1251

1шт.

G1078

PLATE

- friction, hand lever

1шт.

G1079

LEVER

- lower, hand throttle shaft

1шт.

3/32" x 3/4" cotter pin

1шт.

G1080

LEVER - actuating, throttle cross shaft

1шт.

G1081

LEVER - cross shaft

1шт.

G1082

LEVER

- governor control (510B, 511B) See G1305

1шт.

G1085

LEVER

HANDLE - throttle

1шт.

G1251

SUPPORT - friction plate, throttle handle and direct drive handle (610B, 611B) See G1077

1шт.

G1305

LEVER - governor control rod (610B, 611B) See G1082

1шт.

G10743

SHAFT - throttle handle

1шт.

7/16" plain washer

1шт.

G10745

SHAFT - cross, governor control

1шт.

1/8" x 1" cotter pin

1шт.

7/16" plain washer

1шт.

G10786

DISC

DISK - cork, friction plate

1шт.

G16879

ROD - governor control

1шт.

G17116

ROD

- governor arm to carburetor (Use G45226 when stock is exhausted)

1шт.

1/4" N.F. hex. nut and lockwasher

2шт.

G17132

LINK - connecting, throttle (510B, 511B) See G46209

1шт.

3/32" x 3/4" cotter pin

2шт.

G45128

LINK

BALL AND SOCKET (Double), Serial Range: G1079-G1080

1шт.

1/4" N.F. hex. nut and lockwasher

2шт.

G45226

X

ROD - governor arm to carburetor (Includes G45711)

1шт.

1/4" N.F. hex. nut and lockwasher

2шт.

G45711

X

BALL AND SOCKET - G45226 rod assembly

1шт.

G45722

JOINT ASSY.

BALL AND SOCKET - G17116, Serial Range: rod-carburetor

1шт.

G46209

LINK - connecting, throttle (610B, 611B) See G17132

1шт.

3/32" x 3/4" cotter pin

2шт.

G46214

SPRING

- compression, friction plate

1шт.

G47064

SPRING

- governor speed control (610B, 611B) See VT3066

1шт.

VT403

GUIDE - governor control rod

1шт.

5/16" x 1" N.C. hex. nut and lockwasher

2шт.

VT540

GEAR - camshaft (48T) See VTA857

1шт.

VT2434

X

SPRING - control rod lever

1шт.

3/32" x 3/4" cotter pin

1шт.

VT3066

X

SPRING - governor speed control (510B, 511B) See G47064

1шт.

VT3259

X

DUST SEAL - governor shaft

1шт.

VT3288

X

SPACER - thrust, governor shaft

1шт.

VT3351

X

BEARING - governor shaft (Torrington #B610)

1шт.

VT5113

X

SPRING - hand throttle shaft lever

1шт.

A30125

SHAFT

LEVER AND ARM - governor (replaces VTA850)

1шт.

VTA855

X

GOVERNOR SHAFT ASSEMBLY

1шт.

VTA856

WEIGHT ASSEMBLY - governor

1шт.

3/16" x 1/2" rd. hd. rivet

4шт.

VTA857

X

GEAR - camshaft (Includes VTA856 weight) See VT540

1шт.

V20301

LOCK WASHER

NUT - adjusting, governor rod (1/2" N.F.)

2шт.

B138-57

ROLL PIN - VTA850 lever and arm assembly (1/8" x 3/4")

1шт.

B138-75

ROLL PIN - (5/32" x 7/8")

5шт.

B138-82

ROLL PIN - G1085 handle (5/32" x 1-5/8")

1шт.

B138-92

ROLL PIN - pivot, G1080 and G1081 levers (3/16" x 3/4")

1шт.

B138-130

ROLL PIN - friction plate support (1/4" x 3/4")

2шт.

G10762

BRACKET - pivot, foot throttle pedal, before tractor #6120001

2шт.

1/4" x 3/4" rd. hd. mach. screw w/hex. nut and lockwasher, foot throttle, before tractor #6120001

4шт.

G13469

BELLCRANK - foot throttle rod to governor control rod lever, before tractor #6120001

1шт.

1/8" x 1" cotter pin, foot throttle, before tractor #6120001

1шт.

7/16" plain washer, foot throttle, before tractor #6120001

2шт.

G13475

PEDAL - foot throttle, before tractor #6120001

1шт.

G16660

TURNBUCKLE - actuating rod to bellcrank, foot throttle, before tractor #6120001

1шт.

G17131

ROD - actuating, foot throttle to bellcrank, before tractor #6120001

1шт.

1/16" x 1/2" cotter pin, foot throttle, before tractor #6120001

1шт.

1/4" N.C. hex. jam nut, foot throttle, before tractor #6120001

1шт.

G46175

SPACER - bellcrank to cross shaft, foot throttle, before tractor #6120001

1шт.

G47035

SPACER - pedal to pivot bracket, foot throttle, before tractor #6120001

1шт.

Выбрано товаров: 67
