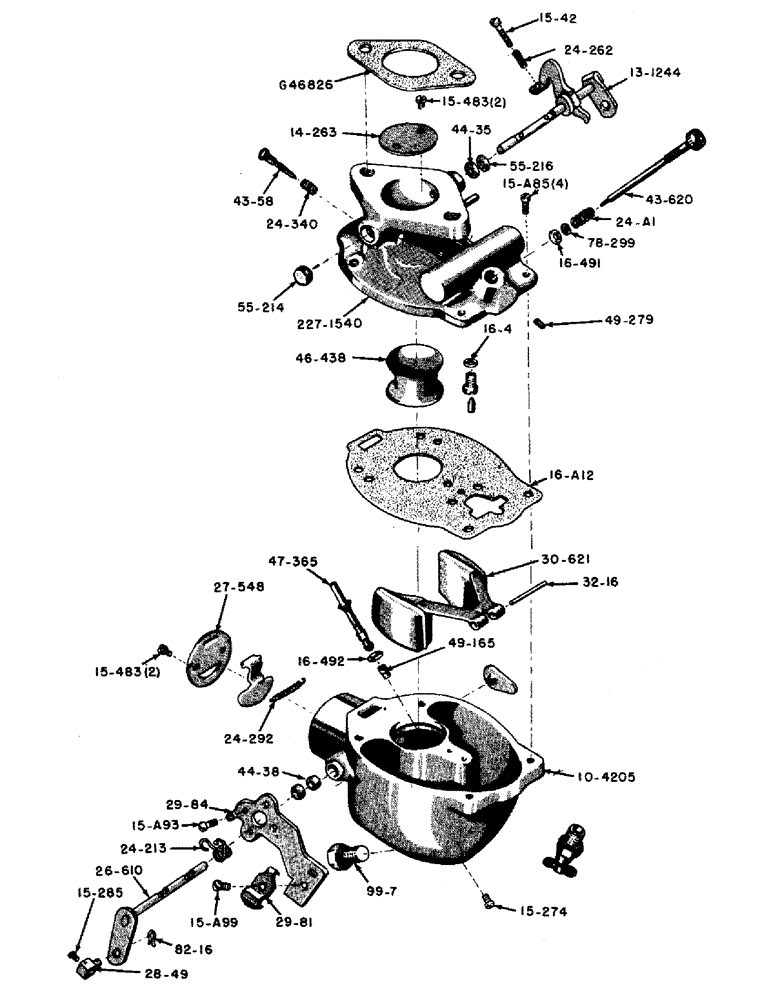

Запчасти Case IH 500B-SERIES (022) - G45103 CARBURETOR, 600B SERIES TRACTORS, MARVEL-SCHEBLER MODEL TSW-749 (03) - FUEL SYSTEM

10-4205

CARBURETOR BODY ASSEMBLY

1шт.

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

THROTTLE SHAFT, throttle stop and lever assembly

1шт.

Part of repair kit P/N A43644

1шт.

14-263

THROTTLE FLY

1шт.

15-42

SCREW - throttle stop

1шт.

15-274

SCREW - nozzle hole plug

1шт.

15-285

SCREW - choker swivel

1шт.

15-483

SCREW - choker fly and throttle fly

4шт.

Part of repair kit P/N A43644

1шт.

15-A85

SCREW - throttle, Serial Range: body-bowl

4шт.

15-A93

SCREW - choker bracket

1шт.

15-A99

SCREW - choker bracket clip

1шт.

16-4

GASKET - float valve seat

1шт.

Part of gasket kit P/N 16-594

1шт.

16-491

GASKET - high speed needle

1шт.

Part of gasket kit P/N 16-594

1шт.

16-492

X

GASKET - main nozzle

1шт.

Part of gasket kit P/N 16-594

1шт.

16-A12

GASKET - throttle, Serial Range: body-bowl

1шт.

Part of gasket kit P/N 16-594

1шт.

16-594

GASKET KIT, Includes: Ref. P/N 16-4, 16-491, 16-492, 16-A12

1шт.

24-213

SPRING - choker return

1шт.

Part of repair kit P/N A43644

1шт.

24-262

SPRING - throttle stop screw

1шт.

24-292

SPRING - choker fly flapper

1шт.

24-340

SPRING - idle needle

1шт.

24-A1

SPRING - high speed needle

1шт.

26-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 8

CHOKER SHAFT AND LEVER ASSEMBLY

1шт.

27-548

CHOKER FLY ASSEMBLY

1шт.

28-49

SWIVEL - choker

1шт.

29-81

CLIP - choker bracket

1шт.

29-84

BRACKET - choker

1шт.

29-521

CHOKER BRACKET ASSEMBLY

1шт.

30-621

FLOAT AND LEVER ASSEMBLY

1шт.

32-16

SHAFT - float lever

1шт.

Part of repair kit P/N A43644

1шт.

36-210

SEAT - main adjusting needle

1шт.

43-58

NEEDLE - idle adjusting

1шт.

Part of repair kit P/N A43644

1шт.

43-620

HIGH SPEED NEEDLE ASSEMBLY

1шт.

43-631

MAIN ADJUSTING NEEDLE ASSEMBLY

1шт.

44-35

PACKING - throttle shaft

1шт.

44-38

PACKING - choker shaft

1шт.

Part of repair kit P/N A43644

1шт.

46-438

VENTURI

1шт.

47-365

NOZZLE ASSEMBLY

1шт.

49-165

JET - power

1шт.

Part of repair kit P/N A43644

1шт.

49-279

JET - idle

1шт.

Part of repair kit P/N A43644

1шт.

55-214

CUP - throttle shaft

1шт.

Part of repair kit P/N A43644

1шт.

55-216

RETAINER - throttle shaft packing

1шт.

Part of repair kit P/N A43644

1шт.

60-260

BUSHING - throttle shaft

1шт.

78-299

WASHER - plain, high speed needle

1шт.

82-16

COTTER PIN - choker swivel

1шт.

99-7

PLUG - bowl drain

1шт.

227-1540

THROTTLE BODY ASSEMBLY

1шт.

A43644

KIT

REPAIR KIT, Includes: Ref. P/N 13-1244, 15-483, 24-213, 32-16, 43-58, 44-38, 49-165, 49-279, 55-214, 55-216, Replaces B51931 and 286-1236)

1шт.

G45103

CARBURETOR

(Marvel-Schebler model TSX-749)

1шт.

3/8" x 1" N.C. hex. hd. bolt w/lockwasher

2шт.

G46826

GASKET

-, Serial Range: carburetor-manifold

1шт.

VTA698

X

FLOAT VALVE, seat and gasket assembly

1шт.
