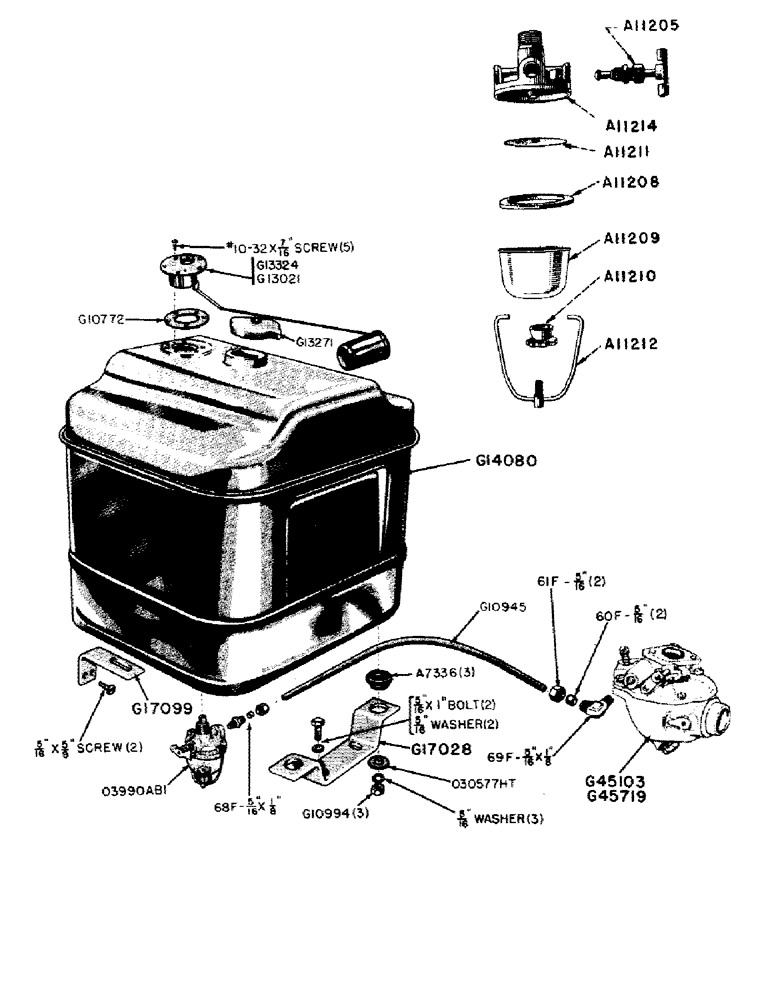

Запчасти Case IH 500B-SERIES (021) - MAIN FUEL TANK (03) - FUEL SYSTEM

A7336

CUSHION

BUSHING - rubber, fuel tank support

3шт.

G10772

GASKET

- fuel tank sender

1шт.

G10945

LINE - fuel, Serial Range: tank-carbureter

1шт.

68F - 5/16" x 1/8" connector - includes 60F - 5/16" sleeve and 61F - 5/16" nut

1шт.

G10994

X

NUT - lock, fuel tank stud

3шт.

G13087

CABLE PULLING GRIP

CABLE - fuel tank sender to fuel gage

1шт.

G13271

CAP

- fuel tank

1шт.

G13324

SENDER UNIT

SENDER - fuel gage

1шт.

#10-32 x 7/16" rd. hd. self tapping screw (Sems)

5шт.

G14080

TANK - fuel

1шт.

G17028

SUPPORT - front, fuel tank

1шт.

5/16" x 1" N.C. hex. hd. bolt w/lockwasher

2шт.

G17099

SUPPORT - rear, fuel tank

1шт.

5/16" x 5/8" hex. hd. mach. screw w/Shakeproof lockwasher

2шт.

G45103

CARBURETOR

(Marvel-Schebler Model TSX-749) (600B series)

1шт.

69F - 5/16" x 1/8" elbow - includes 60F - 5/16" sleeve and 61F 5/16" nut

1шт.

G45719

CARBURETOR

(Zenith #62AJ10) (500B and 600B series)

1шт.

68F - 5/16 x 1/8" connector - includes 60F - 5/16" sleeve and 61F - 5/16" nut

1шт.

O3990AB1

X

STRAINER - fuel

1шт.

O30577HT

X

WASHER - fuel tank support

3шт.

A11205

VALVE

- fuel strainer, shutoff, parts for O3990AB

1шт.

A11208

GASKET

- fuel strainer, parts for O3990AB

1шт.

A11209

BOWL

- glass (See A11213), parts for O3990AB fuel strainer

1шт.

A11210

ADJUSTER

CUP AND NUT - fuel strainer, parts for O3990AB

1шт.

A11211

FILTER SCREEN

SCREEN ASSEMBLY - fuel strainer, parts for O3990AB

1шт.

A11212

BAIL

ASSEMBLY - fuel stainer, parts for O3990AB

1шт.

A11213

BOWL - metal (For use w/mounted picker), parts for O3990AB fuel strainer

1шт.

A11214

HEAD

- fuel strainer, parts for O3990AB

1шт.
