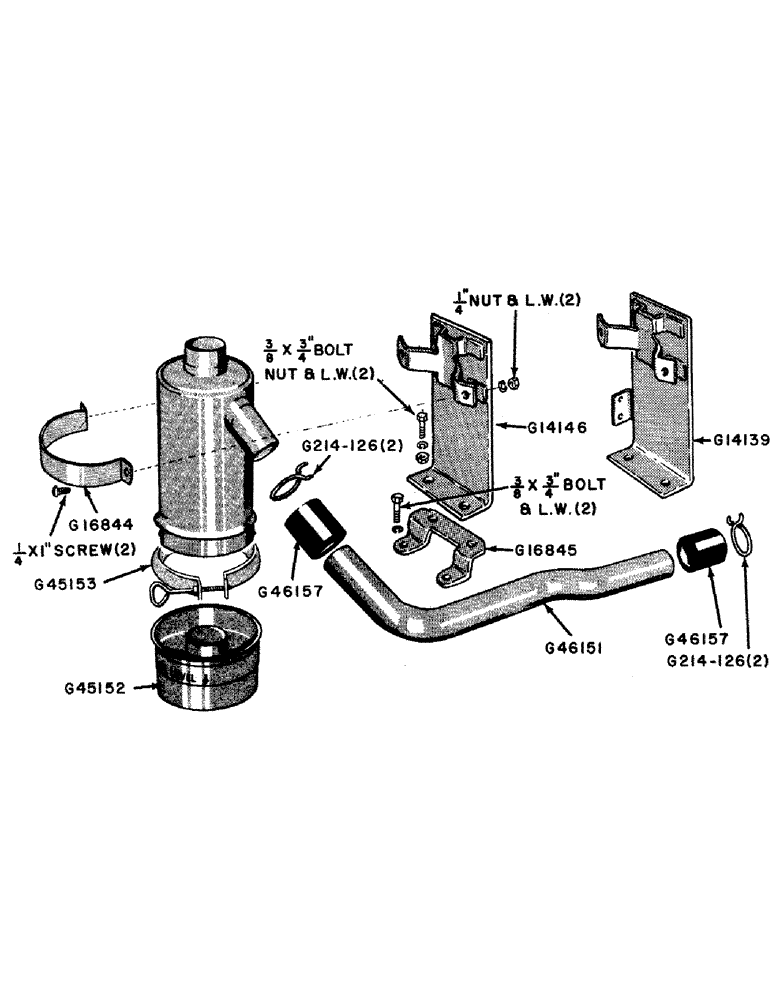

Запчасти Case IH 500B-SERIES (020) - AIR CLEANER (02) - ENGINE

G214-126

CLAMP - hose

4шт.

G14139

SUPPORT - air cleaner (610B, 611B Case-O-Matic tractor)

1шт.

3/8" x 3/4" N.F. hex. hd. bolt w/hex. nut and lockwasher

2шт.

G14146

SUPPORT - air cleaner (510B, 511B)

1шт.

3/8" x 3/4" N.F. hex. hd. bolt w/hex. nut and lockwasher

2шт.

G16844

BAND - air, Serial Range: cleaner-support

1шт.

1/4" x 1" rd. hd. mach. screw w/hex. nut and lockwasher

2шт.

G16845

BRACKET - adapter, air cleaner support (511B, 611B general purpose)

1шт.

3/8" x 3/4" N.C. hex. hd. bolt w/lockwasher

2шт.

G45111

AIR CLEANER COMPLETE, Includes: Ref. P/N G45152, G45153

1шт.

G45152

CUP - oil

1шт.

Part of complete air cleaner P/N G45111

1шт.

G45153

CLAMP

- oil cup

1шт.

Part of complete air cleaner P/N G45111

1шт.

G46151

TUBE - air, Serial Range: cleaner-carburetor

1шт.

G46157

AIR INTAKE TUBE,2" ID x 2.375" OD x 2" L

HOSE, 2.00" ID x 2.00", SAE 20R2, Air Cleaner to Carburetor

2шт.
