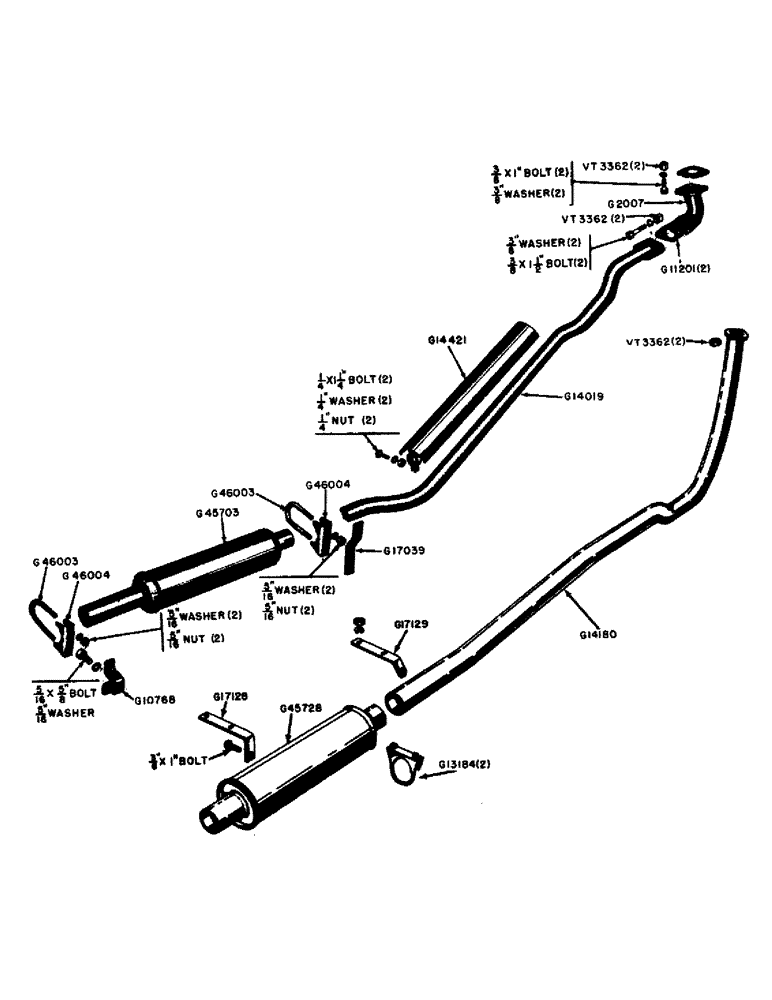

Запчасти Case IH 500B-SERIES (015) - UNDERNEATH MUFFLER AND EXHAUST, 500B SERIES AND 600B SERIES (02) - ENGINE

*

G2007

ELBOW - exhaust, Serial Range: pipe-manifold

1шт.

No elbow used underneath the muffler.

1шт.

*

3/8" x 1" N.C. hex hd. bolt w/lockwasher

2шт.

*

G10768

BRACKET

- rear muffler clamp

1шт.

*

5/16" x 5/8" N.C. hex. hd. bolt w/lockwasher

1шт.

*

G11201

GASKET

- elbow to manifold and exhaust pipe

2шт.

*

G14019

PIPE - exhaust, w/flange

1шт.

*

3/8" x 1-1/2" N.C. hex. hd. bolt w/lockwasher

2шт.

*

G14421

SHIELD - exhaust pipe

1шт.

*

1/4" x 1-1/4" carr. bolt w/hex. nut and lockwasher

2шт.

*

G17039

BRACKET - front muffler clamp

1шт.

*

G46003

U-BOLT

"U" BOLT - muffler clamp

2шт.

*

5/16" N.C. hex. nut and lockwasher

4шт.

*

G46004

CLAMP

- muffler

2шт.

*

VT3362

X

NUT - brass, exhaust pipe and elbow

4шт.

*

G13184

CLAMP

- muffler, underneath exhuast - 600B series

2шт.

*

G14180

PIPE - exhaust, underneath muffler - 600B series

1шт.

*

G17128

BRACKET - rear muffler, underneath exhuast - 600B series

1шт.

*

5/16" x 5/8" N.C. hex. hd. bolt w/lockwasher, underneath muffler & exhuast - 600B series

1шт.

*

G17129

BRACKET - front, muffler, underneath exhuast - 600B series

1шт.

*

3/8" x 1" N.C. hex. hd. bolt

2шт.

*

VT3362

X

NUT - brass, pipe to manifold, underneath muffler & exhuast - 600B series

2шт.
