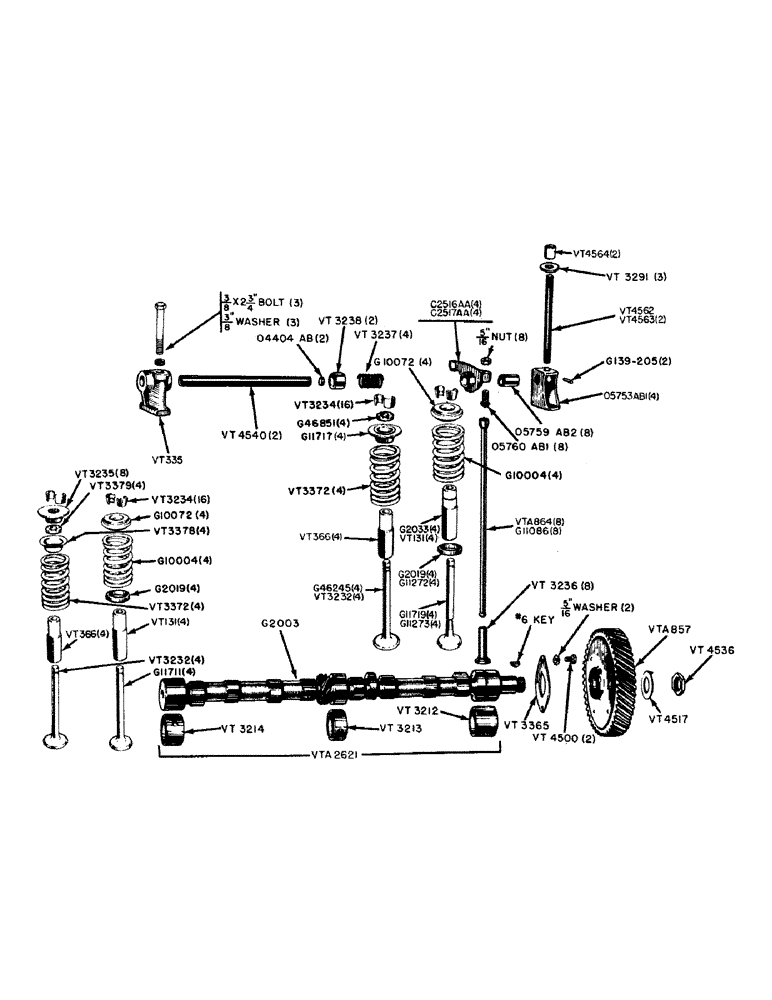

Запчасти Case IH 500B-SERIES (013A) - INTAKE AND EXHAUST VALVES, FOR GASOLINE ENGINES (02) - ENGINE

G2019

INSERT

- exhaust valve seat (Use G11932)

4шт.

G10004

SPRING

- exhaust valve

4шт.

G10072

CAP

ROTO-CAP - exhaust valve (Use G11928)

4шт.

G11195

KIT

VALVE - exhaust (Set of 4) (Should use G11863 valve set and G11861 guides)

1шт.

G11711

VALVE

- exhaust (See G11195) (Should use G11863 valve set and

1шт.

G11861 valve guides)

4шт.

G11926

RETAINER

S - intake valve spring (Set of 4-VT3235 retainer and 8-VT3234 lock)

1шт.

G11928

CAP

ROTO-CAPS - exhaust valve (Set of 4)

1шт.

G11929

LOCK

S - retainer, valve spring (Set of 4)

4шт.

G11932

KIT

INSERTS - exhaust valve seat (Set of 4)

1шт.

VT131

X

GUIDE - exhaust valve stem (Use VTA911 with G11711 or G11195 valves)

4шт.

VT366

X

GUIDE - intake valve stem (Use G10269)

4шт.

VT3232

X

VALVE - intake (See VTA2634) (Should use G11893 valve set, G11927 retainer set and 4-G46851 seals)

4шт.

VT3234

X

LOCK - retainer, valve spring (See G11927 and G11929)

16шт.

VT3235

X

RETAINER - intake valve spring (Use G11926 w/VT3232 valves)

4шт.

VT3372

SPRING

- intake valve

4шт.

VT3378

X

RETAINER - gasket, intake valve stem (Use with VT3232 valve)

4шт.

VT3379

X

GASKET - intake valve stem (Use with VT3232 valve)

4шт.

VTA911

X

GUIDE - exhaust valve stem (Set of 4) Use with G11195 and G11711 valves

1шт.

VTA2634

VALVE - intake (Set of 4) (Should use G11862 valve set, G11927 retainer set and 4-G46851 seals)

1шт.

G2019

INSERT

- exhaust valve seat (Use G11932), gasoline eng #164-R10104 & aft, tractor # 6125275 & after

4шт.

G2033

GUIDE

- exhaust valve stem (Use G11861), gasoline eng #164-R10104 & aft, tractor # 6125275 & after

4шт.

G10004

SPRING

- exhaust valve, gasoline eng #164-R10104 & aft, tractor # 6125275 & after

4шт.

G10072

CAP

ROTO-CAP - exhaust valve (Use G11928), gasoline eng #164-R10104 & aft, tractor # 6125275 & after

4шт.

G10269

KIT

GUIDES - intake valve stem (Set of 4), gasoline eng #164-R10104 & aft, tractor # 6125275 & after

1шт.

G11717

RETAINER

- intake valve spring (Use G11927), gasoline eng #164-R10104 & aft, tractor # 6125275 & after

4шт.

G11719

X

VALVE - (Scraper type) exhaust (Use G11863), gasoline eng #164-R10104 & aft, tractor # 6125275 & after

4шт.

G11861

GUIDE

S - exhaust valve stem (Set of 4), gasoline eng #164-R10104 & aft, tractor # 6125275 & after

1шт.

G11863

KIT

VALVES - (Scraper type) exhaust (Set of 4), gasoline eng #164-R10104 & aft, tractor # 6125275 & after

1шт.

G11893

KIT

VALVES - intake (Set of 4), gasoline eng #164-R10104 & aft, tractor # 6125275 & after

1шт.

G11927

RETAINER

S - valve spring (Set of 4-G11717 retainer and 8-VT3234 lock), gasoline eng #164-R10104 & aft, tractor # 6125275 & after

1шт.

G11928

CAP

ROTO-CAPS - exhaust valve (Set of 4), gasoline eng #164-R10104 & aft, tractor # 6125275 & after

1шт.

G11929

LOCK

S - retainer, valve spring (Set of 4), gasoline eng #164-R10104 & aft, tractor # 6125275 & after

4шт.

G11932

KIT

INSERTS - exhaust valve seat (Set of 4), gasoline eng #164-R10104 & aft, tractor # 6125275 & after

1шт.

G46245

VALVE,ENGINE,INLET,S

VALVE - intake (Use G11893), gasoline eng #164-R10104 & aft, tractor # 6125275 & after

4шт.

G46851

SEAL

- rubber, intake valve, gasoline eng #164-R10104 & aft, tractor # 6125275 & after

4шт.

VT366

X

GUIDE - intake valve stem (Use G10269), gasoline eng #164-R10104 & aft, tractor # 6125275 & after

4шт.

VT3234

X

LOCK - retainer, valve spring (See G11927 and G11929), gasoline eng #164-R10104 & aft, tractor # 6125275 & after

16шт.

VT3372

SPRING

- intake valve, gasoline eng #164-R10104 & aft, tractor # 6125275 & after

4шт.

G10004

SPRING

- exhaust valve, (L.P.G. engines)

4шт.

G10072

CAP

ROTO-CAP - exhaust valve (Use G11928), (L.P.G. engines)

4шт.

G10269

KIT

GUIDES - intake valve stem (Set of 4), (L.P.G. engines)

1шт.

G11272

INSERT

- exhaust valve seat (Use G11931), (L.P.G. engines)

4шт.

G11273

X

VALVE - exhaust (Use G11827), (L.P.G. engines)

4шт.

G11717

RETAINER

- intake valve spring (Use G11927), (L.P.G. engines)

4шт.

G11827

KIT

VALVES - exhaust (Set of 4) (Stellite face), (L.P.G. engines)

1шт.

G11893

KIT

VALVES - intake (Set of 4), (L.P.G. engines)

1шт.

G11926

RETAINER

S - valve spring (Set of 4-VT3235 retainer and 8-VT3234 locks) Use with VT3232 valve and VTA2634 set, (L.P.G. engines)

2шт.

G11927

RETAINER

S - valve spring (Set of 4-G11717 retainer and 8-VT3234 lock), (L.P.G. engines)

1шт.

G11928

CAP

ROTO-CAPS - exhaust valve (Set of 4), (L.P.G. engines)

1шт.

G11929

LOCK

S - retainer, valve spring (Set of 4), (L.P.G. engines)

4шт.

G11931

KIT

INSERTS - exhaust valve seat (Set of 4), (L.P.G. engines)

1шт.

G46245

VALVE,ENGINE,INLET,S

VALVE - intake (Use G11893), (L.P.G. engines)

4шт.

G46851

SEAL

- rubber, intake valve, (L.P.G. engines)

4шт.

VT131

X

GUIDE - exhaust valve stem (Use VTA911), (L.P.G. engines)

4шт.

VT366

X

GUIDE - intake valve stem (Use G10269), (L.P.G. engines)

4шт.

VT3232

X

VALVE - intake (See VTA2634) (Should use G11893 valve set, G11927 retainer set and 4-G46851 seals), (L.P.G. engines)

4шт.

VT3234

X

LOCK - retainer, valve spring (See G11927 and G11929), (L.P.G. engines)

16шт.

VT3235

X

RETAINER - valve spring (Use G11926), (L.P.G. engines)

1шт.

VT3378

X

RETAINER - gasket, intake valve stem (Use with VT3372 valve and VTA2634 set), (L.P.G. engines)

4шт.

VT3379

X

GASKET - intake valve stem (Use with VT3232 valves and VTA2634 set), (L.P.G. engines)

4шт.

VTA911

X

GUIDES - exhaust valve stem (Set of 4), (L.P.G. engines)

1шт.

VTA2634

VALVES - intake (Set of 4) (Should use G11893 valve set, G11927 retainer set and 4-G46851 seals), (L.P.G. engines)

4шт.
