(008) - GASKET KITS

Запчасти Case IH 500B-SERIES (008) - GASKET KITS (02) - ENGINE

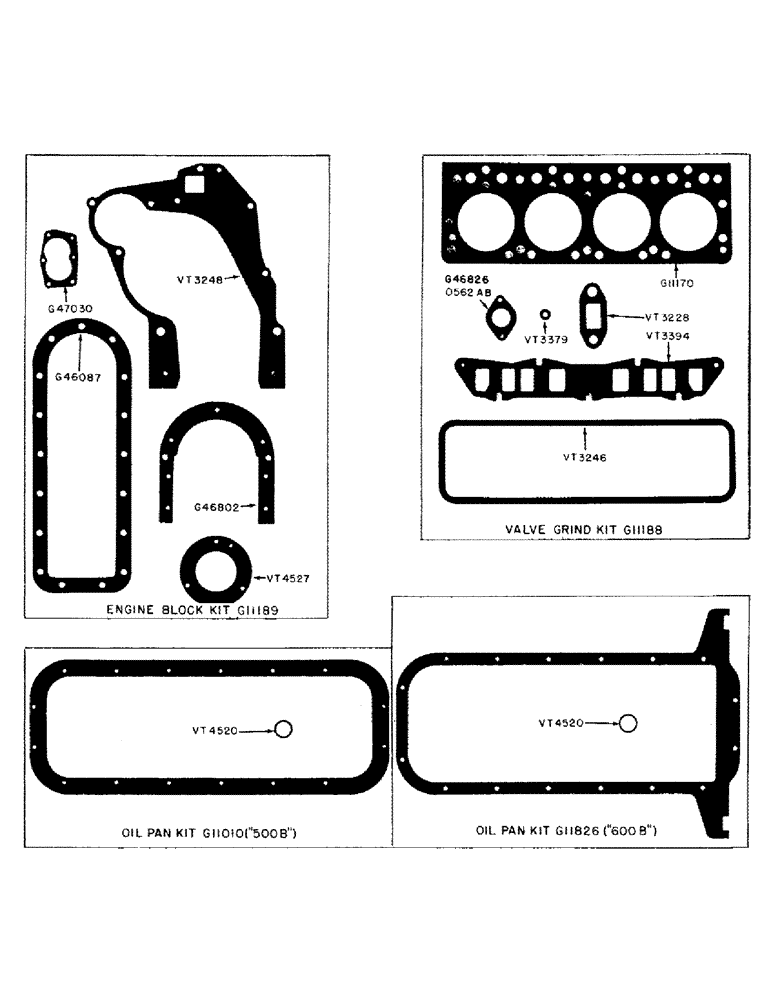

Схема запчастей Case IH 500B-SERIES - (008) - GASKET KITS (02) - ENGINE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

G11010

X

GASKET KIT - oil pan (510B, 511B)

1шт.

G11188

KIT

GASKET KIT - valve grind (Includes O562AB, G46826 carburetor, G11170 head, VT3228 water outlet, VT3246 valve cover, 4-VT3379 valve stem and VT3394 manifold)

1шт.

G11189

KIT

GASKET KIT - engine block (Includes G46087 side cover, G46802 rear oil seal, G47030 oil pump, VT3248 timing cover and VT4527 water pump)

1шт.

G11826

X

GASKET KIT - oil pan (610B, 611B)

1шт.
