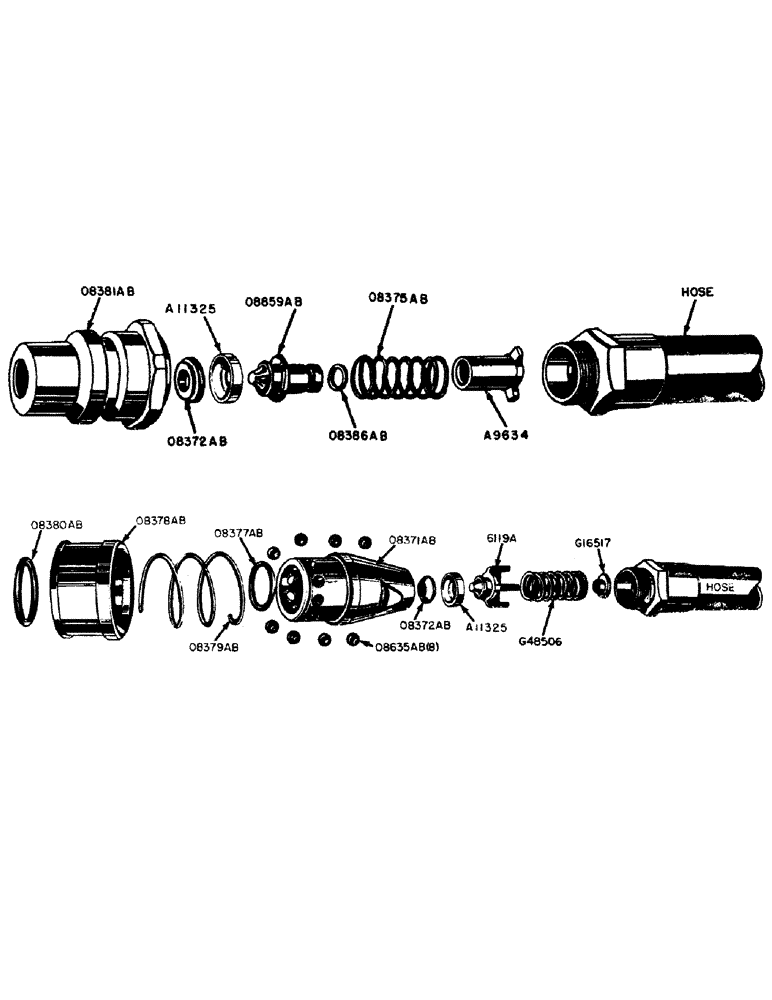

Запчасти Case IH 500B-SERIES (123) - 4025AA BREAK-AWAY COUPLING PLUG, G30463 B A SOCKET, G30455 SERVICE KIT, ADAPTER PLUGS FOR B A COUPLI (08) - HYDRAULICS

A9631ASY

SPARE PART

- coupling plug piston

1шт.

A11325

X

RETAINER - for O8372AB seal

1шт.

O8372AB

X

SEAL - coupling piston

1шт.

O8375AB

X

SPRING - coupling piston

1шт.

O8381AB

X

BODY - coupling plug male

1шт.

O8386AB

X

"O" RING - coupling plug piston sleeve

1шт.

O8859AB

X

PISTON - coupling plug

1шт.

4025AA

X

PLUG - break-away, complete (Includes all items above)

2шт.

A11325

X

RETAINER - for O8372AB seal, G30463 break-away coupling socket

1шт.

G16517

SPACER

- control, hydraulic flow (Not in G45235 socket assembly), G30463 break-away coupling socket

1шт.

G30463

SOCKET - break-away, complete (Includes all items above except G16517), G30463 coupling

2шт.

G48506

SPRING

- coupling socket piston, G30463 break-away

1шт.

6119A

X

PISTON - coupling socket, G30463 break-away

1шт.

O8371AB

BODY - female coupling socket, G30463 break-away

1шт.

O8372AB

X

SEAL - female piston, G30463 break-away coupling socket

1шт.

O8377AB

X

"O" RING - coupling socket body, G30463 break-away

1шт.

O8378AB

X

SLEEVE - coupling socket body ball retaining, G30463 break-away

1шт.

O8379AB

X

SPRING - coupling socket body ball retaining sleeve, G30463 break-away

1шт.

O8380AB

X

RING - snap, coupling socket rubber, G30463 break-away

1шт.

O8635AB

X

BALL - coupling socket locking, G30463 break-away

8шт.

G30455

Service kit for 4025AA and 4026AA hydraulic couplings (Consists of 1 - A9634, 1 - A11325, 1 - 6119A, 2 - O8372AB, 1 - O8375AB, 1 - O8377AB, 1 - O8386AB, 1 - O8859AB, and 1 - G48506), G30455

1шт.

A11161

ADAPTER,7/8" - 18 NPT x 1/2" NPT

PLUG - adapter, to connect "CASE" hydraulic hose with 7/8" - 10 male thread to 1/2" female pipe connection (Has 1/2" male pipe threads on one end and 7/8" - 18 female threads on other end), for break-away couplings

4шт.

O9466AB

X

PLUG - adapter, to connect "CASE" break-away couplings to hydraulic hose lines having 1/2" pipe threads (Has 1/2" female pipe thread on one end and 7/8" - 18 male thread on other end)

4шт.
