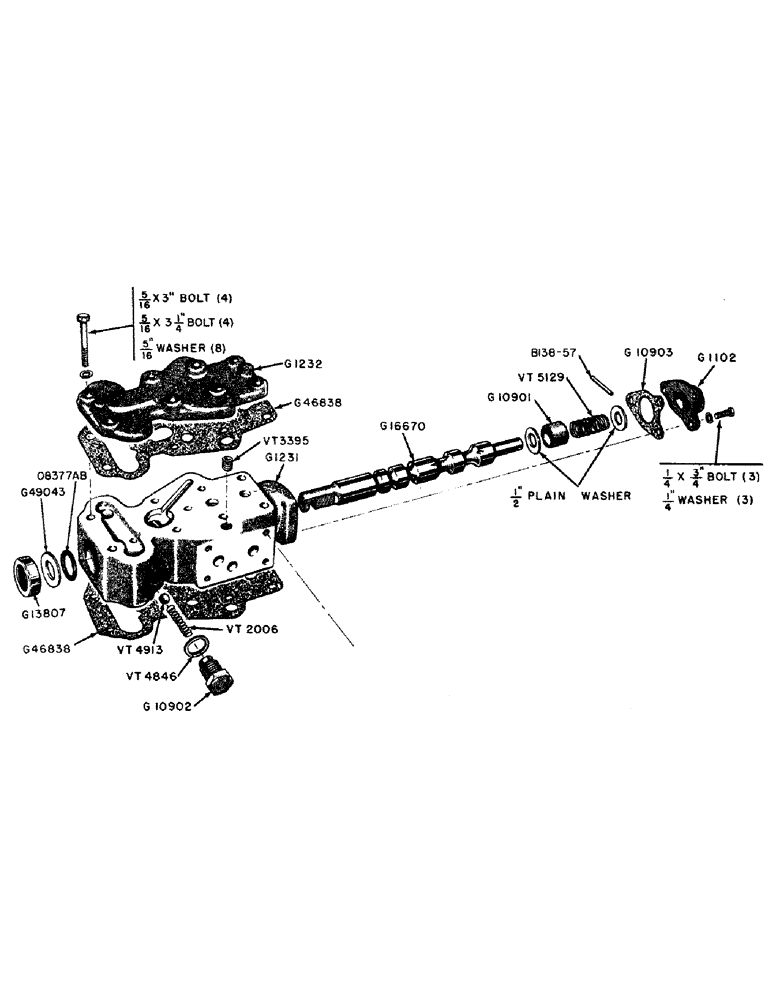

Запчасти Case IH 500B-SERIES (108) - PARTS FOR G13983 AND G13985 CONTROL VALVES, 510B AND 511B TRACTORS (08) - HYDRAULICS

G1102

CAP - end

1шт.

1/4" x 3/4" N.C. hex. hd. bolt w/lockwasher

3шт.

G1231

BODY - control valve

1шт.

G1232

COVER - control valve body

1шт.

5/16" x 3" N.C. hex. hd. bolt w/lockwasher

4шт.

5/16" x 3-1/4" N.C. hex. hd. bolt w/lockwasher

4шт.

G10901

SLEEVE

- stop, valve spool

1шт.

G10902

PLUG - detent spring

1шт.

G10903

GASKET

- end cap

1шт.

G13807

OIL SEAL

OIL SEAL - valve spool

1шт.

G16670

SPOOL

- control valve

1шт.

1/2" plain washer

2шт.

G46838

GASKET

- cover to valve and valve to adapter housing

2шт.

G49403

WASHER

- retainer, valve spool "O" ring

1шт.

O8377AB

X

"O" RING - valve spool

1шт.

VT2006

X

SPRING - detent (Only in G13983)

1шт.

VT3395

X

PLUG - top, valve body (Only in G13985)

1шт.

VT4846

X

GASKET - plug, detent spring

1шт.

VT4913

X

BALL - detent (3/8" dia.) (Only in G13983)

1шт.

VT5129

X

SPRING - valve spool

1шт.

B138-57

ROLL PIN - valve spool (1/8" x 3/4")

1шт.

REFER TO COVER-USE G46843 DYNO SEAL10/17/96

1шт.
