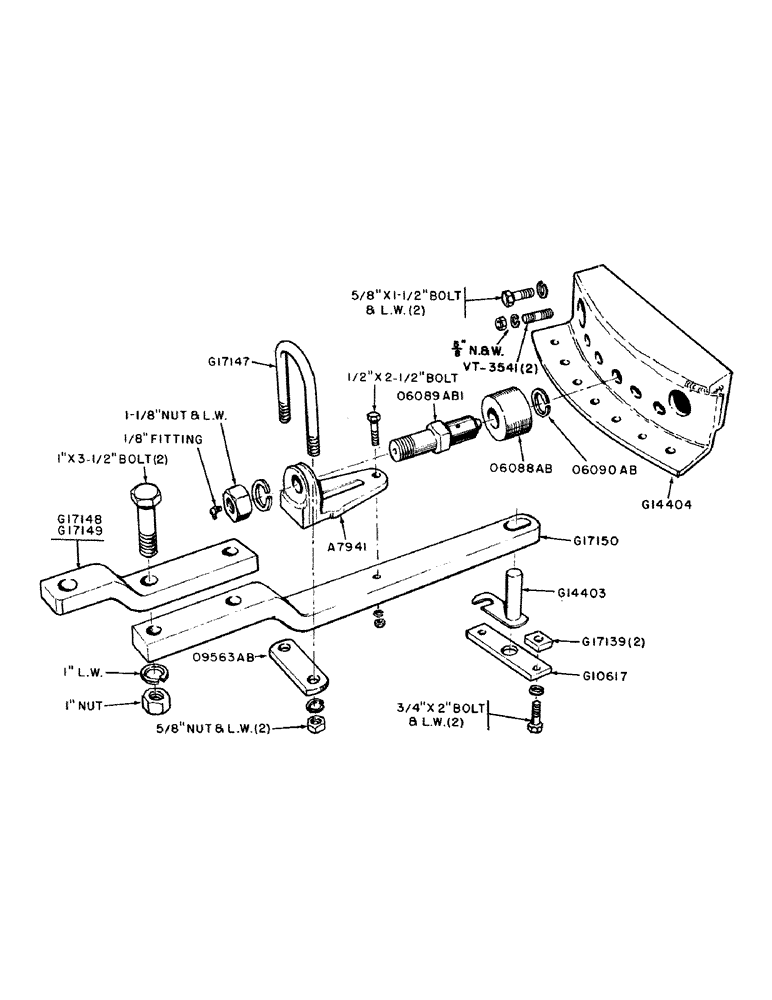

Запчасти Case IH 500B-SERIES (120) - HEAVY DUTY ROLLER TYPE DRAWBAR (06) - POWER TRAIN

A7941

BRACKET

- roller

1шт.

1/2" x 2-1/2" N.F. hex. hd. bolt w/hex. nut and lockwasher

1шт.

G10617

SUPPORT

- pin

1шт.

3/4" x 2" N.C. hex. hd. bolt w/lockwasher

2шт.

G14403

PIN

AND LATCH - drawbar

1шт.

G14404

ANGLE - guide, drawbar

1шт.

5/8" x 1-1/2" N.C. hex. hd. bolt w/lockwasher

2шт.

G17139

SPACER - pin support

2шт.

G17147

"U" BOLT - guide bracket

1шт.

5/8" N.F. hex. nut and lockwasher

2шт.

G17148

EXTENSION - drawbar, short (12" long)

1шт.

G17149

EXTENSION - drawbar, long (16" long)

1шт.

G17150

DRAWBAR

1шт.

1" x 3-1/2" N.F. hex. hd. bolt w/hex. nut and lockwasher

2шт.

O6088AB

X

ROLLER - drawbar

1шт.

O6089AB1

X

BOLT - roller, drawbar

1шт.

1-1/8" N.F. hex. nut and lockwasher

1шт.

1/8" 90 degree fitting (Lincoln #5400)

1шт.

O6090AB

X

SNAP RING - roller bolt

1шт.

O9563AB

X

STRAP - "U" bolt

1шт.

VT3541

STUD - guide angle to transmission case (5/8" x 2")

2шт.

5/8" N.F. hex. nut and lockwasher

2шт.
