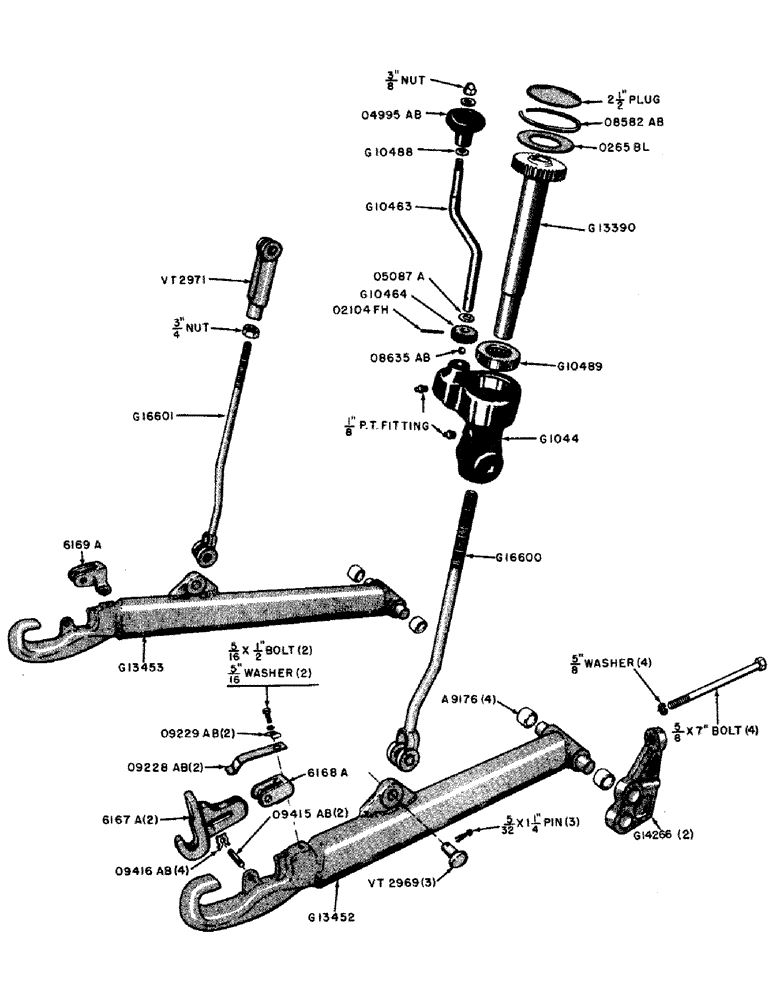

Запчасти Case IH 500B-SERIES (118) - EAGLE HITCH DRAFT ARMS AND LIFT LINKS (06) - POWER TRAIN

A9176

BUSHING

- draft arm pivot (2 in axle housings and 2 in mounting brackets)

8шт.

G1044

HOUSING - adjusting screw

1шт.

1/8" str. fitting (Lincoln #5000)

1шт.

1/8" str. safety vent fitting (Lincoln #5099)

1шт.

2-1/2" Welch plug

1шт.

G10463

CRANK - adjusting screw

1шт.

5/8" - 16 acorn nut, low crown

1шт.

G10464

GEAR - adjusting screw crank

1шт.

G10488

WASHER - thrust, adjusting crank

1шт.

G10489

THRUST BEARING

BEARING - thrust (Nice #5136)

1шт.

G13390

TUBE

GEAR - adjusting screw, w/tube

1шт.

G13452

ARM - R.H. draft

1шт.

G13453

ARM - L.H. draft

1шт.

G14266

BRACKET - draft arm mounting, includes 2 - A9176 bushings

2шт.

5/8" x 7" N.C. hex. hd. bolt w/lockwasher

4шт.

G16600

LINK

- lift, adjusting screw, R.H.

1шт.

G16601

LINK - lift, L.H.

1шт.

3/4" N.F. hex. jam nut

1шт.

G17022

BRACKET (Use G14266)

1шт.

G17133

BRACKET (Use G14266)

1шт.

6167A

X

LATCH - Eagle hitch

2шт.

6168A

X

LOCK - Eagle hitch latch, R.H.

1шт.

6169A

X

LOCK - Eagle hitch latch, L.H.

1шт.

O5087A

X

WASHER - thrust, crank gear

1шт.

O4995AB

X

KNOB - hand spinner, adjusting crank

1шт.

O8582AB

X

SNAP RING - upper housing, adjusting screw

1шт.

O8635AB

X

BALL - crank bearing

1шт.

O9228AB

X

SPRING - latch, Eagle hitch

2шт.

O9229AB

X

RETAINER - latch spring

2шт.

5/16" x 1/2" N.C. hex. hd. bolt w/lockwasher

2шт.

O9415AB

X

PIN - latch, draft arm

2шт.

O9416AB

X

SNAP RING - retainer, latch pin

4шт.

O265BL

WASHER - adjusting screw gear (2-1/2" O.D. x 1-15/16" I.D. #14 ga.)

1шт.

O2104FH

X

ROLL PIN - crank gear (5/8" x 7/8")

1шт.

VT2969

X

PIN - yoke, lift link

3шт.

5/32" x 1-1/4" cotter pin

3шт.

VT2971

YOKE - lift link

1шт.
