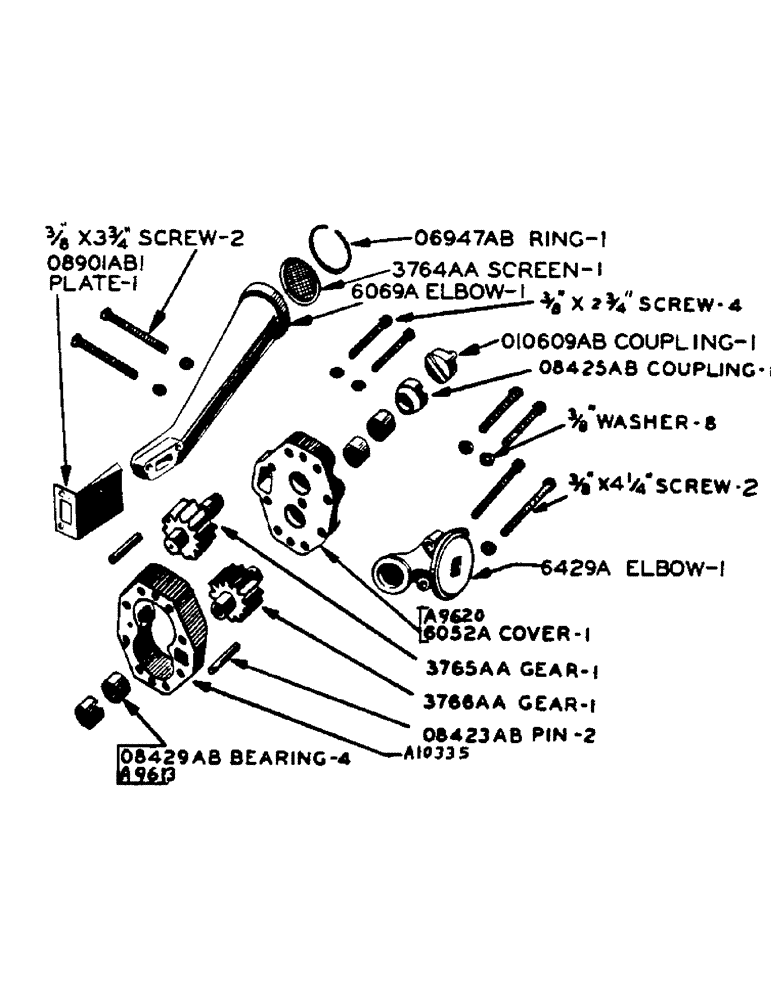

Запчасти Case IH 500-SERIES (106) - HYDRAULIC PUMP, 15 GALLON PER MINUTE CAPACITY (08) - HYDRAULICS

A9613

NEEDLE BEARING,0.875" ID x 1.375" OD x 0.75"

BEARING - (BCA SV7173) hydraulic pump shaft, use with A9620 cover (See O8429AB)

4шт.

A9620

COVER

- hydraulic pump body, use A9613 bearings only

1шт.

A10335

BODY

- hydraulic pump

1шт.

6052A

COVER - hydraulic pump body, use with O8429AB bearing

1шт.

3/8" x 2-3/4" hex hd. cap screw, N.C. thrd., with lockwasher

4шт.

6069A

ELBOW - hydraulic pump inlet

1шт.

3/8" x 3-3/4" hex hd. cap screw, N.C. thrd., with lockwasher

2шт.

6429A

ELBOW - hydraulic pump filter

1шт.

3/8" x 4-1/4" hex hd. cap screw, N.C. thrd., with lockwasher

2шт.

O6947AB

X

SNAP RING - hydraulic pump screen retainer

1шт.

O8423AB

PIN - hydraulic pump body dowel

2шт.

O8425AB

X

COUPLING - hydraulic pump drive shaft

1шт.

O8429AB

NEEDLE BEARING,0.875" ID x 1.125" OD x 0.75"

BEARING - hydraulic pump shaft (Torrington no. GB-1412X) use with 6052A cover

4шт.

O8901AB1

PLATE - oil deflector

1шт.

O10609AB

X

COUPLING - hydraulic pump drive

1шт.

3764AA

X

SCREEN ASSEMBLY - hydraulic pump intake

1шт.

3765AA

DRIVE GEAR AND SHAFT - hydraulic pump

1шт.

3766A

IDLER GEAR AND SHAFT - hydraulic pump

1шт.
