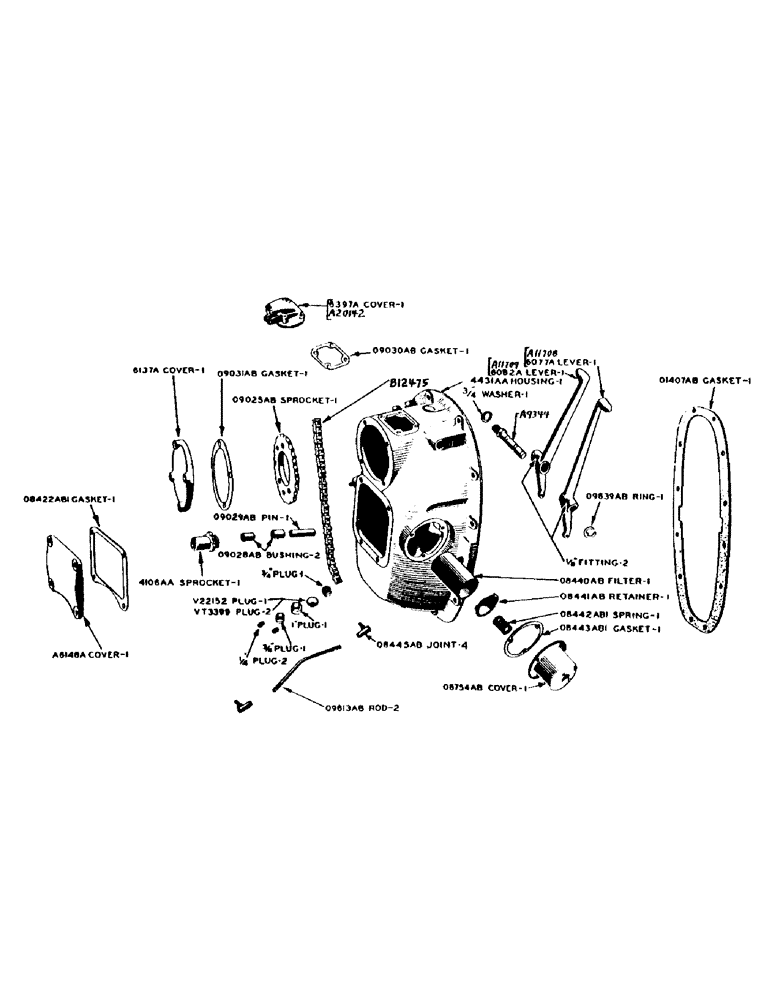

Запчасти Case IH 500-SERIES (104) - HYDRAULIC CONTROL UNIT, MAIN HOUSING AND PUMP DRIVE (08) - HYDRAULICS

A9344

STUD - valve control hand lever (See O8578AB)

1шт.

3/4" lockwasher

1шт.

A11708

LEVER - valve control hand outer (Comfort seat) See 6077A

1шт.

#5000 Lincoln fitting

1шт.

A11709

LEVER - valve control hand inner (Comfort seat) See 6082A

1шт.

#5000 Lincoln fitting

1шт.

A20142

COVER - main housing top (Comfort seat) See 6397A

1шт.

B12475

CHAIN (AG)

CHAIN - hydraulic pump drive (19 links and 1 connecting link of no. 50 roller chain)

2шт.

B12505

LINK

- connecting, for O8435AB roller chain

1шт.

B12506

LINK

- offset, for O8435AB roller chain

1шт.

B12507

CHAIN (AG)

LINK - roller, for O8435AB roller chain

1шт.

6077A

LEVER - valve control hand, outer

1шт.

1/8" str. Lincoln fitting, no. 5000

1шт.

6082A

LEVER - valve control hand, inner

1шт.

1/8" str. Lincoln fitting, no. 5000

1шт.

6137A

COVER - for opening, when PTO clutch is not used

1шт.

1/2" x 1-3/4" hex hd. cap screw, N.C. thrd., with lockwasher

4шт.

A6148A

COVER - for opening when hydraulic valve is not used

1шт.

1/2" x 1-1/2" hex hd. cap screw, N.C. thrd., with lockwasher

4шт.

6236A

HOUSING - use 4431AA

1шт.

6397A

COVER - main housing top (Standard seat) See A20142

1шт.

1/2" x 1-1/4" hex hd. cap screw, N.C. thrd., with lockwasher

3шт.

1/2" x 2-1/4" hex hd. cap screw, N.C. thrd., with lockwasher

1шт.

O1407AB

X

GASKET - hydraulic main housing

1шт.

O8422AB1

X

GASKET - for A6148A cover

1шт.

O8440AB

X

FILTER - hydraulic pump oil

1шт.

O8441AB

X

RETAINER - hydraulic pump filter

1шт.

O8442AB1

X

SPRING - hydraulic pump filter

1шт.

O8443AB1

X

GASKET - hydraulic pump filter cover

1шт.

O8445AB

X

BALL JOINT - hydraulic valve control rod

4шт.

5/16" std. lockwasher

4шт.

O8578AB1

STUD - valve control hand lever (Use A9344)

1шт.

3/4" std. lockwasher

1шт.

O8754AB

COVER - hydraulic pump filter

1шт.

3/8" x 3/4" hex hd. cap screw, N.C. thrd.

3шт.

3/8" internal tooth Shakeproof lockwasher, no. 1220

3шт.

O9025AB

SPROCKET - hydraulic pump drive

1шт.

3/8" x 3/4" hex hd. cap screw, N.F. thrd., with lockwasher

4шт.

O9028AB

X

BUSHING - for 4106AA sprocket

2шт.

O9029AB

X

PIN - hydraulic pump driven sprocket bearing

1шт.

O9030AB

X

GASKET - main housing top cover

1шт.

O9031AB

X

GASKET - PTO clutch opening cover

1шт.

O9613AB

ROD - hydraulic valve control

2шт.

5/16" hex jam nut, N.F. thrd.

4шт.

O9639AB

X

"E" RING - for O8578AB1 and A9344 stud

1шт.

V22152

CAP

PLUG - Welch, hydraulic pump housing (1-1/2" dia.)

1шт.

VT3399

PLUG - Welch, hydraulic pump housing (1" dia.)

2шт.

4106AA

X

SPROCKET - driven, with bushings, hydraulic pump

1шт.

4431AA

HOUSING - PTO and hydraulic pump (Consists of: 1 - 6236A housing, 1 - O9029AB pin, 2 - 1/4", 1 - 3/4" and 1 - 1" sq. hd. pipe plug, 1 - 3/4" Lisle magnetic no. 403KQ) sq. hd. pipe plug, 1 - V22152 and 2 - VT3399 Welch plugs

1шт.

1/2" x 1-1/4" hex hd. cap screw, N.C. thrd., with lockwasher

11шт.

1/2" x 2" hex hd. cap screw, N.C. thrd., with lockwasher

1шт.
