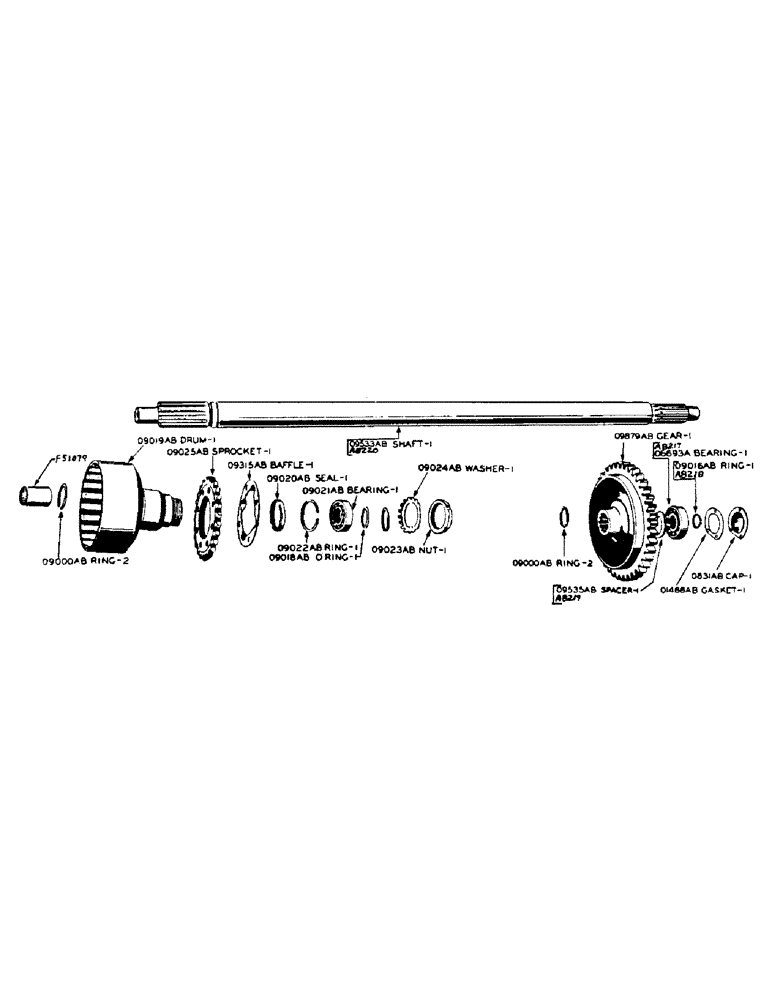

Запчасти Case IH 500-SERIES (103) - PTO AND HYDRAULIC DRIVE (08) - HYDRAULICS

A8217

BEARING, ROLLER, CYL

BEARING - PTO shaft, front end (Hyatt no. U1206-TM) See O6693A

1шт.

A8218

SNAP RING,#118, Ext

Ring, Snap, , PTO shaft, front end, use w/A8217 bearing (See O9016AB) #118, Ext

1шт.

A8219

SPACER - PTO shaft, front end use w/A8217 bearing (See O9533AB)

1шт.

A8220

SHAFT - PTO and hydraulic drive (See O9533AB)

1шт.

F51079

NEEDLE BEARING

BEARING - pilot, PTO and hydraulic drive shaft rear (Torrington #TH1616-OH)

1шт.

O6693A

BEARING - PTO shaft, front end. (New Departure no. 1305)

1шт.

O831AB

CAP - power take-off, front

1шт.

3/8" x 5/8" hex hd. cap screw, N.C. thrd., with lockwasher

3шт.

O1488AB

X

GASKET - for O831AB front cap

1шт.

O9000AB

X

SNAP RING - for PTO drive gear and clutch drum, on PTO and hydraulic drive shaft

2шт.

O9016AB

X

SNAP RING - PTO and hydraulic drive shaft, front end

1шт.

O9018AB

X

"O" RING - PTO and hydraulic drive shaft

1шт.

O9019AB

DRUM - PTO clutch

1шт.

O9020AB

OIL SEAL - PTO clutch drum

1шт.

O9021AB

BEARING - PTO clutch drum (New Departure no. 7-3L10)

1шт.

O9022AB

X

SNAP RING - PTO clutch drum bearing

1шт.

O9023AB

X

NUT - lock, PTO clutch drum bearing

1шт.

O9024AB

WASHER - PTO clutch drum bearing locknut

1шт.

O9025AB

SPROCKET - hydraulic pump drive (26 tooth)

1шт.

3/8" x 3/4" hex hd. cap screw, N.F. thrd., with lockwasher

4шт.

O9315AB

BAFFLE - PTO clutch oil, Serial Range: (Bolts-O9025AB)

1шт.

O9533AB

X

SHAFT - PTO and hydraulic drive (Use 1 - A8217, 1 - A8218, 1 - A8219 and 1 - A8220)

1шт.

O9535AB

SPACER - PTO drive shaft, front end

1шт.

O9879AB

GEAR - power take-off driven. (40 tooth)

1шт.
