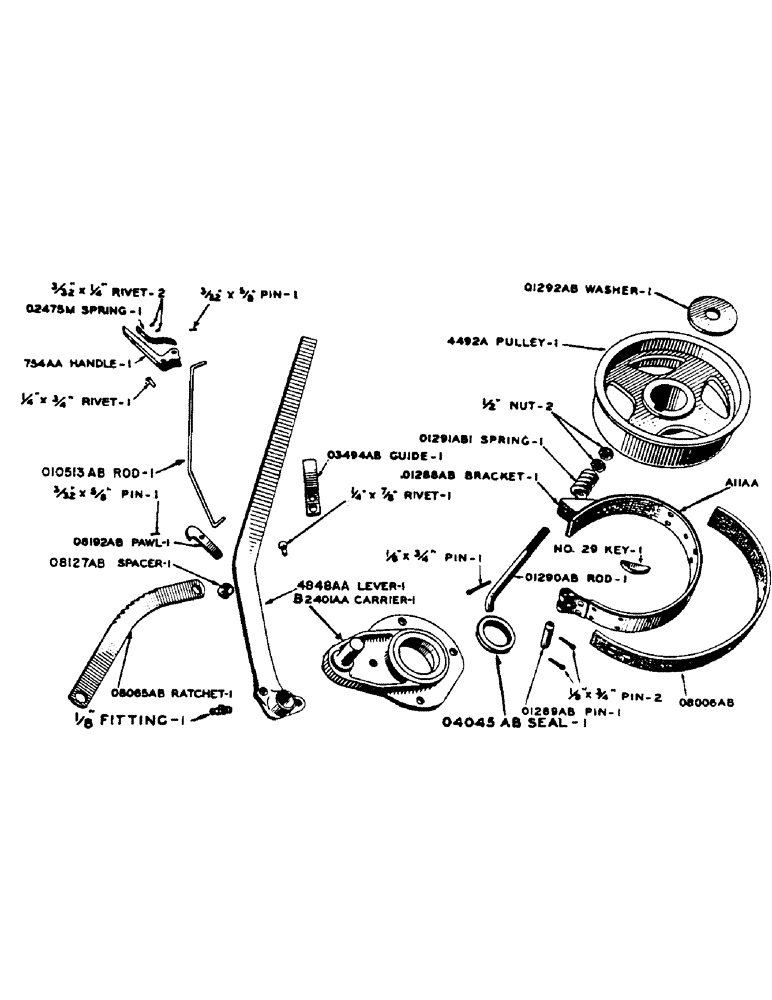

Запчасти Case IH 500-SERIES (055) - HAND BRAKE (07) - BRAKES

4492A

PULLEY - transmission brake

1шт.

No. 29 Woodruff key

1шт.

B5706A

CARRIER - (Use B2401AA)

1шт.

O1288AB

BRACKET - brake band

1шт.

1/4" x 1/2" wagon box head rivet

3шт.

O1289AB

PIN - brake band

1шт.

1/8" x 3/4" cotter pin

2шт.

O1290AB

ROD - brake band adjusting

1шт.

1/8" x 3/4" cotter pin

1шт.

1/2" hex jam nut, N.C. thread

2шт.

O1291AB1

SPRING - brake band adjusting rod

1шт.

O1292AB

WASHER - thrust, brake pulley

1шт.

1/2" x 1" hex head cap screw, N.c. thread with lockwasher

1шт.

O3494AB

GUIDE - hand brake lever

1шт.

5/16" x 1" hex head cap screw, N.F. thread with nut and lockwasher

2шт.

O4045AB

X

OIL SEAL - for B2401AA carrier

1шт.

O8006AB

LINING - brake band (18-7/8" long)

1шт.

9/64" x 3/8" brass tubular rivet, no. 2561

22шт.

O8065AB

RATCHET - hand brake lever

1шт.

1/2" x 2-1/2" hex head cap screw, N.C. thread

1шт.

O8127AB

SPACER - hand brake ratchet

1шт.

O8192AB

PAWL - hand brake lever

1шт.

1/4" x 7/8" round head rivet

1шт.

O10513AB

ROD - hand brake lever

1шт.

3/32" x 5/8" cotter pin

2шт.

O2475M

SPRING - hand brake lever pawl

1шт.

3/32" x 1/4" flat head rivet

2шт.

A11AA

BAND - brake, with lining

1шт.

754AA

HANDLE - brake lever, with spring

1шт.

1/4" x 3/4" round head rivet

1шт.

B2401AA

CARRIER - sliding gear shaft bearing, R.H., with pin for hand brake lever

1шт.

1/2" x 1-1/4" hex head cap screw, N.C. thread with lockwasher

4шт.

3/16" x 1-1/2" cotter pin

1шт.

4848AA

LEVER - hand brake (Consists of: lever with 1 - 754AA, 1 - O3494AB, 1 - O8192AB and 1 - O10513AB)

1шт.

1/8" str. Lincoln fitting no. 5000

1шт.
